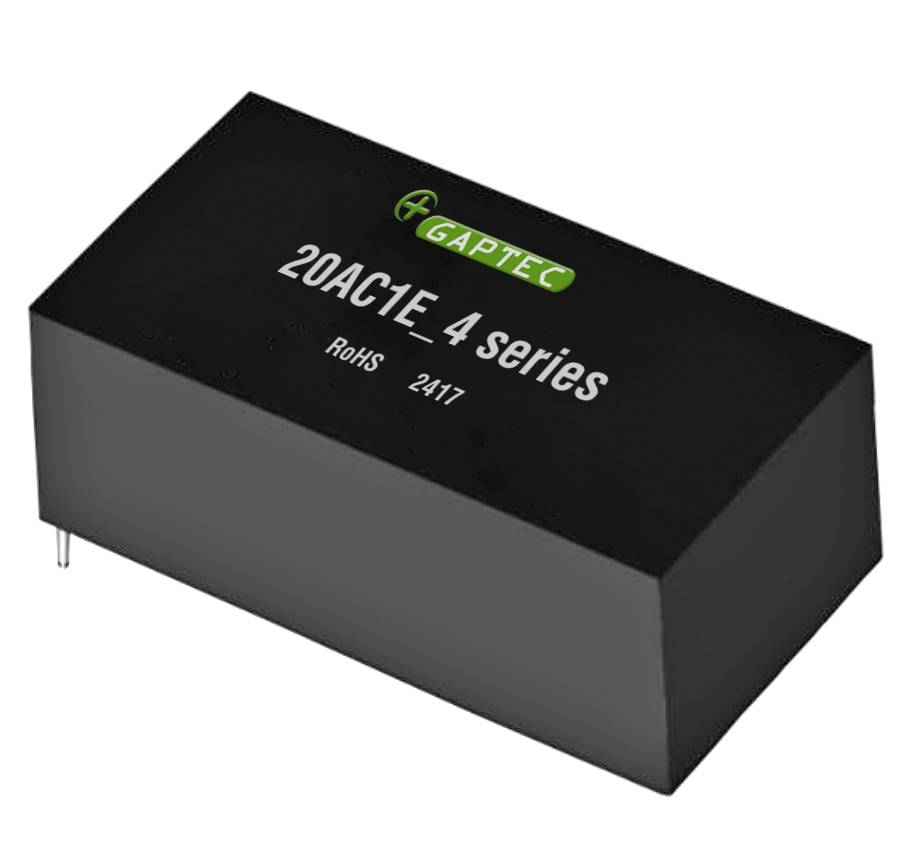

Gaptec 20AC1E_09S4 AC/DC converter 9 V DC 2222 mA 20 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
AC/DC converter output: 9V 85-265VAC, 120-380VDC
- Output 9 V DC / 2222 mA
- Power 20 W
Technical specifications
- Product type
AC/DC converter
- Input voltage (max.)
265 V AC
380 V DC
- Max. output current
2222 mA
- Output current (max.) - rounded
2.22 A
- Min. input voltage
85 V AC
120 V DC
- Dim
(L x W x H) 53.8 x 28.8 x 23.5 mm
- Output voltage (max.)
9 V DC
20 W
- Operating temperature (max.)
75 °C
- Operating temperature (min.)
-40 °C
- Weight
50 g
- Width
28.8 mm
- Height
23.5 mm
- Length
53.8 mm
- Type
20AC1E_4
- Enclosure
DIP 4
- Efficiency
83 %
- Insulation voltage
4 kV
Documents & Downloads
Datasheet
Datasheet 3354332 Gaptec 20AC1E_09S4 AC/DC converter 9 V DC 2222 mA 20 W
User & Safety Instructions
User & Safety Instructions 3354332 Gaptec 20AC1E_09S4 AC/DC converter 9 V DC 2222 mA 20 W
Description
AC/DC converter output: 9V 85-265VAC, 120-380VDC
