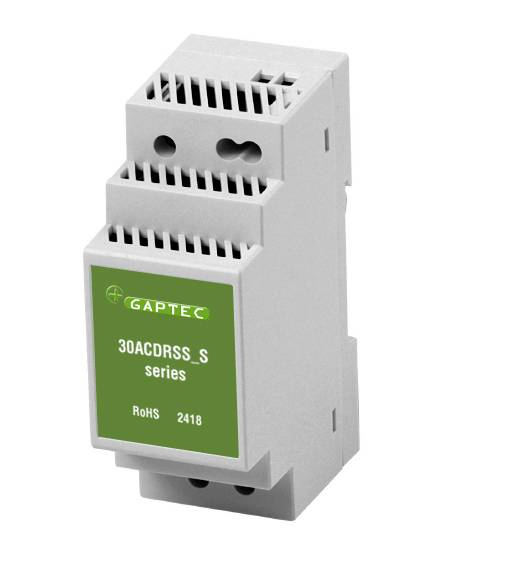

Gaptec 30ACDRSS_12S4 Rail mounted PSU (DIN) 2 A 24 W Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
90 V AC
128 V DC
- Input voltage (max.)
264 V AC
370 V DC
- Max. output current
2 A
- Output current (max.) - rounded
2 A
24 W
- Connection
Clamp
- Dim
(L x W x H) 58.0 x 35.0 x 90.0 mm
- Weight
120 g
- Output voltage (max.)
12 V DC
- Operating temperature (max.)
70 °C
- Operating temperature (min.)
-20 °C
- Manufacturer part #
30ACDRSS_12S4
- Content
1 pc(s)
- Width
35.0 mm
- Height
90.0 mm
- Length
58.0 mm
- Type
30ACDRSS_4
- Efficiency
88 %
- Insulation voltage
4 kV
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3355099 Gaptec 30ACDRSS_12S4 Rail mounted PSU (DIN) 2 A 24 W Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3355099 Gaptec 30ACDRSS_12S4 Rail mounted PSU (DIN) 2 A 24 W Content 1 pc(s)
Description
AC-DC DIN-rail converter
