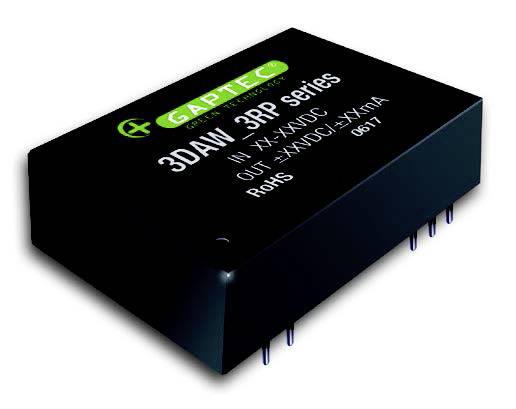

Gaptec 3DAW_2405S3RP DC/DC converter 600 mA 3 W Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
DC/DC converter
- Type
3DAW_3RP
- Min. input voltage
24 V DC
- Input voltage (max.)
24 V DC
- Max. output current
600 mA
- Output current (max.) - rounded
600 mA
3 W
- Insulation voltage
3 kV
- Enclosure
DIP 24 (7-pin)
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 31.8 x 20.3 x 10.2 mm
- Height
10.2 mm
- Length
31.8 mm
- Width
20.3 mm
- RoHS-compliant
Yes
- Output voltage (max.)
5 V DC
- Weight
12.8 g
- Content
1 pc(s)
- Efficiency
81 %
- Max. operating temperature (derating)
85 °C
- Min. operating temperature (derating)
-40 °C
Documents & Downloads
Datasheet
Datasheet 3355254 Gaptec 3DAW_2405S3RP DC/DC converter 600 mA 3 W Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3355254 Gaptec 3DAW_2405S3RP DC/DC converter 600 mA 3 W Content 1 pc(s)
Description
Isolated DC-DC converter module 1 output 5V 600mA - - 5V input
