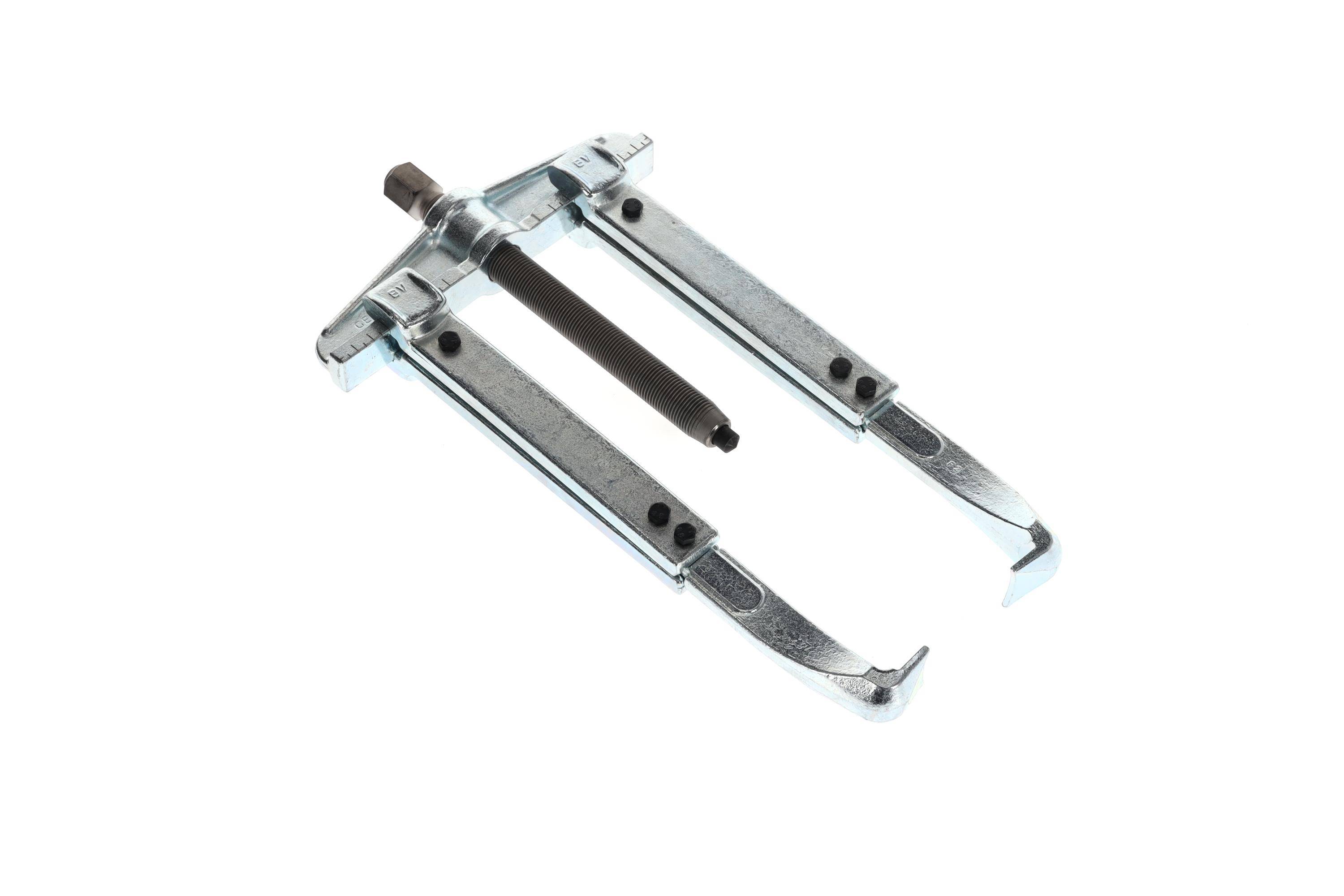

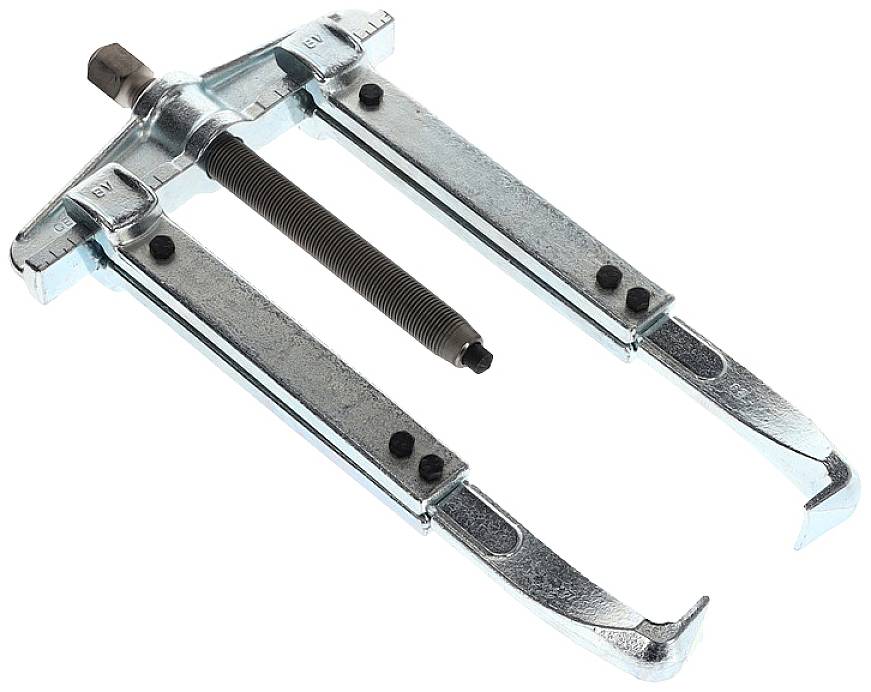

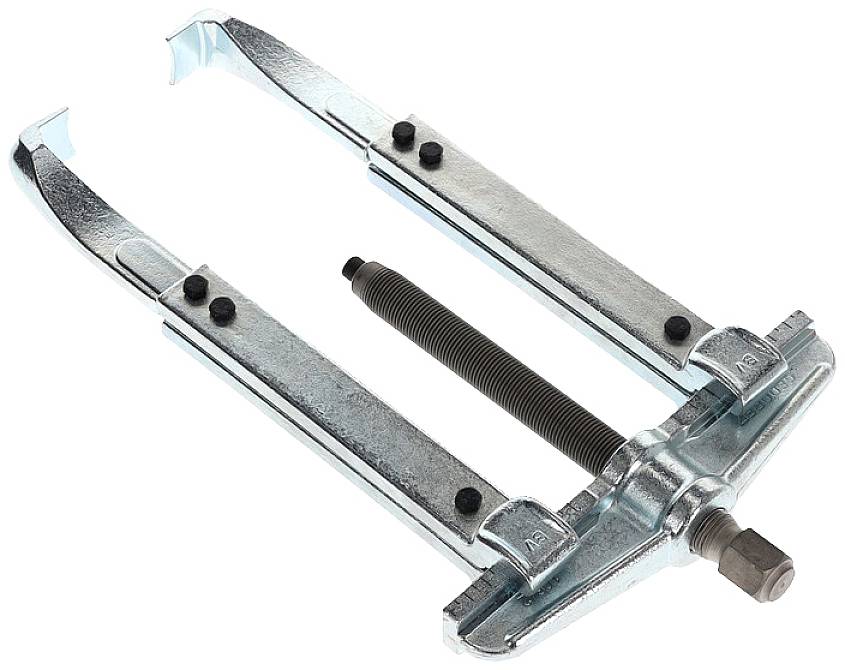

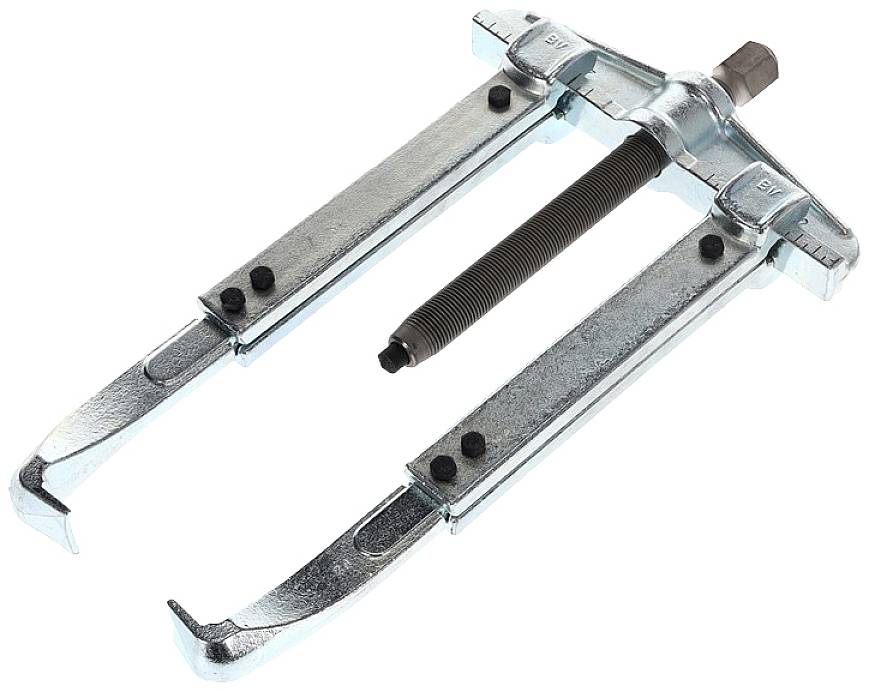

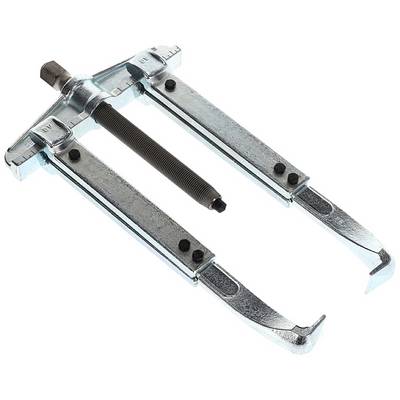

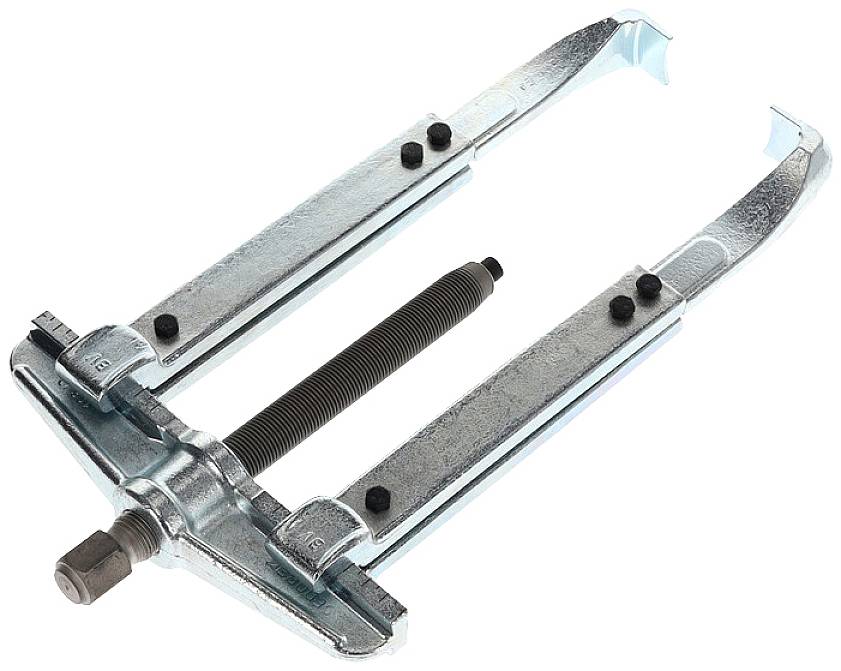

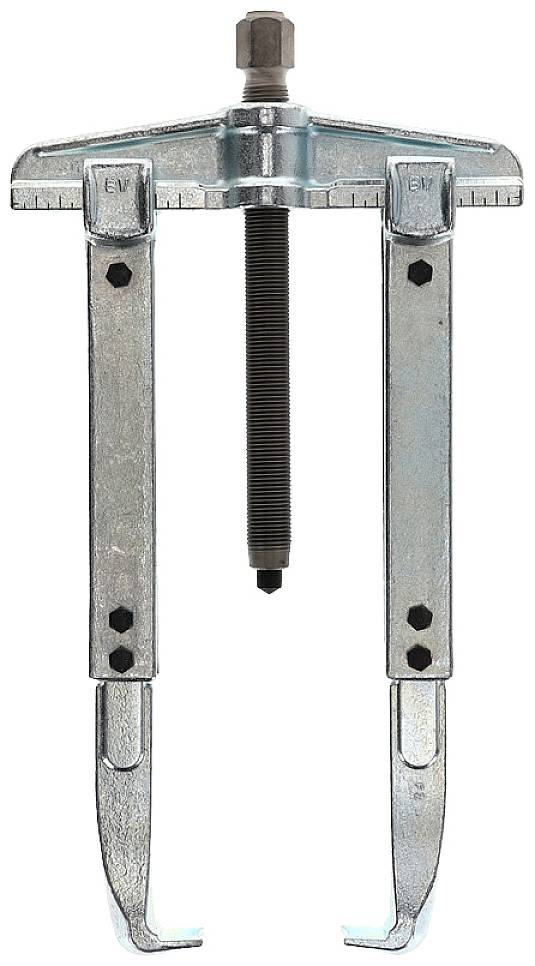

1.06/2-3 - GEDORE - Universal puller, 2-arm pattern 160x300 mm Gedore 8108510
EAN:
Part number:
Item no:
Number
Total (€ 155.45 / piece)
€ 155.45
plus VAT.
Only 1 Piece(s) available
Technical specifications
- 1.06/2-3-GEDORE-universal puller 2-arm 160 x 300 mm
- Clamping width 160 mm outer, 80-220 mm inner
- Clamping depth 300 mm
- Strong, die-forged design
- The setting scale to evenly adjust the deduction hooks. Also allows highest withdrawal forces a centerd and power-optimized disconnect
- Extended deduction hook
- By changing the hook can be used as an external and internal puller
- Replaceable hooks for multiple clamping depth available
- Can be retrofitted with hydraulic spindle
- Traverse can be combined with other spindle/hook versions and lengths from the GEDORE Puller Kit
- Clamping range
160 mm
- Tension/pressure capacity
5 t
- Content
1 pc(s)
- Hooks
2
- Product type
Puller
- Span depth (max.)
300 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1908011 1.06/2-3 - GEDORE - Universal puller, 2-arm pattern 160x300 mm Gedore 8108510
Information
Information 1908011 1.06/2-3 - GEDORE - Universal puller, 2-arm pattern 160x300 mm Gedore 8108510
Description
Features
- Strong drop forged design
- Scale for uniform adjustment of the puller legs. Allows centred pulling, with optimised application of force, even when extremely high pulling forces are required
- Extended legs
- By reversing the legs, this tool can be used as an internal or external puller
- Extra or replacement legs increase versatility
- Upgradeable with hydraulic spindle (see table)
