Gedore 1101-1.31/0-H Puller set Clamping range (details) 8 mm to 30 mm
EAN:
Part number:
Item no:
Highlights & Details
Gedore 1101-1.31/0-H Puller set Clamping range (details) 8 mm to 30 mm
- Inner extraction set with support and slide hammer
- For pulling out components in the casing such as ball bearings, bushes, etc.
- Made in Germany.
Technical specifications
- Clamping range
8 mm to 30 mm
- Dim
(L x W x H) 367 x 316 x 72 mm
- Weight
3.5 kg
- Content
1 Set
- Product type
Puller set
- Width
316 mm
- Height
72 mm
- Length
367 mm
- Span width (max.)
30 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3220609 Gedore 1101-1.31/0-H Puller set Clamping range (details) 8 mm to 30 mm
Description

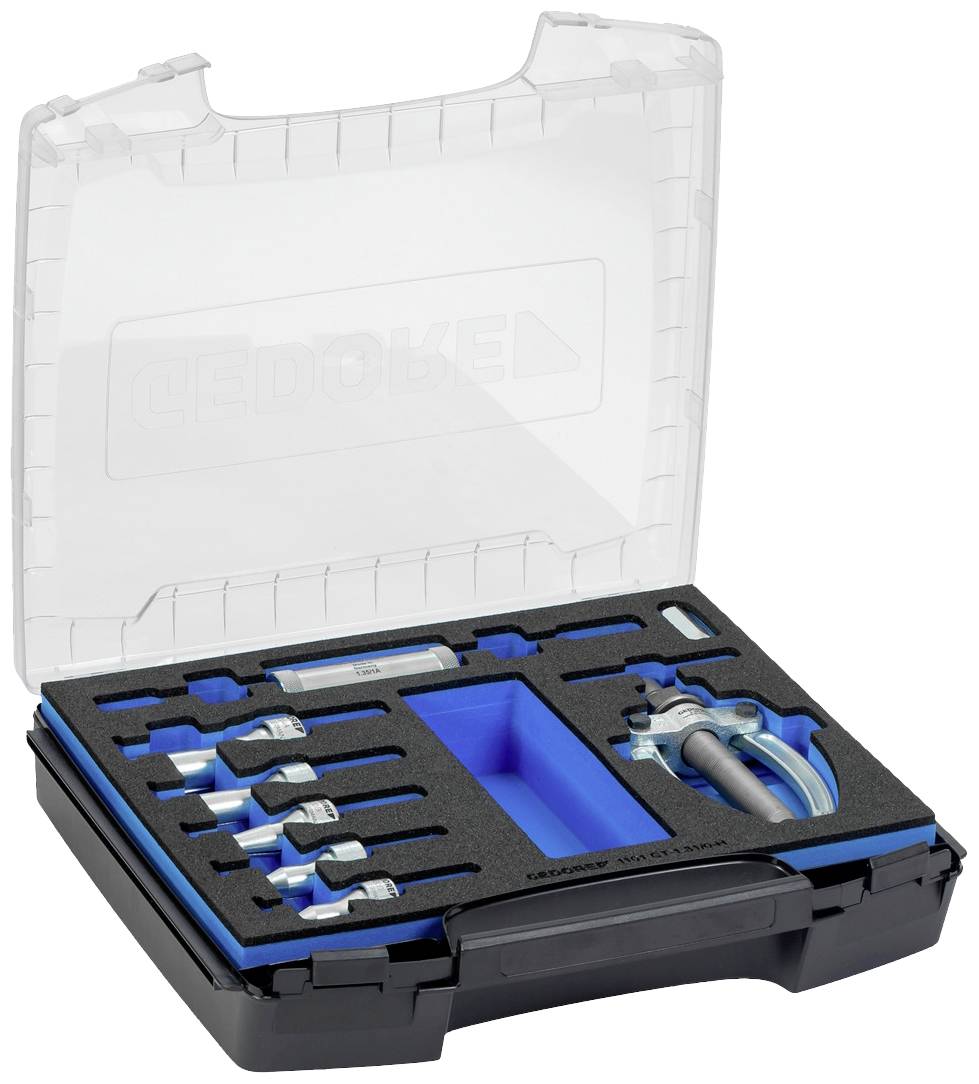

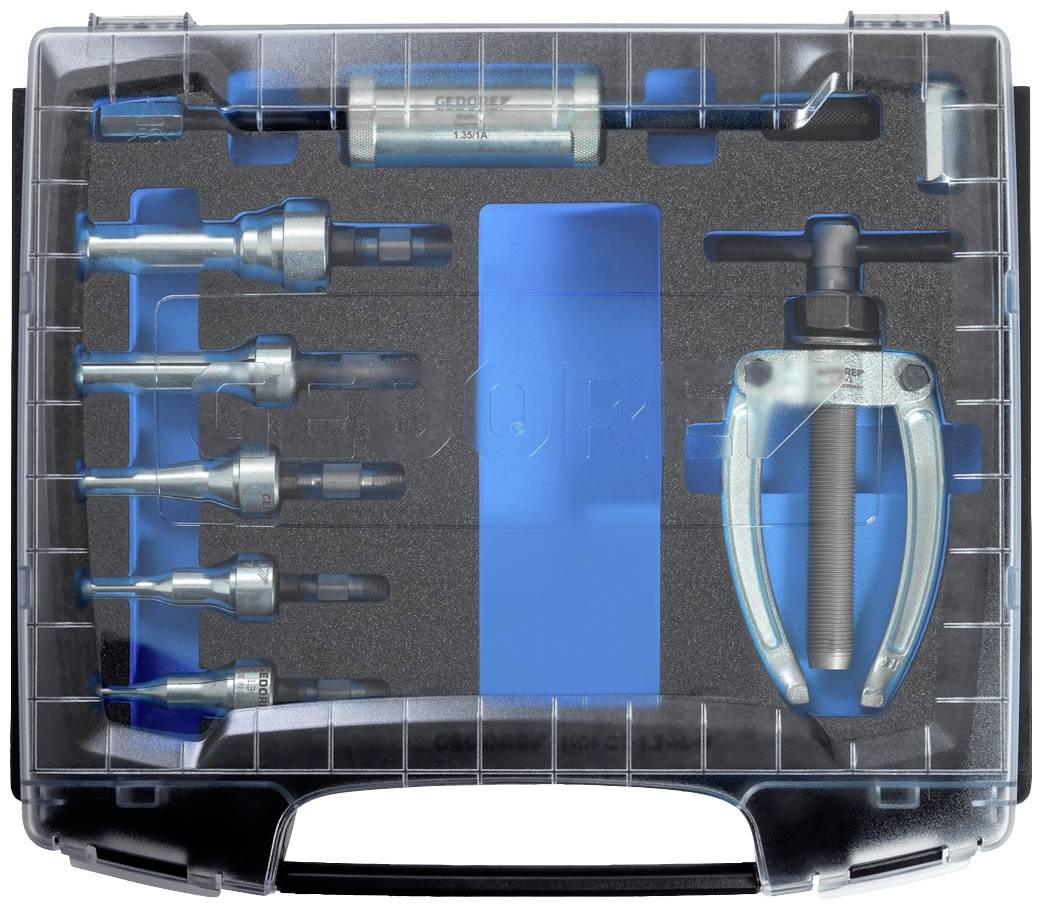

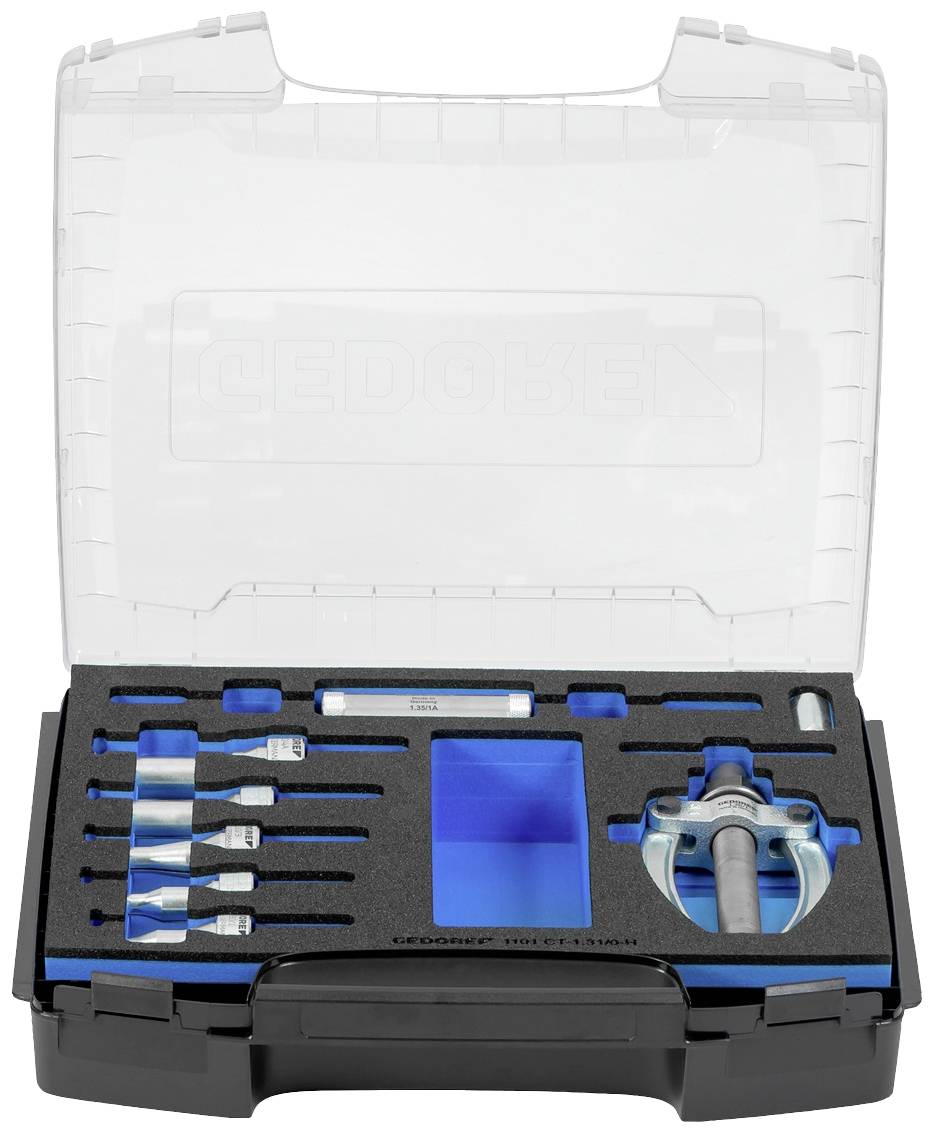

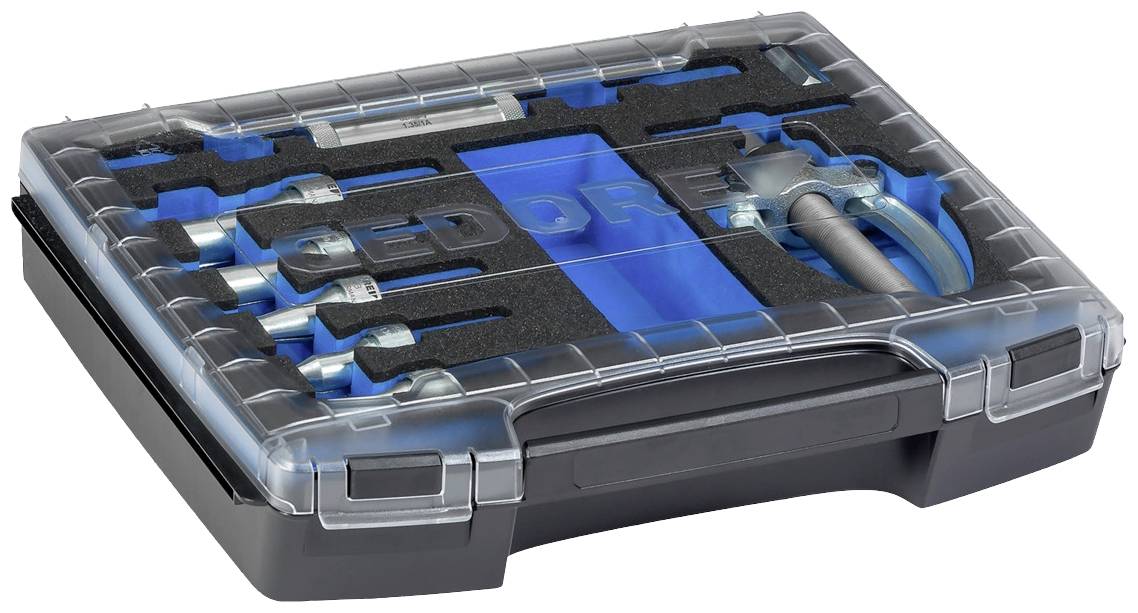

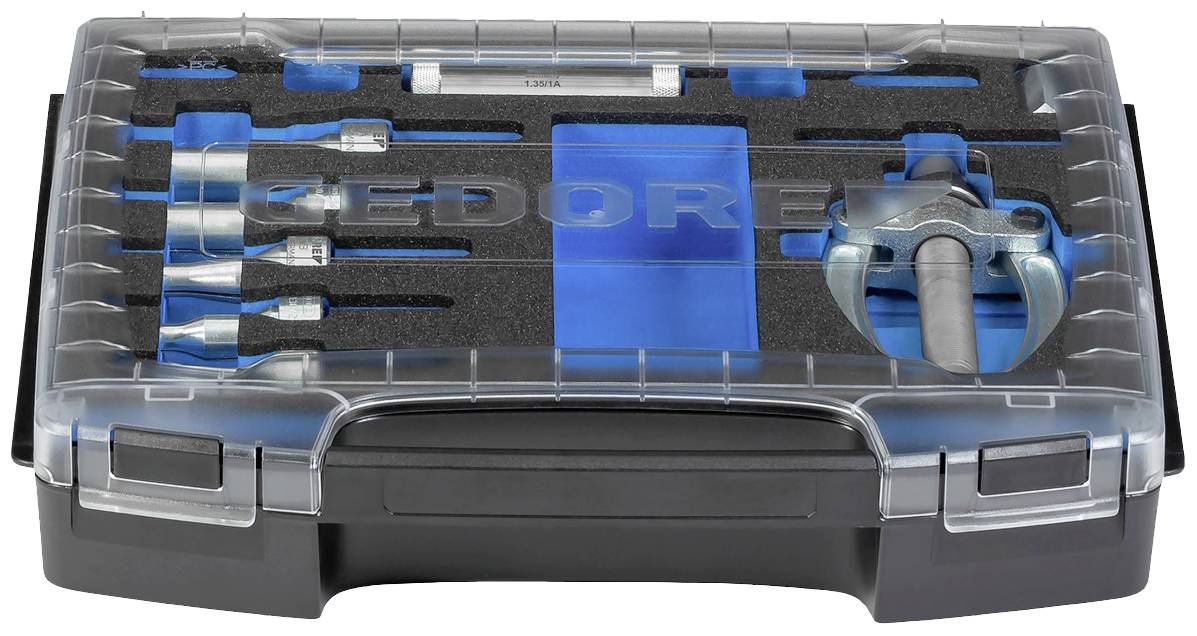

Inner extraction set with support and slide hammer. For removing components in the casing such as ball bearings, bushes, etc. Made in Germany. Can be used flexibly through counter-support or slide hammer. With check-tool insert for quick identification of missing tools. Padding in the drawers with the minimum dimensions 340 x 260 x 60 mm can be used. Tools completely countersunk in the foam, so the equipped inlay can be stacked. In Gedore i-BOXX® 72 No. 1101 L
This text is machine translated.
This text is machine translated.
Features
- Can be used flexibly through counter-support or slide hammer
- With check-tool insert for quick identification of missing tools
- Padding in the drawers with the minimum dimensions 340 x 260 x 60 mm can be used
- Tools completely countersunk in the foam, so the equipped inlay can be stacked
- In Gedore i-BOXX® 72 No.
- 1101 L

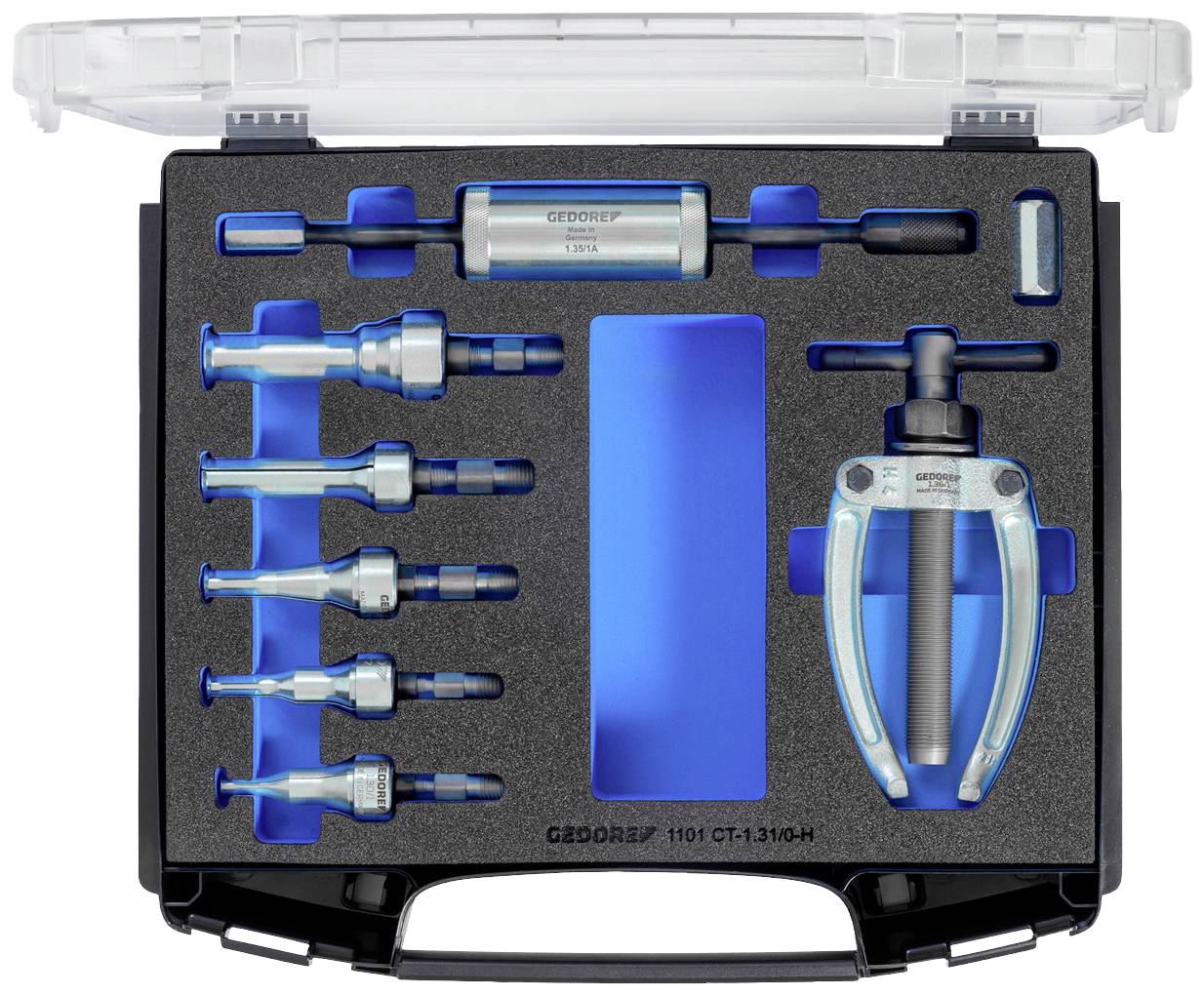

Scope of delivery
- 1.30/1 inner puller for Ø 8 mm
- 1.30/2 inner puller for Ø 12-15 mm
- 1.30/3 inner puller for Ø 14-19 mm
- 1.30/4 inner puller for Ø 19-25 mm
- 1.30/4A Inner puller for Ø 24-30 mm
- 1.36/1 Support for 1.30/0 - 1.30/5
- 1.35/1A Sliding hammer 700g for 1.30/0 - 1.30/5
- 1101 L Gedore i-Boxx 72 Small parts-Cases
- EI-1101 CT-1.31/0-H check tool module, empty.
