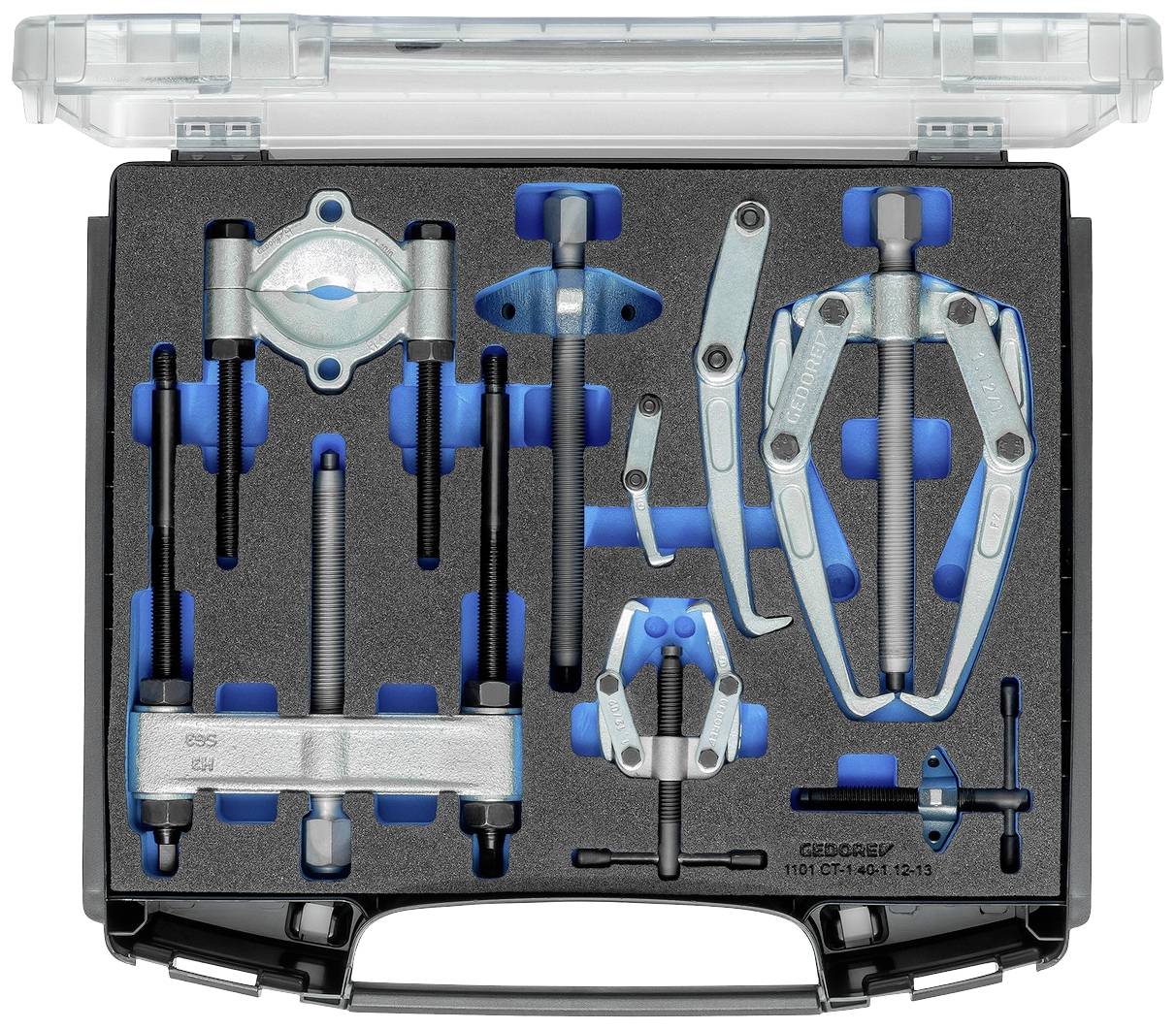

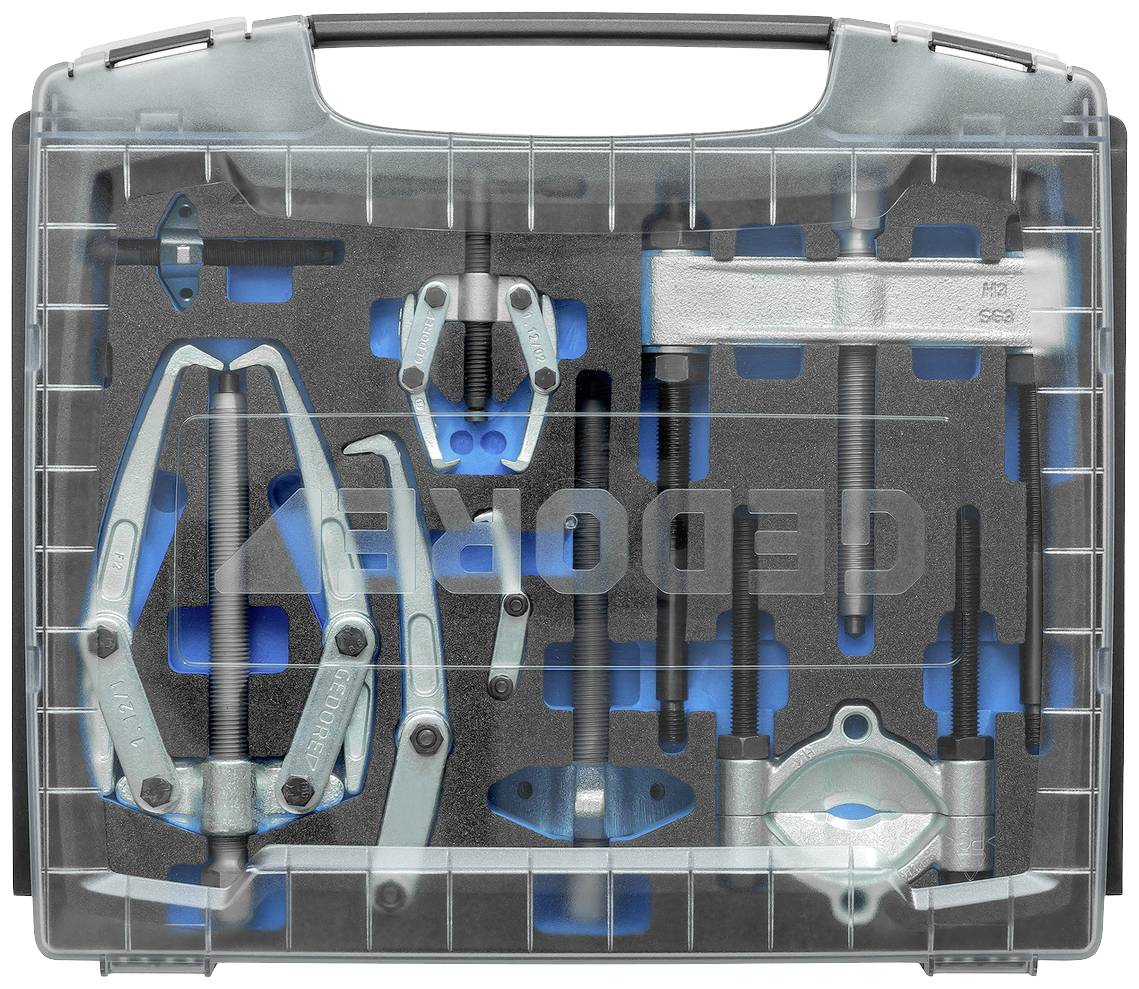

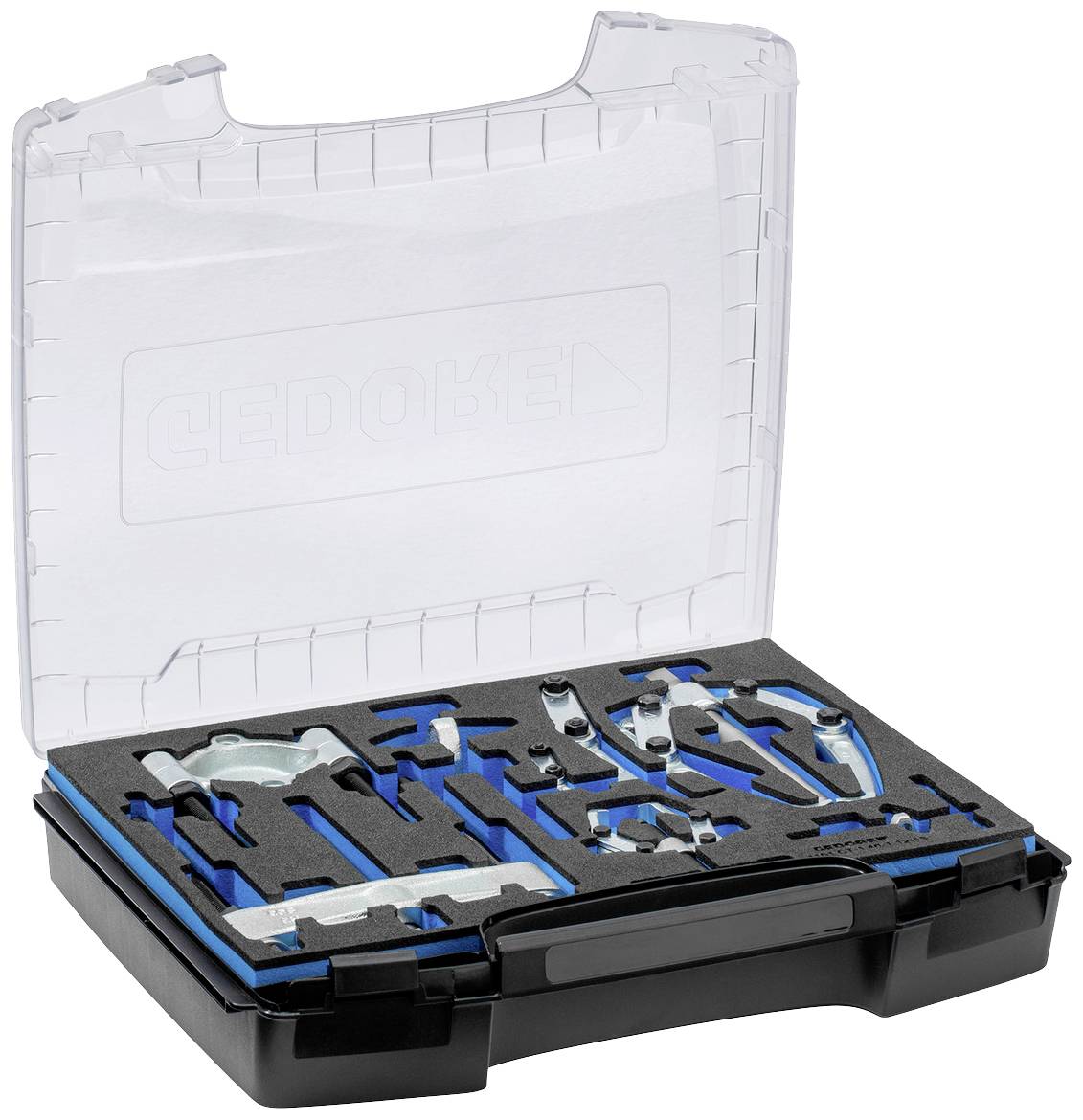

Gedore 1101-1.40-1.12-13 Puller set
EAN:
Part number:
Item no:
Highlights & Details
Gedore 1101-1.40-1.12-13 Puller set
- 2- and 3-arm separation and outside puller with self-pressing hook
- For removing tight fitting taper roller bearings, ball bearings, inner races, battery clips and other thin-walled parts up to max. Diameter 70 mm and an installation depth of max. 125 mm
Technical specifications
- Dim
(L x W x H) 316 x 367 x 72 mm
- Weight
4 kg
- Content
1 Set
- Product type
Puller set
- Width
367 mm
- Height
72 mm
- Length
316 mm
- Span width (max.)
70 mm
- Span depth (max.)
125 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3220711 Gedore 1101-1.40-1.12-13 Puller set
Description
2- and 3-arm separation and outer puller with self-pressing hook . For removing tight fitting taper roller bearings, ball bearings, inner races, battery clips and other thin-walled parts up to max. diameter 70 mm and an installation depth of max. 125 mm. Made in Germany. Cutting blades can be used on both sides. The puller can be extended with other accessories such as 1.81/10 adapters. Flexible use with 2 and 3-arm components. With check-tool insert for quick identification of missing tools. Padding in the drawers with the minimum dimensions 340 x 260 x 65 mm can be used. Tools completely countersunk in the foam, so the equipped inlay can be stacked. In Gedore i-BOXX® 72 No. 1101 L. Dimension: B 367 x T 316 x H 72 mm
This text is machine translated.
This text is machine translated.
Features
- ADE in Germany
- Cutting blades can be used on both sides
- The puller can be made with other accessories such as, for example
- 1.81/10 adapters
- Flexible use with 2 and 3-arm components
- With check-tool insert for quick identification of missing tools
- Padding in the drawers with the minimum dimensions 340 x 260 x 65 mm can be used
- Tools completely countersunk in the foam, so the equipped inlay can be stacked
- In Gedore i-BOXX® 72 No.
- 1101 L
- Dimensions: W 367 x D 316 x H 72 mm
Scope of delivery
- 1x 114/104 2-arm traverse/head
- 1x 115/104 3-arm traverse/head
- 3x 112/1-120 Pull-off hooks, complete
- 2x 1.1406155 complete spindle M14x1.5X155mm
- 1x 112/0104 2-arm traverse/head
- 1x 113/0104 3-arm traverse/head
- 3x 112/02-040 Pull-off hooks, complete
- 2x 1.100660 complete spindle M10x1.5x60mm
- 1x 1.40/0 separating device 5-60 mm
- 1x 1.38/0 Pulling away device 40-120x125mm
- EI-1101-1.40-1.12-13 CT-lining empty 342x262x60mm
- + 1101 L 160
- Gedore i-BOXX 72, empty.
