Gedore 1220160 Puller Clamping range (details) 200 -350 mm No. of hooks 2
EAN:
Part number:
Item no:
Number
Total (€ 242.86 / piece)
€ 242.86
plus VAT.
Only 6 Piece(s) available
Technical specifications

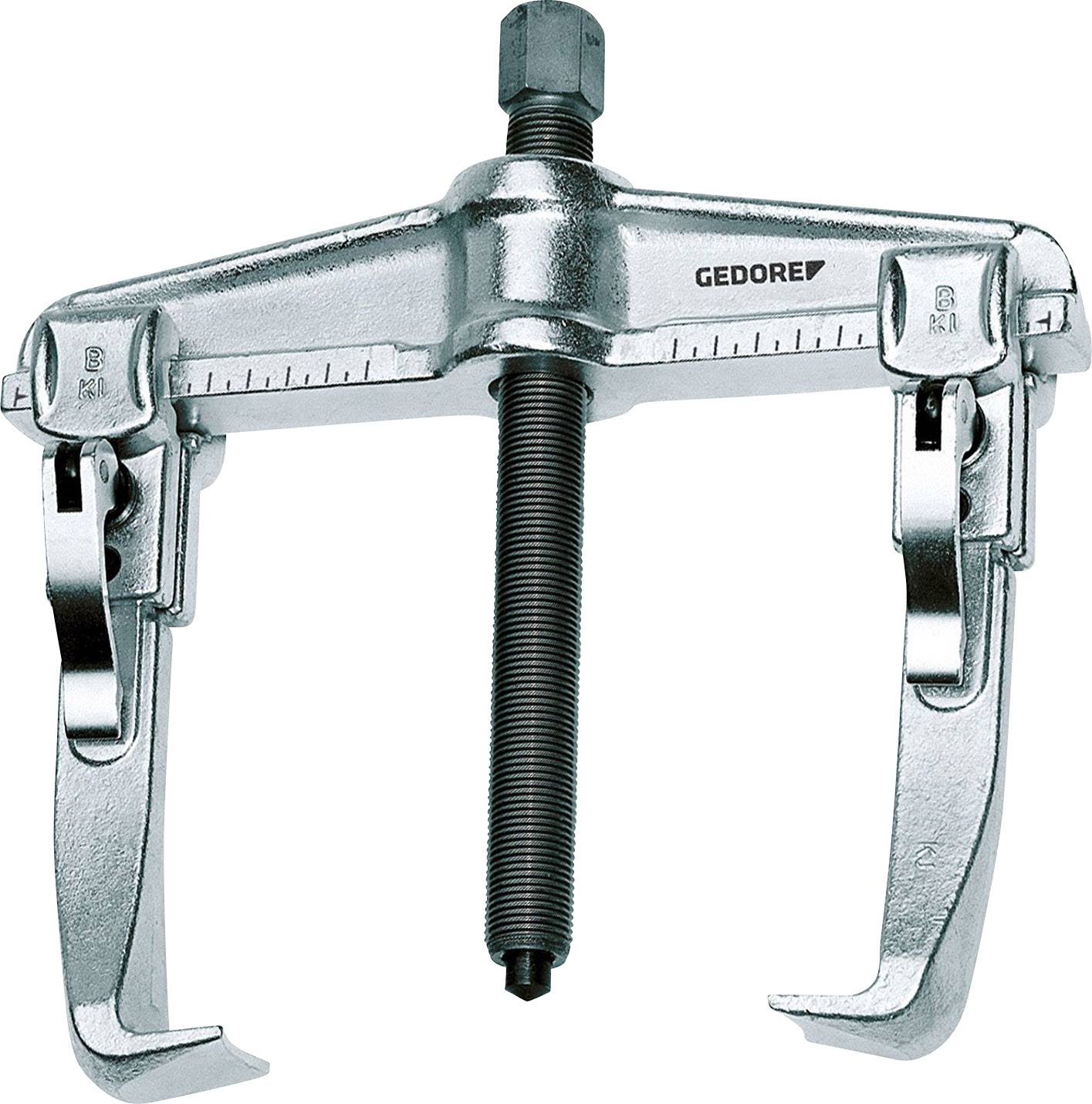

- 1.06/3A-E - Gedore - quick action puller 2-arm 350x200 mm
- High-quality industrial for safe work
- Strong, ergonomically shaped traverse
- Lasered setting scale for an optimum adjustment of the pull-off hooks
- Increased safety thanks to beam and hook forged with annealing
- Patented quick adjustment for simple, safe setting and alignment - without the use of tools
- Self-supporting hooks with T-profile for a positive connection
- Can be used as inner puller by changing the hooks
- Nitrocarburised spindle surface, resistant to wear and corrosion
- Spindle remains free-moving and clean - grease or oil not necessary
- Cross bars can be combined with other spindle/hook designs and lengths of the Gedore puller kit
- Clamping range
200 -350 mm
- Tension/pressure capacity
7.5 t
- Content
1 pc(s)
- Hooks
2
- Product type
Puller
- Span width (max.)
350 mm
- Span depth (max.)
200 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1908027 Gedore 1220160 Puller Clamping range (details) 200 -350 mm No. of hooks 2
Information
Information 1908027 Gedore 1220160 Puller Clamping range (details) 200 -350 mm No. of hooks 2
Description
Features
- The tried and tested model for the safe and quick removal of pulleys, wheels, ball bearings, etc.
- Strong drop forged pattern
- Scale for uniform adjustment of the puller legs. Allows centred pulling, with optimised application of force, even when extremely high pulling forces are required
- By reversing the legs, this tool can be used as an internal or external puller
- Exchangeable legs for several clamping reaches available as accessories
- Quick release legs for fast, easy set-up and adjustment
- Upgradeable with hydraulic spindle (see table)
