Gedore 1227459 Puller Clamping range (details) 200 mm No. of hooks 3
EAN:
Part number:
Item no:
Number
Total (€ 193.27 / piece)
€ 193.27
plus VAT.
Only 1 Piece(s) available
Technical specifications
- 1.07/2A-E - Gedore - Quick action puller 3-arm 200x150 mm
- Max. Span width 200 mm
- Clamping depth 150 mm
- Fast and uncomplicated adjustment and re-adjustment by quick release hook
- Can be used as an external or internal puller by changing the hook
- Patented quick adjustment for simple, safe setting and alignment - without the use of tools
- Can be used as inner puller by changing the hooks
- Nitrocarburised spindle surface, resistant to wear and corrosion
- Spindle remains free-moving and clean - grease or oil not necessary
- Cross bars can be combined with other spindle/hook designs and lengths of the Gedore puller kit
- Clamping range
200 mm
- Tension/pressure capacity
5 t
- Weight
4.0 kg
- Content
1 pc(s)
- Hooks
3
- Product type
Puller
- Span depth (max.)
150 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1908093 Gedore 1227459 Puller Clamping range (details) 200 mm No. of hooks 3
Information
Information 1908093 Gedore 1227459 Puller Clamping range (details) 200 mm No. of hooks 3
Description
Features
- Quick release legs for fast, easy set-up and adjustment
- By reversing the legs, this tool can be used as an internal or external puller

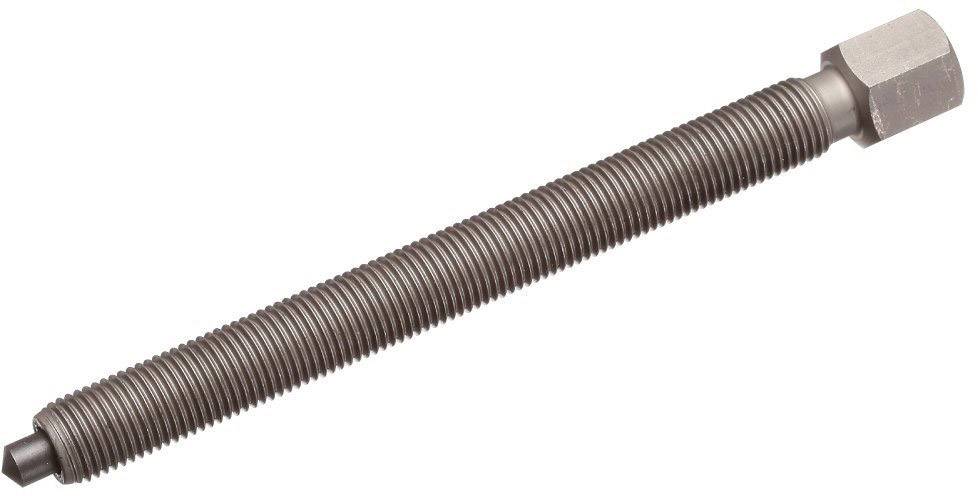

- Upgradeable with hydraulic spindle (see table)
