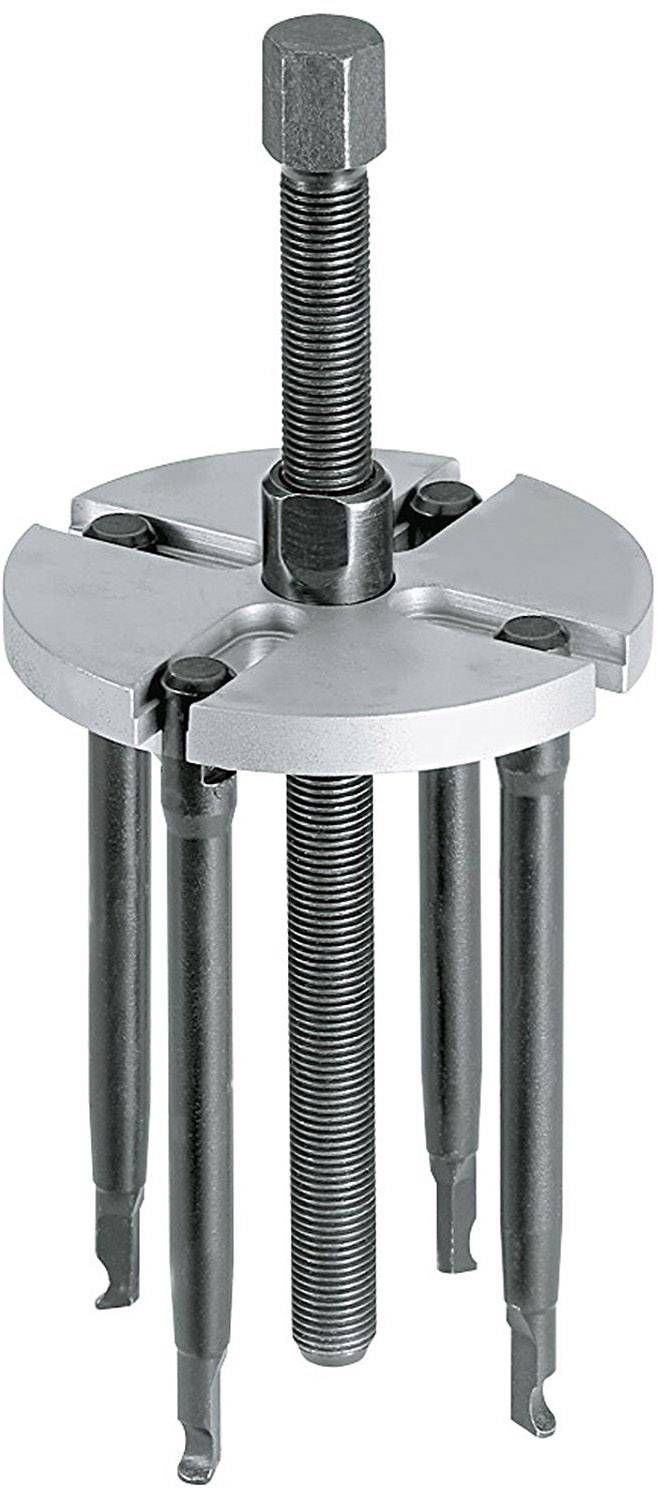

Gedore 1553534 Ball joint puller
EAN:
Part number:
Item no:
Number
Total (€ 402.52 / piece)
€ 516.81
-22 %
€ 402.52
plus VAT.
14-day return policy included
Technical specifications
- Ball Bearing Puller Set 1.92/1-GEDORE PLUS, size 1
- The GEDORE ball bearing puller is a pull of the ball bearings in a casing and on a wave of seats, very easily possible
- The design permits a maximum of functionality in conjunction with simplified handling a plus at effectiveness and productivity
- The head plate captivates with its user-friendliness: the hooks are fixed in the groove
- The self-locking guarantees a 100% force transmission and maximum safety when removing
- There is no slipping or oblique pull more possible
- For more than 40 standard ball bearings to 6311 suitable
- Weight
2.33 kg
- Content
1 pc(s)
- Product type
Ball joint puller
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1908266 Gedore 1553534 Ball joint puller
Information
Information 1908266 Gedore 1553534 Ball joint puller
Description
Features
- Using the ball bearing extractor, the removal of shaft-mounted ball bearings in a housing is now possible without any problems
- Due to its great degree of functionality combined with the simplified handling, this design makes a PLUS in effectiveness and productivity possible
- This tool is easy to use: The legs are fixed in the slot
- The self-locking arrangement means that the force applied is 100 % utilised
- Secure at all times against slipping off - and a straight pulling force for precise working
- Suitable for more than 40 standard ball bearings up to 6311
- 1.92/1 for bearings: 6000-6010, 6200-6205, 6300-6304
- 1.92/2 for bearings: 6011-6012, 6206-6212, 6305-6311, 6403-6407
- 1.92/12 for bearings: 6000-6012, 6200-6212, 6300-6311, 6403-6407
- * with supporting ring 6309
- ** with supporting ring 6310
- *** with supporting ring 6311
