Gedore 1868152 Puller Clamping range (details) 130 mm No. of hooks 2
EAN:
Part number:
Item no:
Number
Total (€ 109.24 / piece)
€ 109.24
plus VAT.
14-day return policy included
Technical specifications
- 1.04/HP1A - Gedore - Universal puller HIGH Power 2-arm 130x100 mm
- High-quality industrial for safe work
- Powerful, ergonomically shaped traverse with bending torque reinforcement
- Lasered setting scale for an optimum adjustment of the pull-off hooks
- Increased safety thanks to beam and hook forged with annealing
- In addition, specially coated traverse can withstand the highest forces
- Self-supporting hooks with T-profile for a positive connection
- Patented quick adjustment for simple, safe setting and alignment - without the use of tools
- Can be used as inner puller by changing the hooks
- Nitrocarburised spindle surface, resistant to wear and corrosion
- Spindle remains free-moving and clean - grease or oil not necessary
- Interchangeable and rotating pressure piece (ball or tip)
- Cross bars can be combined with other spindle/hook designs and lengths of the Gedore puller kit
- Clamping range
130 mm
- Tension/pressure capacity
5 t
- Content
1 pc(s)
- Hooks
2
- Product type
Puller
- Span depth (max.)
100 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1907979 Gedore 1868152 Puller Clamping range (details) 130 mm No. of hooks 2
Information
Information 1907979 Gedore 1868152 Puller Clamping range (details) 130 mm No. of hooks 2
Description
Features
- Cross-beam especially hardened and tempered allows safe application of extremely high pulling forces and doubles the tensile force capability
- Strong drop forged pattern
- By reversing the legs, this tool can be used as an internal or external puller
- Scale for uniform adjustment of the puller legs. Allows centred pulling, with optimised application of force, even when extremely high pulling forces are required
- Integral legs, with quick-release

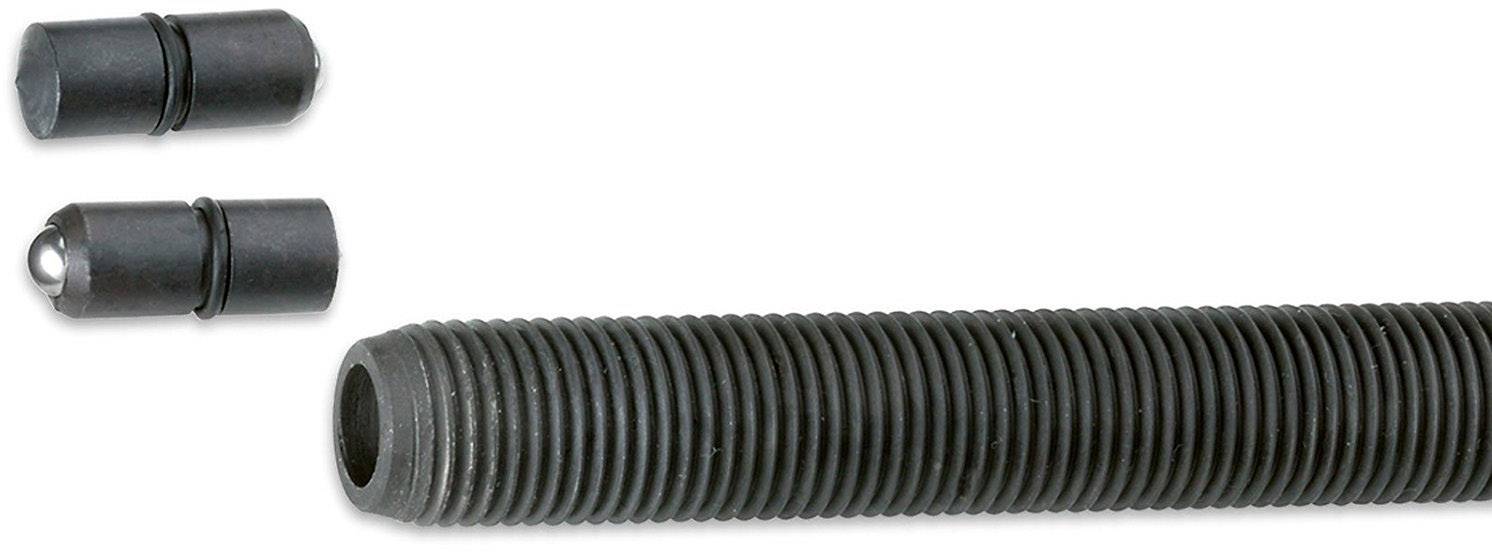

- Spindle with replaceable ball and tip
- Spindle thermo-chemically hardened
- Upgradeable with hydraulic spindle (see table)
