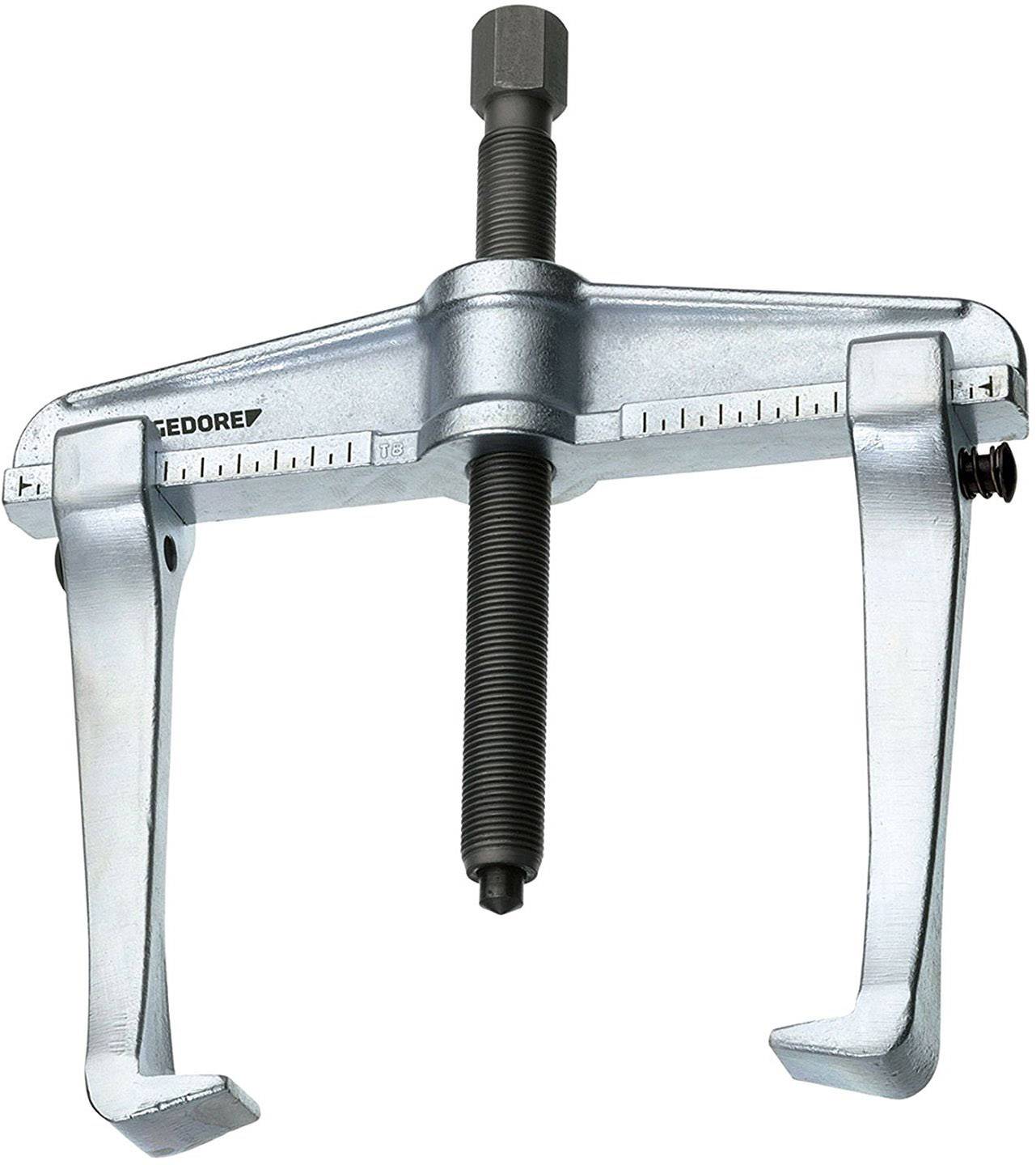

Gedore 1956345 Puller Clamping range (details) 140 mm No. of hooks 2
EAN:
Part number:
Item no:
Number
Total (€ 77.30 / piece)
€ 77.30
plus VAT.
Technical specifications
- 1.06/1A1-B - Gedore - 2-arm extractor, full steel hook, 140x100 mm hook-and-loop brake
- High-quality industrial for safe work
- Strong, ergonomically shaped traverse
- Lasered setting scale for an optimum adjustment of the pull-off hooks
- Increased safety thanks to beam and hook forged with annealing
- Complete steel hook connected in positive form with the traverse
- Can be used as inner puller by changing the hooks
- Nitrocarburised spindle surface, resistant to wear and corrosion
- Spindle remains free-moving and clean - grease or oil not necessary
- Cross bars can be combined with other spindle/hook designs and lengths of the Gedore puller kit
- Clamping range
140 mm
- Tension/pressure capacity
3 t
- Content
1 pc(s)
- Hooks
2
- Product type
Puller
- Span depth (max.)
100 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1907995 Gedore 1956345 Puller Clamping range (details) 140 mm No. of hooks 2
Information
Information 1907995 Gedore 1956345 Puller Clamping range (details) 140 mm No. of hooks 2
Description
Features
- Strong drop forged design
- Rigid legs forged from one piece
- Leg brake - prevents unintentional leg slipping. The leg can be slid along the cross-beam at the push of a button
- Scale for uniform adjustment of the puller legs. Allows centred pulling, with optimised application of force, even when extremely high pulling forces are required
- By reversing the legs, this tool can be used as an internal or external puller
- Extra or replacement legs increase versatility
- Upgradeable with hydraulic spindle (see table)
