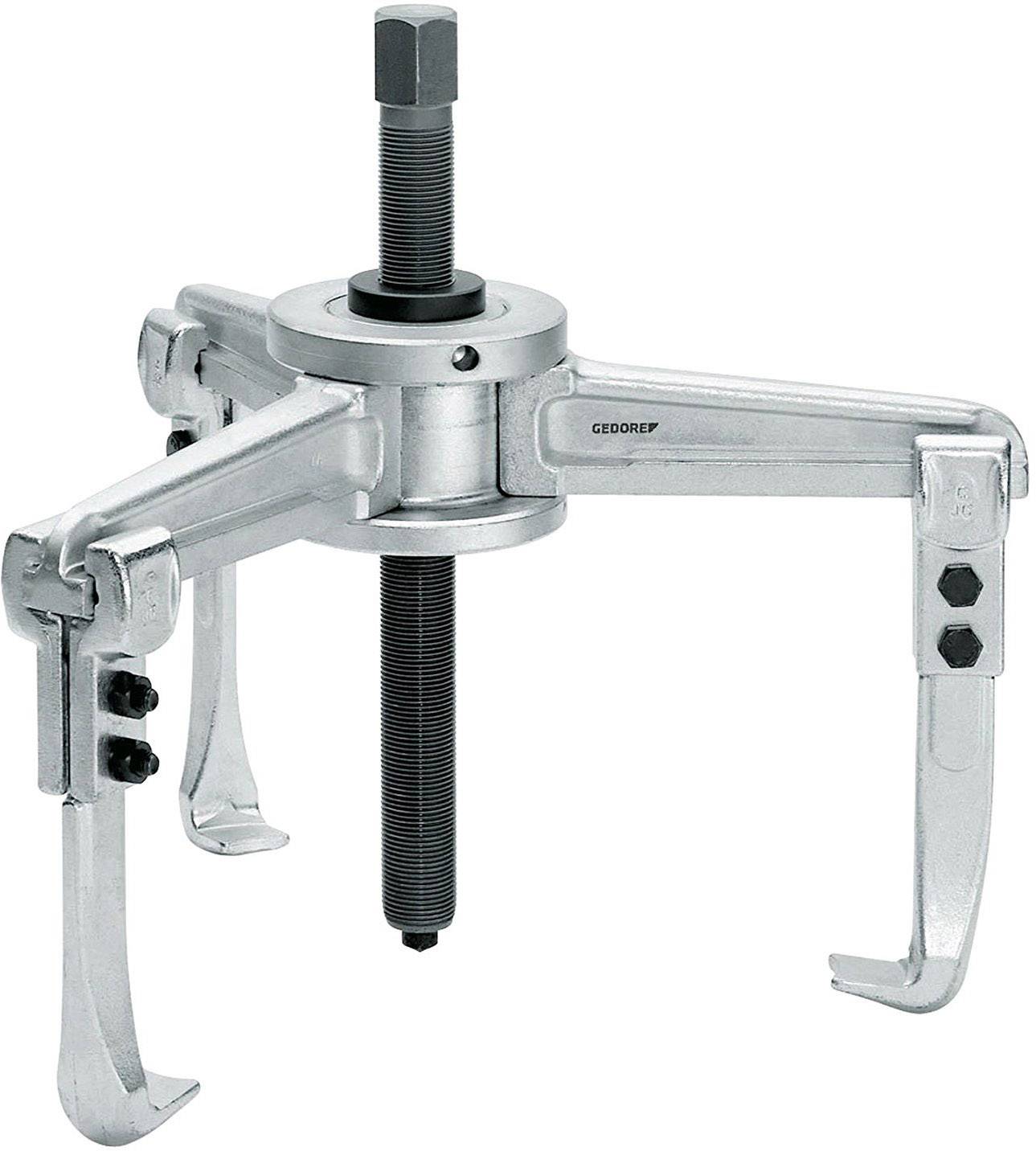

Gedore 1958003 Puller Clamping range (details) 580 mm No. of hooks 3
EAN:
Part number:
Item no:
Number
Total (€ 987.39 / piece)
€ 987.39
plus VAT.
14-day return policy included
Technical specifications
- 1.07/4A - Gedore - Universal puller 3-arm 580x200 mm
- Industrial quality, 3 arms for optimum load distribution, tilt resistant and gentle on material
- Can be used as a 2- or 3-arm puller
- Strong, ergonomically shaped traverse
- Hook glowing forged in the countersunk
- Pull-off hook with tested screw connection for a positive connection
- Can be used as inner puller by changing the hooks
- Nitrocarburised spindle surface, resistant to wear and corrosion
- Spindle remains free-moving and clean - grease or oil not necessary
- Cross bars can be combined with other spindle/hook designs and lengths of the Gedore puller kit
- Clamping range
580 mm
- Tension/pressure capacity
10 t
- Content
1 pc(s)
- Hooks
3
- Product type
Puller
- Span depth (max.)
200 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1908074 Gedore 1958003 Puller Clamping range (details) 580 mm No. of hooks 3
Information
Information 1908074 Gedore 1958003 Puller Clamping range (details) 580 mm No. of hooks 3
Description
Features
- Just like our standard model no. 1.06, this puller is designed for all branches of industry, but particularly for the construction of electric motors
- It is also suitable for removing heavy, multistage V-belt pulley wheels, flywheels, gear wheels, etc.
- Pins are used to lock the arms at 120 degrees to each other on the hub
- Upgradeable with hydraulic spindle (see table)
- This puller may also be used with the hydraulic aid no. 1.50 without requiring any reduction bushing
- On request, this puller is also available with further legs and extendable up to 6 arms
