Gedore 1981137 Puller Clamping range (details) 350 mm No. of hooks 2
EAN:
Part number:
Item no:
Number
Total (€ 323.53 / piece)
€
Only 5 Piece(s) available
Technical specifications
- 1.04/3A-B - Gedore - 2-arm extractor, full steel hook, 350x200 mm hook brake
- High-quality industrial for safe work
- Powerful, ergonomically shaped traverse with bending torque reinforcement
- Lasered setting scale for an optimum adjustment of the pull-off hooks
- Increased safety thanks to beam and hook forged with annealing
- Complete steel hook connected in positive form with the traverse
- With patented hook brake - quick adjustment and secure fixing of the hook, by pressing a button
- Can be used as inner puller by changing the hooks
- Nitrocarburised spindle surface, resistant to wear and corrosion
- Spindle remains free-moving and clean - grease or oil not necessary

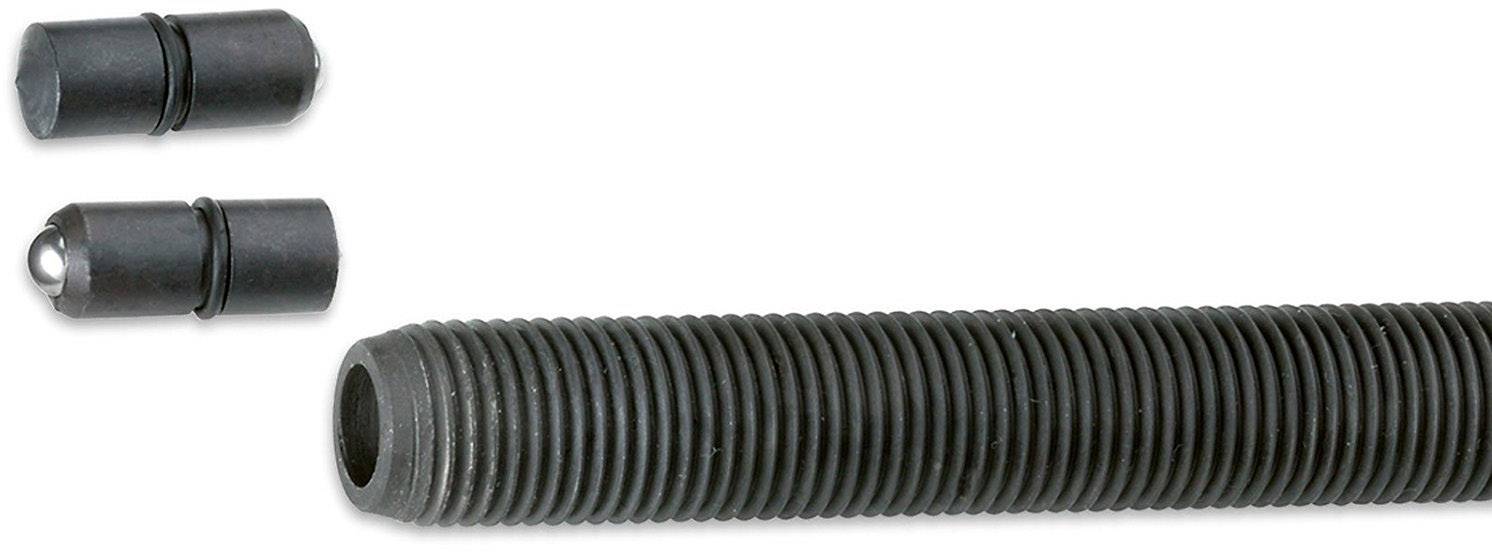

- Interchangeable and rotating pressure piece (ball or tip)
- Cross bars can be combined with other spindle/hook designs and lengths of the Gedore puller kit
- Clamping range
350 mm
- Tension/pressure capacity
7.5 t
- Dim
- Content
1 pc(s)
- Span depth (max.)
200 mm
- Hooks
2
- Product type
Puller
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1907976 Gedore 1981137 Puller Clamping range (details) 350 mm No. of hooks 2
Information
Information 1907976 Gedore 1981137 Puller Clamping range (details) 350 mm No. of hooks 2
Description
Features
- Due to the bending-moment reinforcement on its back face, the energy-saving design of the cross-beam means even stronger and safer pulling work
- Strong drop forged pattern
- Rigid legs forged from one piece
- The legs clamp automatically when under tension
- Leg brake - prevents unintentional leg slipping. The leg can be slid along the cross-beam at the push of a button
- By reversing the legs, this tool can be used as an internal or external puller
- Scale for uniform adjustment of the puller legs. Allows centred pulling, with optimised application of force, even when extremely high pulling forces are required
- Spindle with replaceable ball and tip
- Spindle thermo-chemically hardened
- Upgradeable with hydraulic spindle (see table)
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
