Gedore 2 13X15 2 Double-ended box wrench Spanner size (metric) 13 mm
EAN:
Part number:
Item no:
Highlights & Details

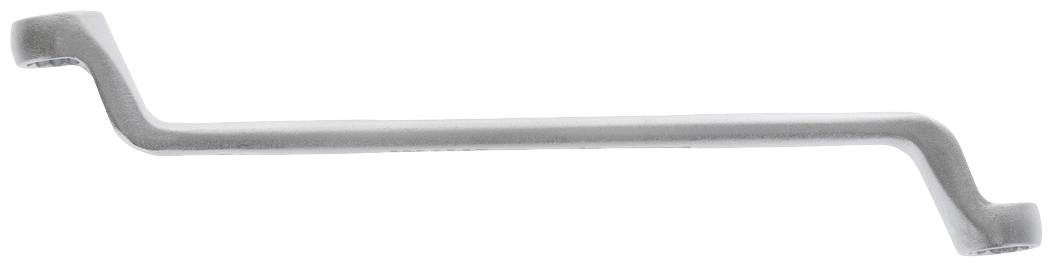

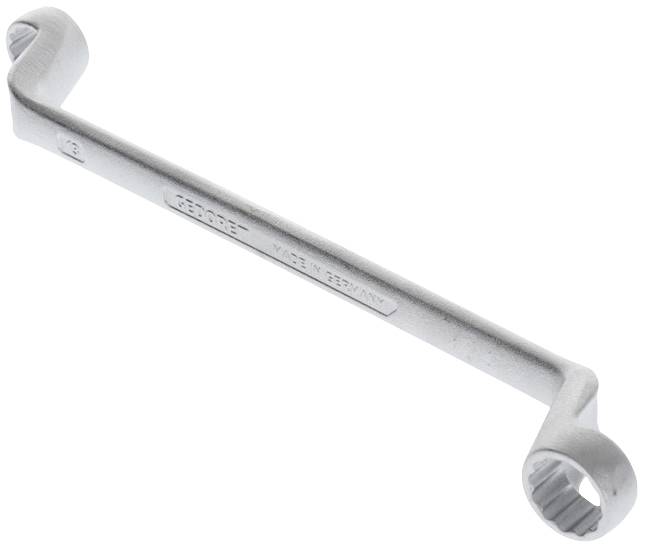

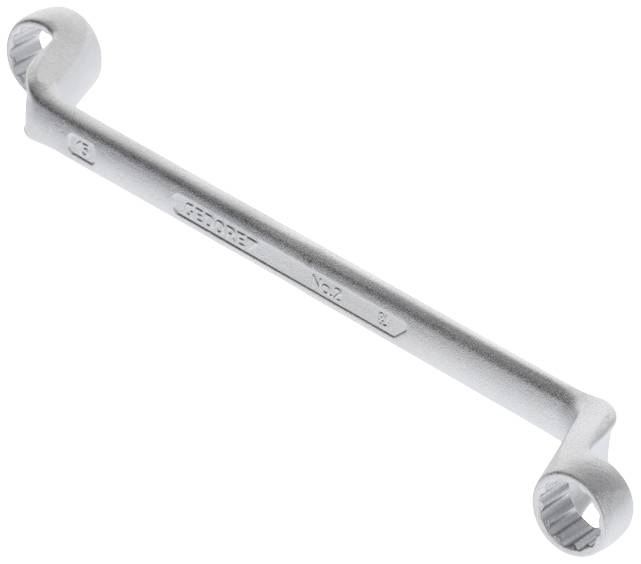

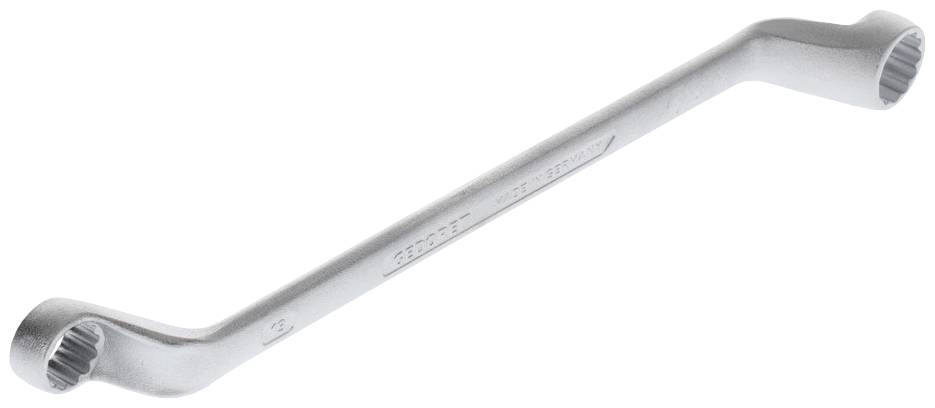

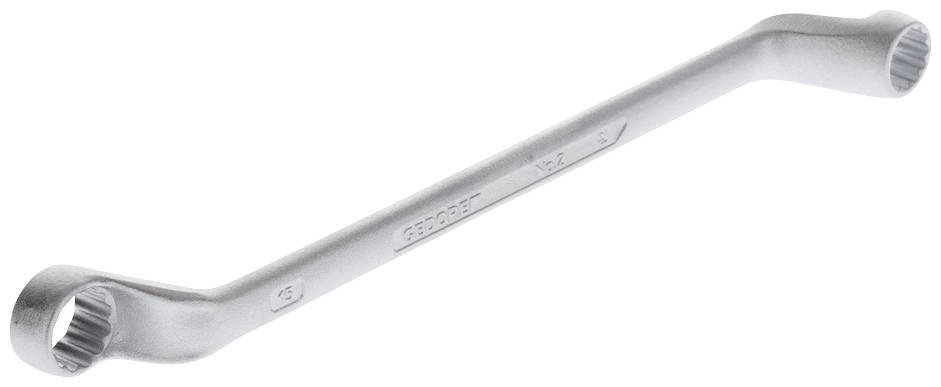

Double ring spanner, UD profile, 13x15 mm
- Design according to DIN 838, ISO 3318, ISO 1085, ISO 10104
- Deep offset, with thin-walled rings
- Vanadium steel 31CrV3, chrome plated.
Technical specifications
- Deep offset, with thin-walled rings
- DIN 838; ISO 3310; ISO 1085; ISO 10104
- Width across: 13x15
- Head width 1:20.1 mm
- Head height 1:10.3 mm
- Head width 2:23.1 mm
- Head height 2:11.3 mm
- Height 1: 26.1 mm
- Ring rate 5°
- Product type
Double-ended box wrench
- Spanner size
13 mm
- Length
225 mm
- Material
Chromium-vanadium steel
- Material properties
chrome plated
- DIN standard
DIN 838
- Height
20 mm
- Width
30 mm
- Weight
0.16 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3220577 Gedore 2 13X15 2 Double-ended box wrench Spanner size (metric) 13 mm
Description
Design according to DIN 838, ISO 3318, ISO 1085, ISO 10104. Deep offset, with thin-walled rings. Vanadium steel 31CrV3, chrome plated. Anti-glare matt surface. Carefully forged and professionally processed: Ring: Thin-walled, deep cranked and angled at 5°, with UD-profile - for gentle power transfer. High bending strength - does not break or splinter due to overload and thus minimizes the risk of injury. Overloading is indicated by deformation. For extremely low-lying or countersunk nuts High-quality industrial grade for hard continuous use
This text is machine translated.
This text is machine translated.
Features
- Anti-glare matt surface
- Carefully forged and professionally processed: Ring: Thin-walled, deep cranked and angled at 5°, with UD-profile - for gentle power transfer
- High bending strength - does not break or splinter due to overload and thus minimizes the risk of injury
- Overloading is indicated by deformation
- For extremely low or
- Countersunk nuts
- High-quality industrial grade for hard continuous use
Scope of delivery
- Double ring spanner, UD profile, 13x15 mm
