Buy Gedore 2 14X15 2 Double-ended box wrench Spanner size (metric) 14 mm

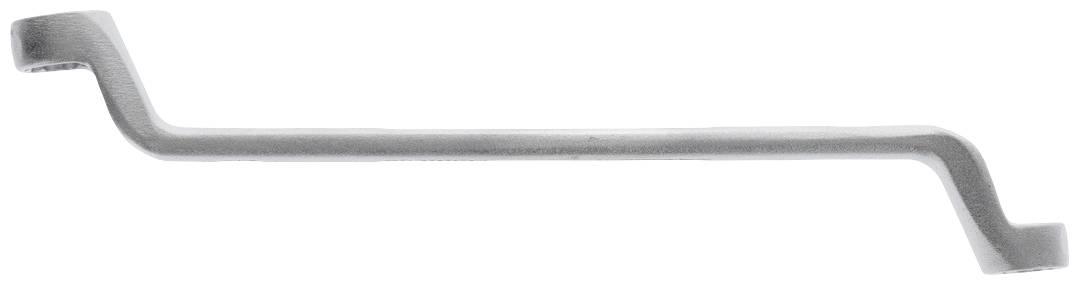

Silver adjustable spanner with an offset design, commonly used for installing taps.

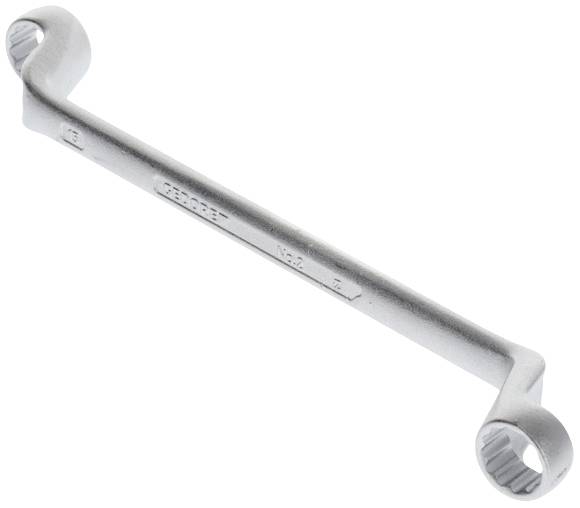

Metal double ring spanner with two different ring sizes at each end. Suitable for loosening or tightening bolts.

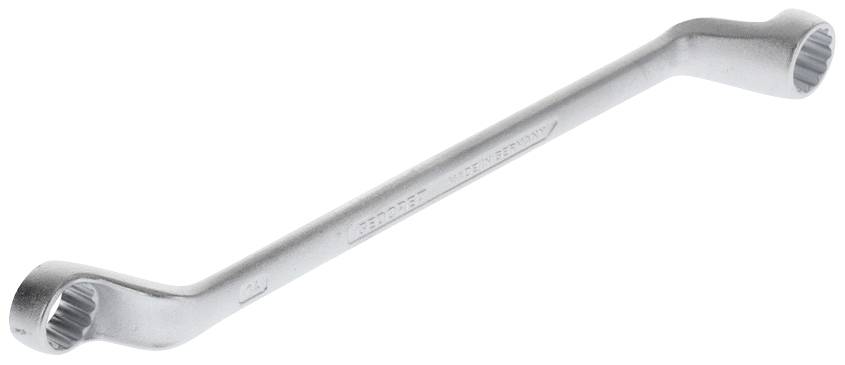

A silver double ring spanner with two differently sized ring spanners at the ends, for loosening or tightening bolts.

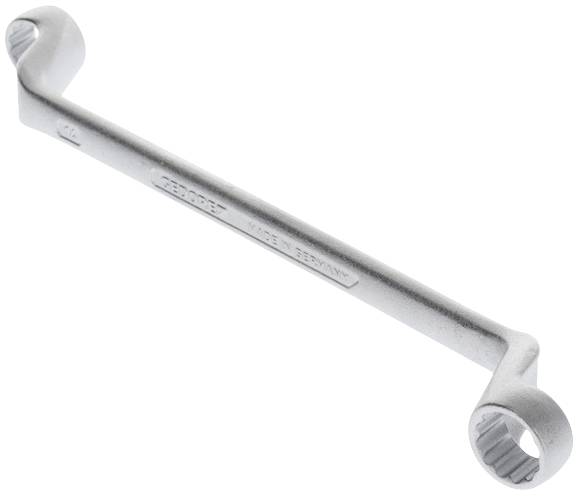

Metal ring spanner, slightly angled, with ribbed ends for better grip on screws or nuts.

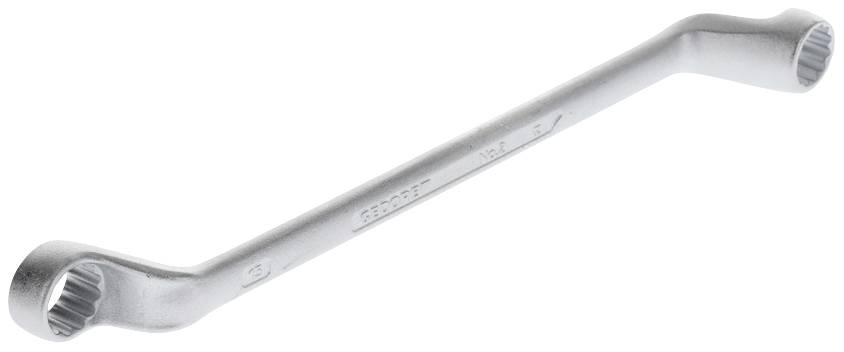

A silver-gleaming ring spanner with two differently sized heads, suitable for tightening or loosening hexagonal nuts and screw heads.

1/5

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Double-ended ring spanner, UD profile, 14x15 mm

Design according to DIN 838, ISO 3318, ISO 1085, ISO 10104
Deep offset, with thin-walled rings
Vanadium steel 31CrV3, chrome plated.

Technical specifications

Deep offset, with thin-walled rings
DIN 838; ISO 3310; ISO 1085; ISO 10104
Width across: 14x15
Head width 1:21.6 mm
Head height 1:10.6 mm
Head width 2:23.1 mm
Head height 2:11.3 mm
Height 1: 26.1 mm
Ring rate 5°

Product type: Double-ended box wrench

Spanner size: 14 mm

Size: 14

Length: 225 mm

Material: Chromium-vanadium steel

Material properties: chrome plated

DIN standard: DIN 838

Height: 30 mm

Width: 22 mm

Weight: 0.154 kg

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3220579 Gedore 2 14X15 2 Double-ended box wrench Spanner size (metric) 14 mm

Description

Design according to DIN 838, ISO 3318, ISO 1085, ISO 10104. Deep offset, with thin-walled rings. Vanadium steel 31CrV3, chrome plated. Anti-glare matt surface. Carefully forged and professionally processed: Ring: Thin-walled, deep cranked and angled at 5°, with UD-profile - for gentle power transfer. High bending strength - does not break or splinter due to overload and thus minimizes the risk of injury. Overloading is indicated by deformation. For extremely low-lying or countersunk nuts High-quality industrial grade for hard continuous use

This text is machine translated.

Features

Anti-glare matt surface
Carefully forged and professionally processed: Ring: Thin-walled, deep cranked and angled at 5°, with UD-profile - for gentle power transfer
High bending strength - does not break or splinter due to overload and thus minimizes the risk of injury
Overloading is indicated by deformation
For extremely low or
Countersunk nuts
High-quality industrial grade for hard continuous use
