Gedore 2005 CT4-1.04-1.40 Puller set
EAN:
Part number:
Item no:
Highlights & Details
Gedore 2005 CT4-1.04-1.40 Puller set
- Practical set of universal exterior extraction devices, internal extraction units and disconnecting blades for many applications
- Large range of pullers in one set – for both filigree and high force applications
- Check-Tool insert can be flexibly adjusted to the required size.
Technical specifications
- Dim
(L x W x H) 633 x 390 x 60 mm
- Weight
10.63 kg
- Content
1 Set
- Product type
Puller set
- Width
390 mm
- Height
60 mm
- Length
633 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3220550 Gedore 2005 CT4-1.04-1.40 Puller set
Description
Practical set of universal exterior extraction devices, internal extraction units and disconnecting blades for many applications. Large range of pullers in one set – for both filigree and high force applications. Check-Tool insert can be flexibly adjusted to the required size. Safe and high-capacity, die-forged components. Outer puller with innovative high-Power components for double load
This text is machine translated.
This text is machine translated.
Features
- Safe and high-capacity, die-forged components
- Outer puller with innovative high-Power components for double load

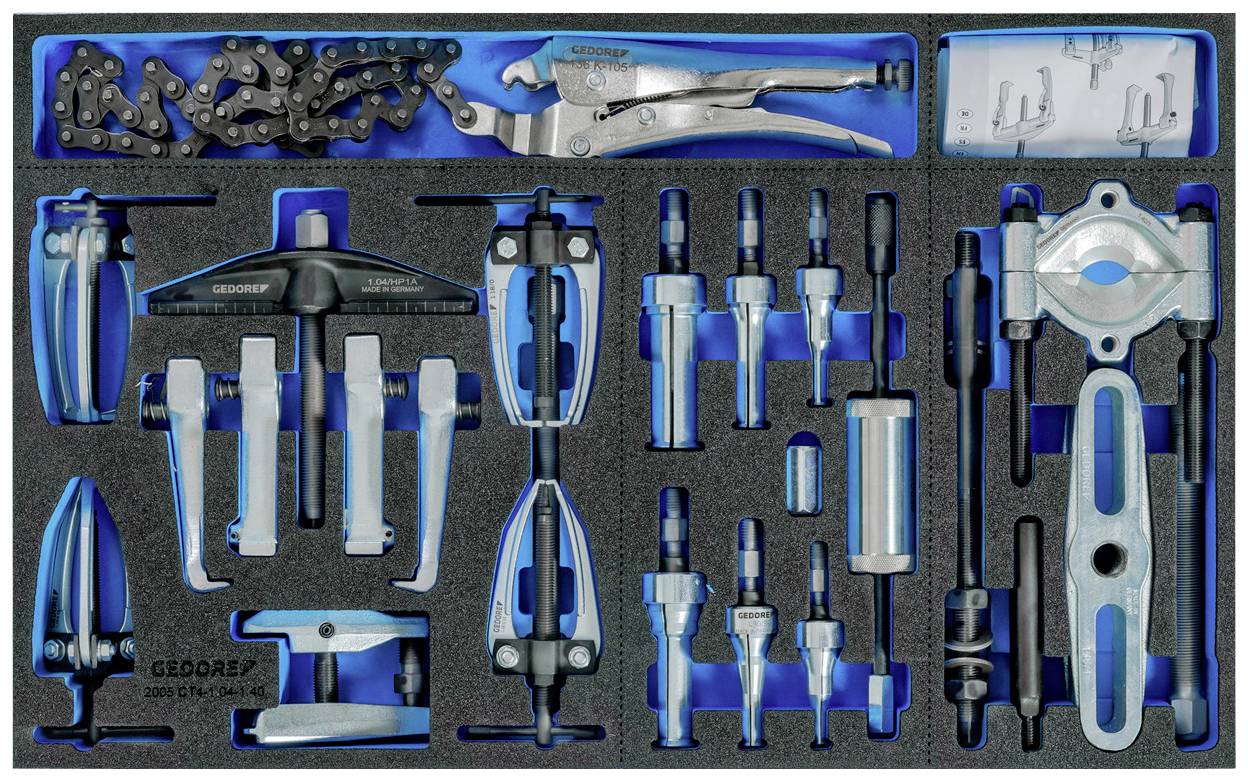

Scope of delivery
- 136 K-105 Chain-Gripping pliers 105cm for max.. Ø 33cm
- 1.04/HP1A-B puller HIGH Power 2-arm span 130 mm x clamping depth 100 mm
- 106/A-100-VB extension, 100 mm with brake
- 1.1406200 Spindle M14x1.5 x 200 mm
- 1.18/0XS puller 2-arm XS hook Range 50mm x span 70 mm 160
- 1.18/0 pole terminal pullers 2-arm span 80mm x span 80 mm
- 1.19/0XS puller 3-arm XS hook Range 50mm x clamping depth 70 mm
- 1.19/0 pole terminal pullers 3-arm span 80mm x span 80 mm
- 1.73/1 universal ball-joint puller for max. Ø 23 mm max. Clamping height 65 mm fork depth 24 mm
- 1.30/1 inner puller for Ø 8 mm
- 1.30/2 inner puller for Ø 12 - 15 mm
- 1.30/3 inner puller for Ø 14 - 19 mm
- 1.30/4 inner puller for Ø 19 - 25 mm
- 1.30/4A Inner puller for Ø 24 - 30 mm
- 1.30/5 inner puller for Ø 30 - 36 mm
- 1.35/1A Slide hammer 700g 160
- for 1.30/0 - 1.30/5
- 1.38/1 Pulling away attachment Wingspan 60-165 mm x span 230 mm
- 1.38/AV Extension 100 mm (1 Pair)
- 1.40/1 separating device Wingspan 12-75 mm
- EI-2005 CT4-1.04-1.40 Check-Tool-Module, empty.
