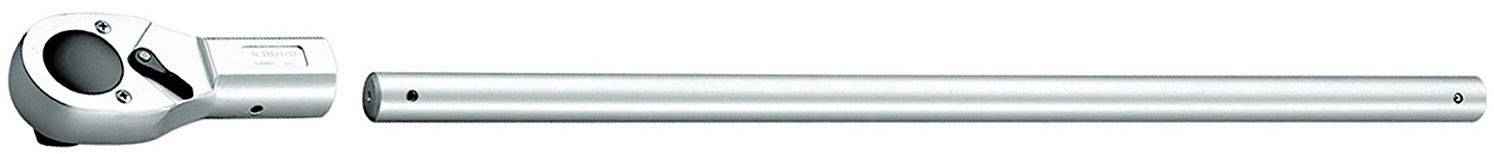

Gedore 2193 U-10 6180550 Forward/reverse ratchet 1" 810 mm
EAN:
Part number:
Item no:
Number
Total (€ 163.86 / piece)
€ 163.86
plus VAT.
Only 2 Piece(s) available
Technical specifications
- 2193 U-10-GEDORE-reversible ratchet 1" 810 mm, back angle of 10°
- Product type
Forward/reverse ratchet
- Downforce
1"
- Length
810 mm
- Material
Chromium-vanadium steel
- DIN standard
DIN 3122
- Weight
5.265 kg
- Width
70 mm
- Height
65 mm
- Dim
(L x W x H) 810 x 70 x 65 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1907481 Gedore 2193 U-10 6180550 Forward/reverse ratchet 1" 810 mm
Information
Information 1907481 Gedore 2193 U-10 6180550 Forward/reverse ratchet 1" 810 mm
Description
Features
- Particularly for the demanding use experienced in industry and with utility vehicles
- Acc. to DIN 3122, ISO 3315
- With recessed lever change, locks in middle position
- Return angle 11.25 degrees
- Push-fit bar handle no. 2187 G
- For hand-operated sockets and accessories with square drive as per DIN 3120 - D 25, ISO 1174 with locking pin
- GEDORE vanadium steel 31CrV3, chrome-plated
