Gedore 2838362 Puller set No. of hooks 9
EAN:
Part number:
Item no:
Number
Total (€ 626.05 / piece)
€ 626.05
plus VAT.
Only 7 Piece(s) available
Highlights & Details
Gedore 2838362 Puller set No. of hooks 9
- With 2- and 3-arm traverse
- With all steel and slim hooks as well as extensions
- Extra slim pull-off hooks for narrow spaces are included for self-assembly
- Narrow hook feet ideally suited for difficult to access places
- Combination of 12 different puller types possible
- Outer-Ø up to 130 mm, inner-Ø up to 170 mm with a clamping depth of 200 mm
- With check-tool insert for quick detection of missing tool
- No. 1100 CT2-1.04 for retrofitting existing L-BOXX®en 136
- This text is machine translated.
Technical specifications
- Dim
(L x W x H) 357 x 442 x 151 mm
- Weight
6.3 kg
- Content
1 pc(s)
- Hooks
9
- Max. length
200 mm
- Product type
Puller set
- Width
442 mm
- Height
151 mm
- Length
357 mm
- Span width (max.)
170 mm
- Span depth (max.)
200 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2289786 Gedore 2838362 Puller set No. of hooks 9
Description

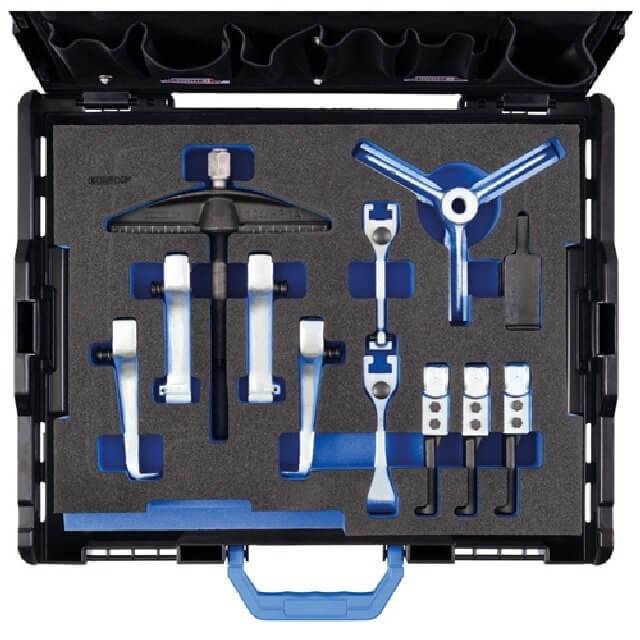

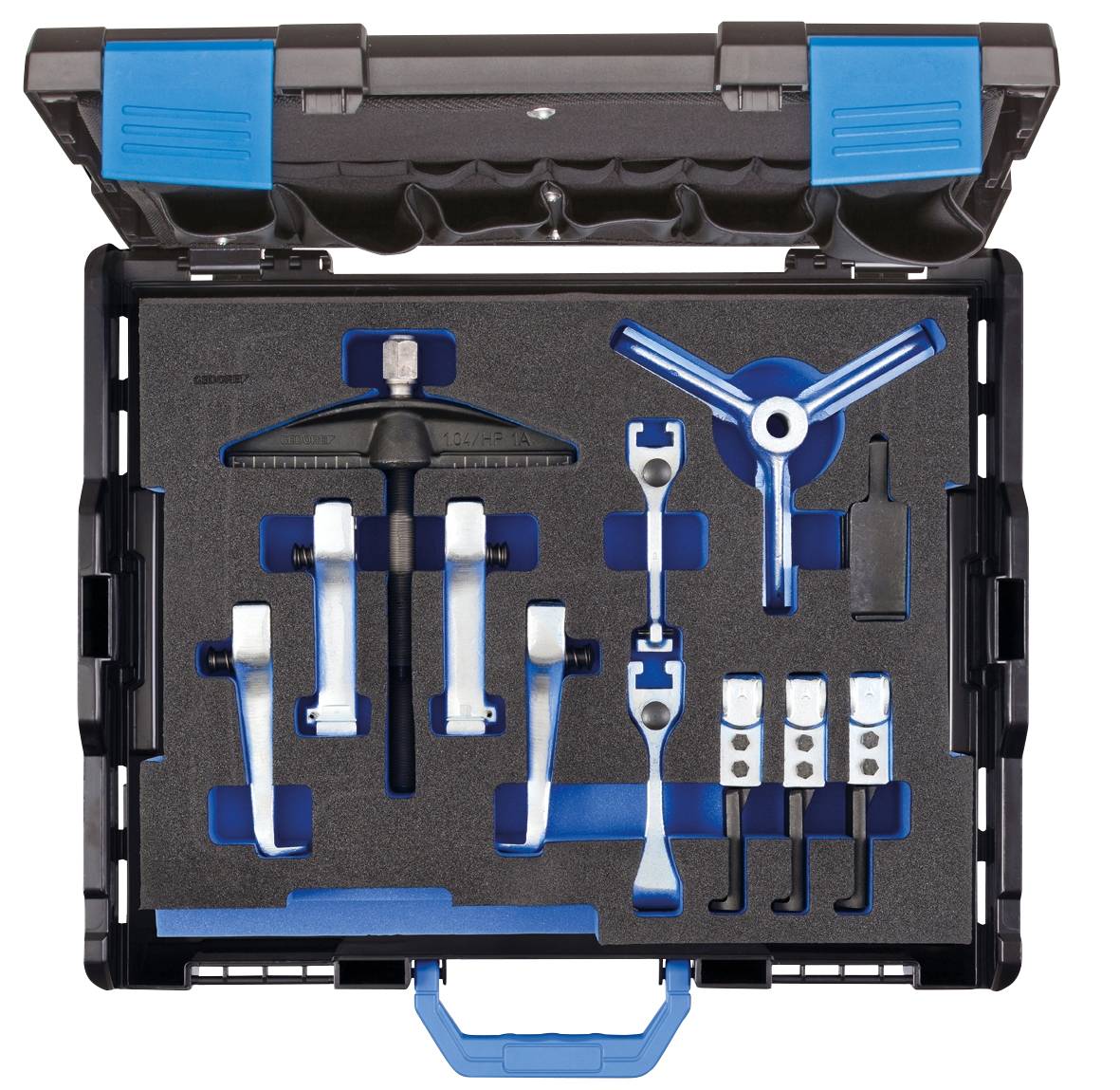

Scope of delivery
- Universal puller HIGH power no. 1.04/HP1A-B, 2-arm, 130x100 mm
- Traverse No. 107/1A03, 3-arm 180 mm
- Pick-off hook No. 106/A-100-B, all steel, 100 mm hook brake
- 3x Extension No. 106/A-100-VB with 100 mm hook brake
- 3x Pull-off hook No. 106/A-100-S, slim 100 mm
- 3x Pull-off hook No. 106/S101-S, without clamp
- Spindle No. 1.1406200, SW 17 M14x1.5 200 mm
- + GEDORE L-BOXX® 136 NO. 1100 L
