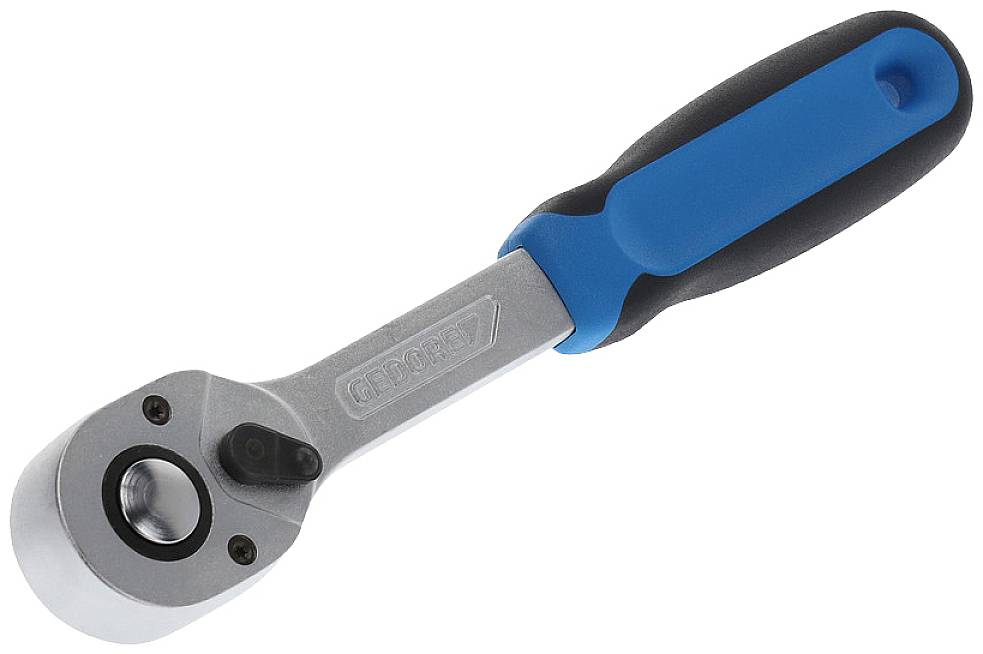

Gedore 3093 U-10 6236950 Forward/reverse ratchet 3/8" 200 mm
EAN:
Part number:
Item no:
Technical specifications
- 3093 U-10-GEDORE-Reversible ratchet 3/8" 200 mm, back angle of 11.25°
- Downforce
3/8"
- Length
200 mm
- Material
Chromium-vanadium steel
- Material properties
chrome plated
- DIN standard
DIN 3122
- Weight
0.29 kg
- Width
30 mm
- Height
20 mm
- Dim
(L x W x H) 200 x 30 x 20 mm
- Product type
Forward/reverse ratchet
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1907521 Gedore 3093 U-10 6236950 Forward/reverse ratchet 3/8" 200 mm
Information
Information 1907521 Gedore 3093 U-10 6236950 Forward/reverse ratchet 3/8" 200 mm
Description
Features
- Particularly for the demanding use experienced in industry and with utility vehicles
- Acc. to DIN 3122, ISO 3315
- With recessed lever change
- Locks in the middle position: When the lever is flipped, it automatically engages for clockwise or counterclockwise operation
- Push-button release
- Return angle 11.25 degrees
- Non-slip 2-component handle with hanging hole
- For hand-operated sockets and accessories with square drive as per DIN 3120 - C 10, ISO 1174, ball locking device
- GEDORE vanadium steel 31CrV3, chrome-plated
