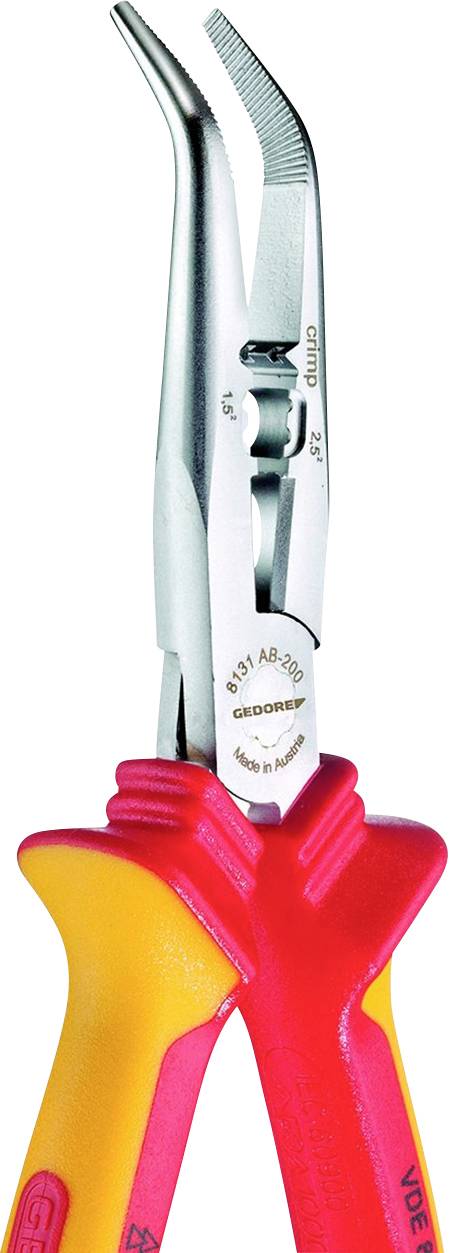

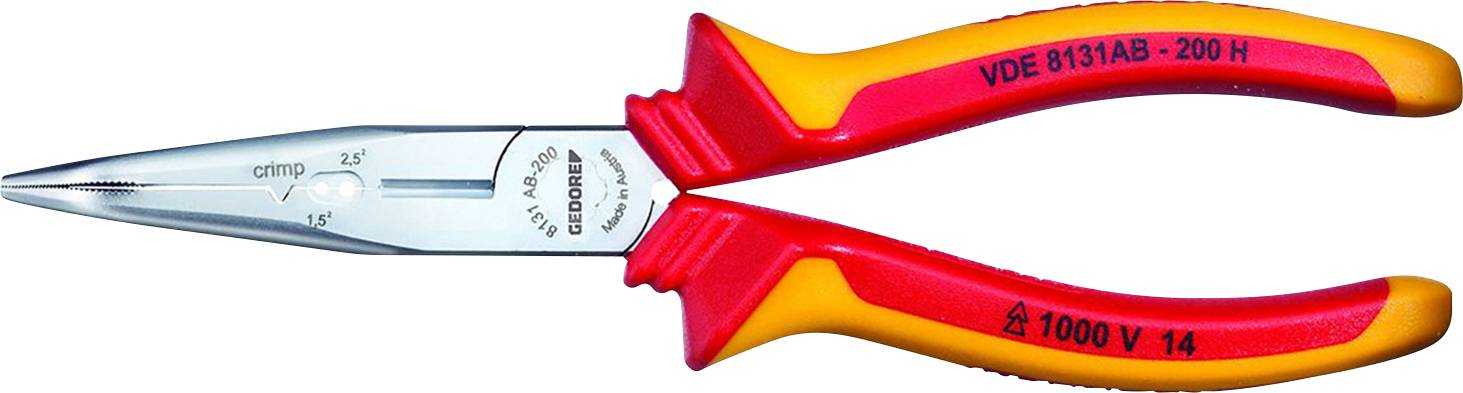

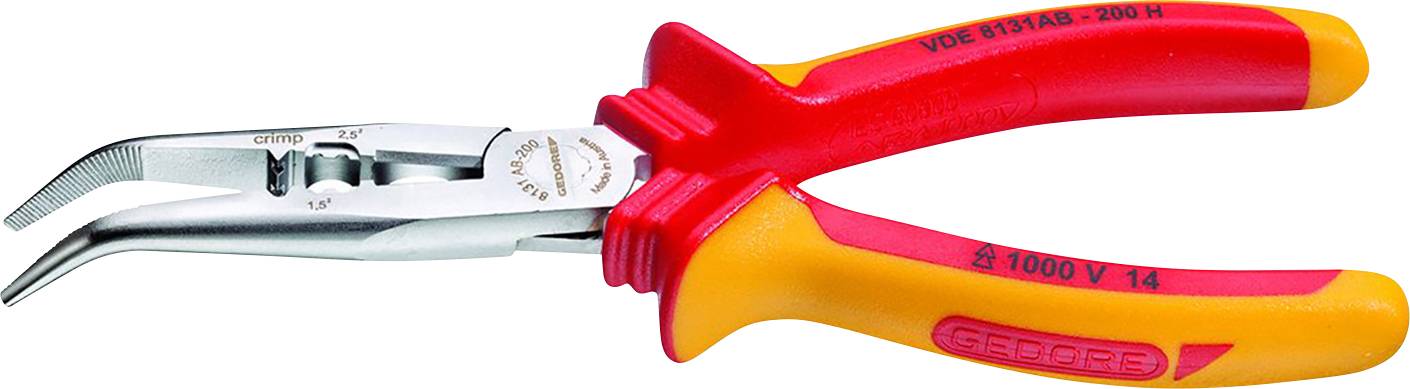

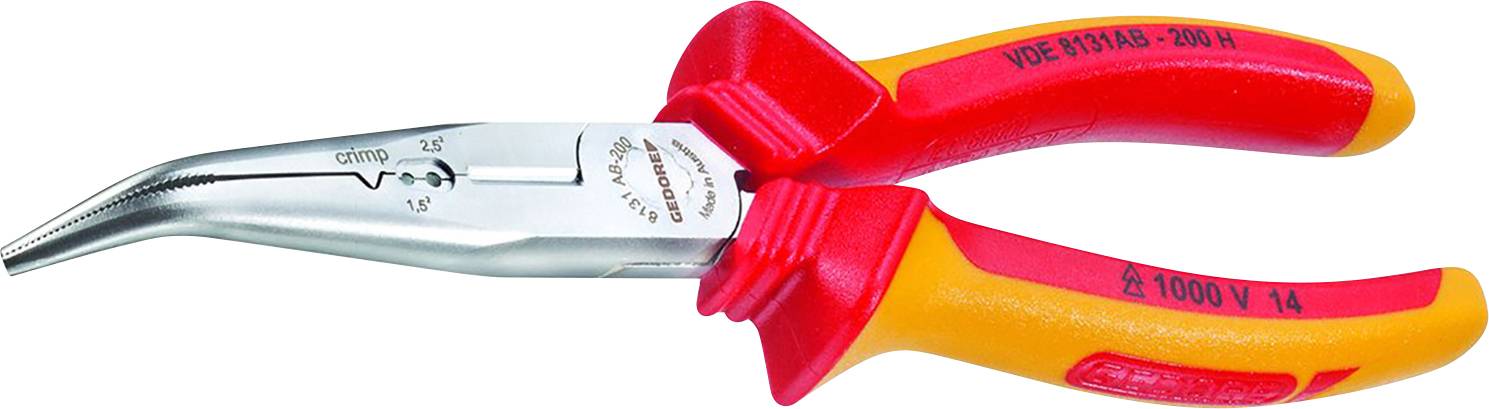

Gedore 3100383 VDE Round nose pliers Quenched steel 200 mm
EAN:
Part number:
Item no:
Number
Total (€ 37.81 / piece)
€ 37.81
plus VAT.
14-day return policy included
Technical specifications
- Grip design: 2K-grip covers VDE insulated up to 1000 V.
- With cutting edge: Yes
- Product type
Round nose pliers
- Manufacturer part #
3100383
- Range of use
VDE
- Length
200 mm
- Edge hardness
63 HRC
- Material
Quenched steel
- Material properties
chrome plated
- Weight
0.22 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2451569 Gedore 3100383 VDE Round nose pliers Quenched steel 200 mm
Description
Pliers in VDE design especially adapted to the needs of electrical installers with the following functions:
Cable cutter: Enables easy cutting of cables up to 5x2.5 mm² or Ø 12 mm
Stripping blades: Stripping option for wires 1.5 mm2 and 2.5 mm2
Crimp profile: Crimping of wire end sleeves
Serrated gripping surface: Special holding force when pulling cables and wires during installation work
Curved tip: Allows you to work without damaging the joints and gives you a clear view of the work piece
Space-saving in the bag, since only one tool is needed
Schenker VDE insulated up to 1000 V, according to EN 60900/IEC 60900, sleeve insulation
This text is machine translated.
Cable cutter: Enables easy cutting of cables up to 5x2.5 mm² or Ø 12 mm
Stripping blades: Stripping option for wires 1.5 mm2 and 2.5 mm2
Crimp profile: Crimping of wire end sleeves
Serrated gripping surface: Special holding force when pulling cables and wires during installation work
Curved tip: Allows you to work without damaging the joints and gives you a clear view of the work piece
Space-saving in the bag, since only one tool is needed
Schenker VDE insulated up to 1000 V, according to EN 60900/IEC 60900, sleeve insulation
