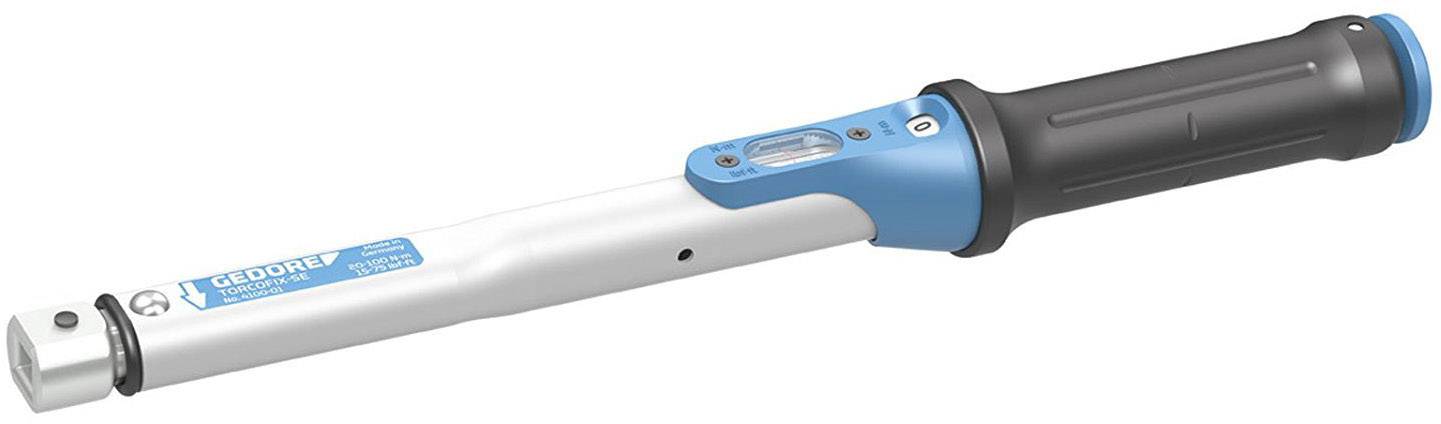

Gedore 4100-01 7600210 Torque wrench 9 x 12 mm socket square 20 - 100 Nm
EAN:
Part number:
Item no:
Total (€ 168.06 / piece)
€ 168.06
plus VAT.
14-day return policy included
Highlights & Details
4100-01 - GEDORE - Torque wrench TORCOFIX SE 9x12, 20-100 Nm
Technical specifications
- 4100-01 - GEDORE - TORCOFIX SE torque wrench 9x12, 20-100 Nm
- Application:
- Controlled screw suit
- Adjustable, triggering and robust pipe torque wrench with square attachment for industry and trade
- Design:
- Classified according to DIN EN ISO 6789:2003 Type II Class A, with a traceable factory certificate. Calibrated for a permissible deviation of +/- 3 % and better. The specification of the standard (+/- 4 %) is exceeded for your safety
- for the controlled right and left suit
- robust, painted steel tube construction, with galvanized square attachment (9x12 mm or 14x18 mm) and high-quality plastic parts
- ergonomically shaped, Handy black plastic handle with calibration aid
- Double scale N
- m and lbf
- ft under a viewing window with magnifying effect
- with nonius scale for N
- m Main scale for setting scale-wipe values
- Spring system generates a clear sensitivity and audible trigger signal
- Ergonomic system for torque adjustment
- Factory calibration jig measure: 17.5 mm (9x12 mm) or 25 mm (14x18 mm)
- actuation only with push-in tools with a uniform pitch - otherwise, value shifts may occur
- depending on the tool insert, both forwards (e.g. Open-end wrenches) or to the side (e.g. Reversible ratchet and socket wrench insert)
- Product type
Torque wrench
- Downforce
9 x 12 mm socket square
- Torque (min.)
20 Nm
- Torque (max.)
100 Nm
- Graduation
5 Nm

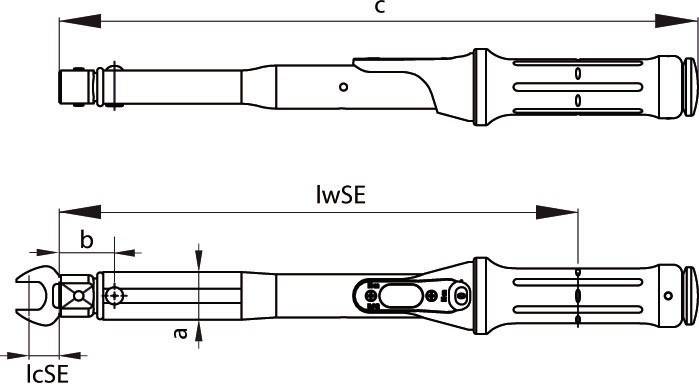

- Length
369.5 mm
- Width
27.5 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1908305 Gedore 4100-01 7600210 Torque wrench 9 x 12 mm socket square 20 - 100 Nm
Information
Information 1908305 Gedore 4100-01 7600210 Torque wrench 9 x 12 mm socket square 20 - 100 Nm
Description
Features
- Use:
- Controlled screw tightening in the most widely used range of 5 - 400 N
- m / 3.7 - 300 lbf
- ft
- Adjustable, releasing and sturdy tubular torque wrench with rectangular cavity for industry and the trades Features:
- Classified to DIN EN ISO 6789:2017 Type II Class A, with a factory certificate. Working accuracy: +/- 3 % tolerance of scale set torque. The specification of the standard (+/- 4 %) is exceeded.
- For controlled bi-directional tightening
- Sturdy, varnished tubular steel construction, with zinc-plated rectangular cavity (9x12 mm or 14x18 mm) and high-grade plastic parts
- Ergonomically shaped, convenient black plastic handgrip with calibration aid
- Dual scale N
- m and lbf
- ft below a window with a magnifying-glass effect
- With micrometre scale for main N
- m scale for setting interim values
- Release system triggers a tactile and audible signal
- Ergonomic system for torque adjustment
- Factory depth gauges: 17.5 mm (9x12 mm) or 25 mm (14x18 mm)
- Operation only with end fittings with standardised depth gauges, otherwise inaccuracies can arise
- Depending on the application, access is possible from the front (e.g. open-end fitting) or side (e.g. reversible ratchet and socket).
