Name: Gedore 6 19X22 Doppelmaulschlüssel 19x22mm DIN3110 flach Gedore Double-ended open ring spanner Spanner size (metric) 19
Brand: Gedore
SKU: 3220570

A galvanised double-ended spanner with open jaws. Left side marked '22 mm', right side marked '24 mm'. Inscription in the centre 'GEDORE 7'. Suitable for loosening bolts.

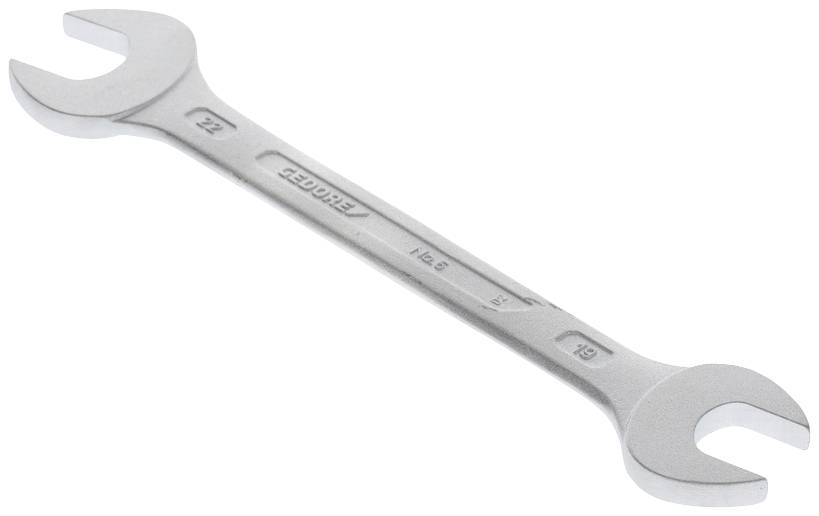

A silver double-ended spanner, left size 22, right size 19, on a white background.

A silver adjustable spanner with two different sizes at each end, one side marked '21', the other side marked '23'.

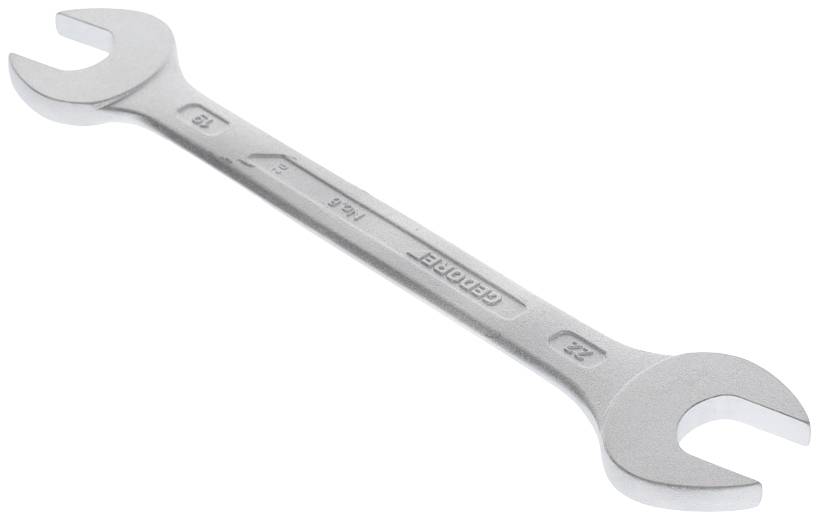

A silver double-ended spanner with 19 mm and 22 mm sizes, viewed diagonally, on a white background.

A silver double-ended spanner with '22' and '24' sizes engraved. It is lying flat on a white surface.

1/5

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Double wrench 19x22 mm

Design according to DIN 3110, ISO 3318, ISO 1085, ISO 10102
With flat heads
Anti-glare matt surface.

Technical specifications

DIN 3110; ISO 3318; ISO 1085; ISO 10102
Spanner size:19x22
Head width 1:43.0 mm
Head height 1:7 mm
Head width 2:48.5 mm
Jaw position 15°

Product type: Double-ended open ring spanner

Spanner size: 19 mm

Length: 236 mm

Material: Chromium-vanadium steel

DIN standard: DIN 3110

Weight: 0.219 kg

Height: 300 mm

Width: 300 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3220570 Gedore 6 19X22 Doppelmaulschlüssel 19x22mm DIN3110 flach Gedore Double-ended open ring spanner Spanner size (metric) 19

Description

Design according to DIN 3110, ISO 3318, ISO 1085, ISO 10102. With flat heads. Anti-glare matt surface. Maul: Precision ground to exact nominal diameter for optimum contact surfaces. Secure grip through slim profile shaft. Overloading is indicated by deformation. High-quality industrial grade for hard continuous use. Chrome-vanadium steel 31CrV3

This text is machine translated.
