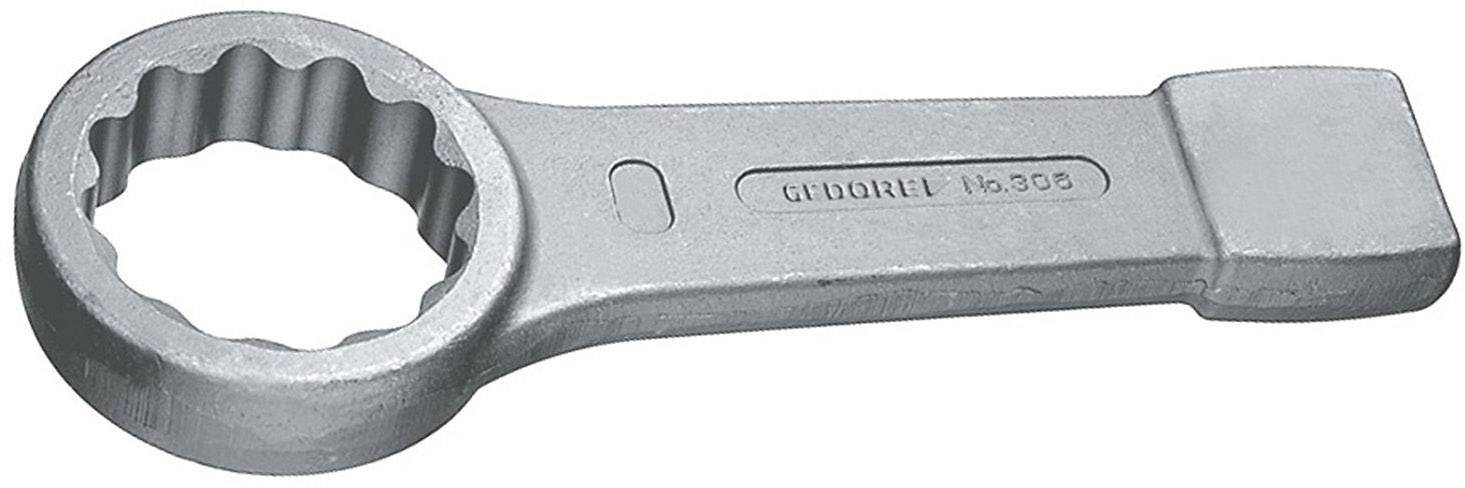

Gedore 6476320 306 75 Impact ring spanner Spanner size (metric) 75 mm
EAN:
Part number:
Item no:
Number
Total (€ 105.03 / piece)
€ 105.03
plus VAT.
Technical specifications
- Design according to DIN 7444
- Design according to DIN 7462 A
- To length 435 mm made from chrome vanadium steel 31 CrV3, from length 480 mm from material C35
- For particularly heavy assembly
- High-grade industrial quality for tough continuous stress
- Special sizes available on request up to SW 250 mm
- Product type
Impact ring spanner
- Spanner size
75 mm
- Length
325 mm
- Material
Chromium-vanadium steel
- Material properties
oiled
- Width
110 mm
- Height
35 mm
- DIN standard
DIN 7444
- Weight
3.015 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1906106 Gedore 6476320 306 75 Impact ring spanner Spanner size (metric) 75 mm
Information
Information 1906106 Gedore 6476320 306 75 Impact ring spanner Spanner size (metric) 75 mm
Description
Features
- Acc. to DIN 7444
- Up to length 435 mm chrome-vanadium steel 31CrV3, above 480 mm from C35
