1/3

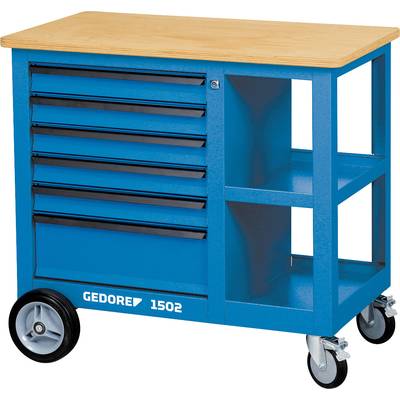

Gedore 6620620 Mobile bench (W x H x D) 950 x 870 x 550 mm Blue
EAN:
Part number:
Item no:
Number
Total (€ 1,310.08 / piece)
€ 1,310.08
plus VAT.
Technical specifications
- Body:
- Dimensions: 875 x W 950 x H 550 mm T;
- 25 mm thick multiplex reserve layer wooden plate, surface through linseed oil varnish additionally protected;
- Large, freely accessible files for bulky parts;
- Security through heel protection for persons;
- Sheet steel, corrosion-resistant and scratch-resistant powder-coated, GEDORE blue;
- Drawers:
- Central locking with cylinder lock;
- 6 Width drawers (B480 x T400 mm) with full extension, removable;
- Safety lock per drawer, single-handed operation;
- Ball-bearing guide rails;
- Individual configuration by longitudinal and cross dividers (also available individually);
- Load capacity per drawer 40 kg, lower heavy load tray 60 kg;
- Sheet steel, corrosion-resistant and scratch-resistant powder-coated, GEDORE blue;
- GEDORE high-performance chassis:
- Total load capacity 700 kg, in the mobile operation 500 kg;
- 2 rollers GEDORE high-performance wheels (rollers diameter 200 mm);
- 2 ball-bearing GEDORE smooth running wheels (steering wheels Ø 125 mm), both with total hard plate;
- GEDORE trapezium axle construction provides even at maximum load: smooth running, agility, and track
- Accessories:
- 2 Spacer modules no. 1500 ED-70 K;
- 10 length-wise (LT) and 2 cross dividers (QT) made of galvanized steel
- Dim
(W x H x D) 950 x 870 x 550 mm
- Product type
Mobile bench
- Width
950 mm
- Thickness (worktop)
25 mm
- Height
870 mm
- Inside dimensions (H x W x D) mm
480 mm x 400 mm
- Factory colour
Blue
- Depth
550 mm
- Weight
85 kg
- No. of drawers
6
- Max. height
870 mm
- Material
Steel plate
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1906812 Gedore 6620620 Mobile bench (W x H x D) 950 x 870 x 550 mm Blue
Information
Information 1906812 Gedore 6620620 Mobile bench (W x H x D) 950 x 870 x 550 mm Blue
Description
Features
- Body:
- Dimensions: H 875 x W 950 x D 550 mm
- 25 mm thick multiplex beech wood worktop, surface additionally protected by linseed oil varnish
- Large, easily-accessible spaces for bulky parts
- Heel protection for your safety
- Sheet steel, corrosion resistant and scratch-proof powder-coated, GEDORE blue Drawers:
- Central locking with cylinder lock
- 6 wide drawers (W 480 x D 400 mm) fully extendable, removable
- Each drawer with safety locking, single-hand operation
- Ball-bearing guide rails
- Can be individually equipped with lengthwise and crosswise dividers (can be ordered individually)
- Load capacity per drawer 40 kg, bottom heavy-duty drawer 60 kg
- Sheet steel, corrosion resistant and scratch-proof powder-coated, GEDORE blue GEDORE High-performance chassis:
- Total load capacity 700 kg, 500 kg when mobile
- 2 high-performance wheels on roller bearings (fixed castors Ø 200 mm)
- 2 smooth running wheels on ball bearings (swivel castors Ø 125 mm), both with total brake
- The GEDORE trapezoidal axle construction secures smooth running, manoeuvrability and track-keeping also in case of maximum loads Accessories:
- 2 distance modules No. 1500 ED-70 K
- 10 length- (LT) and 2 crosswise (QT) dividers from zinc-plated sheet steel Options:
- Can be equipped with GEDORE tool modules (1500 ES/1500 CT)
- Special colours and designs available on request
- Delivery without tools and accessories
Hints
Supplied without tools and accessories.
