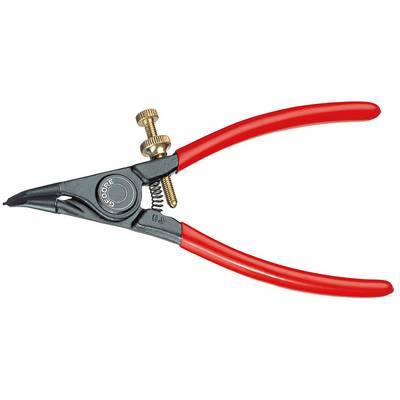

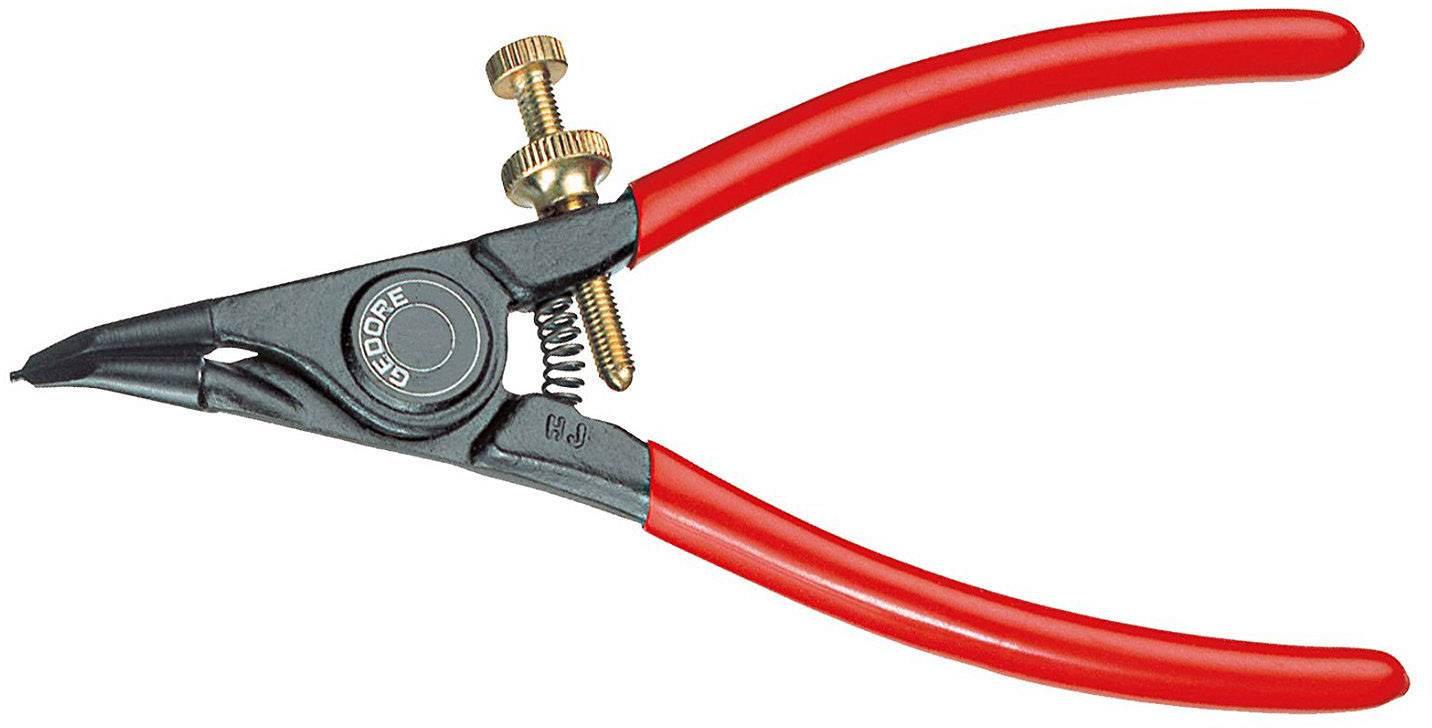

Gedore 6700300 Installation tools Suitable for Outer rings 10-15 mm Tip shape (details) Straight
EAN:
Part number:
Item no:
Number
Total (€ 30.24 / piece)
€ 30.24
plus VAT.
14-day return policy included
Technical specifications
- Form A, tip diameter: 1.8 mm
- Product type
Installation tools
- Manufacturer part #
6700300
- Suitable for
Outer rings
- Suitable for shaft diameters of
10-15 mm
- Length
182 mm
- Jaw length
57 mm
- Material
Chromium-vanadium steel
- DIN standard
DIN 5254-A
- Weight
189 g
- Tip shape
Straight
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1907602 Gedore 6700300 Installation tools Suitable for Outer rings 10-15 mm Tip shape (details) Straight
Information
Information 1907602 Gedore 6700300 Installation tools Suitable for Outer rings 10-15 mm Tip shape (details) Straight
Description
Features
- For shafts without groove
- For retaining rings Seeger as well as Benzing
- Similar to DIN 5254 Form A
- A 0G - A 1G = tips angled 30°
- A 2G = straight tips
- With opening spring and adjusting screw to limit opening
- High degree of assembly reliability, the limit opening rules out any over-tensioning of the smallest of retaining rings
- Forged GEDORE chrome-vanadium special hardened and tempered steel
- Precision machined, oil hardened and annealed
- Black, with red dipped handles
