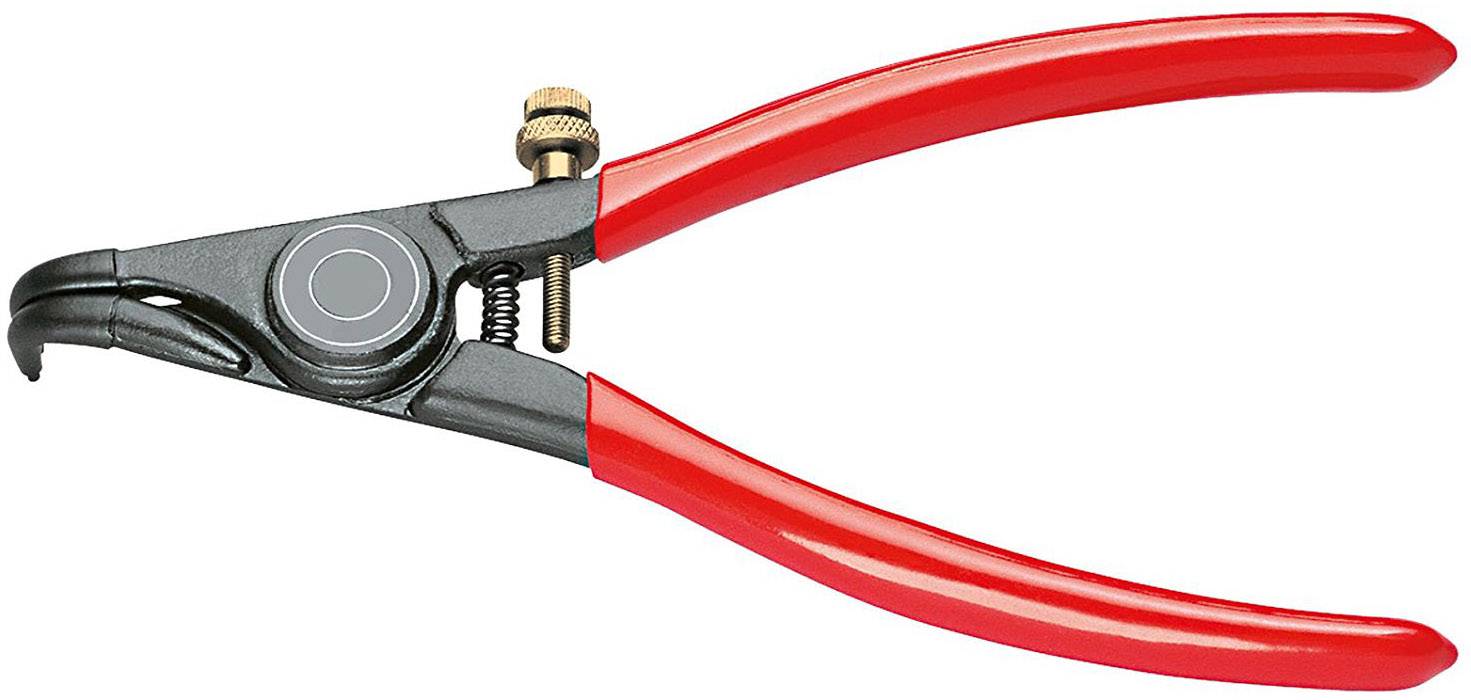

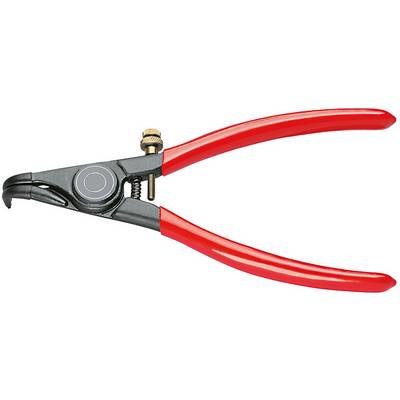

Gedore 6700650 Installation tools Suitable for Outer rings 1.5-3.5 mm Tip shape (details) 90° angle
EAN:
Part number:
Item no:
Number
Total (€ 27.72 / piece)
€ 27.72
plus VAT.
Only 1 Piece(s) available
Technical specifications
- Form B, tip diameter: 0.7 mm
- Product type
Installation tools
- Manufacturer part #
6700650
- Suitable for
Outer rings
- Suitable for shaft diameters of
1.5-3.5 mm
- Length
134 mm
- Jaw length
33 mm
- Material
Chromium-vanadium steel
- DIN standard
DIN 5254-B
- Weight
100 g
- Tip shape
90° angle
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1907603 Gedore 6700650 Installation tools Suitable for Outer rings 1.5-3.5 mm Tip shape (details) 90° angle
Information
Information 1907603 Gedore 6700650 Installation tools Suitable for Outer rings 1.5-3.5 mm Tip shape (details) 90° angle
Description
Features
- For shafts without groove
- For retaining rings Seeger as well as Benzing
- Similar to DIN 5254 Form B
- 90° angled tips
- With opening spring and adjusting screw to limit opening
- High degree of assembly reliability, the limit opening rules out any over-tensioning of the smallest of retaining rings
- Forged GEDORE chrome-vanadium special hardened and tempered steel
- Precision machined, oil hardened and annealed
- Black, with red dipped handles
