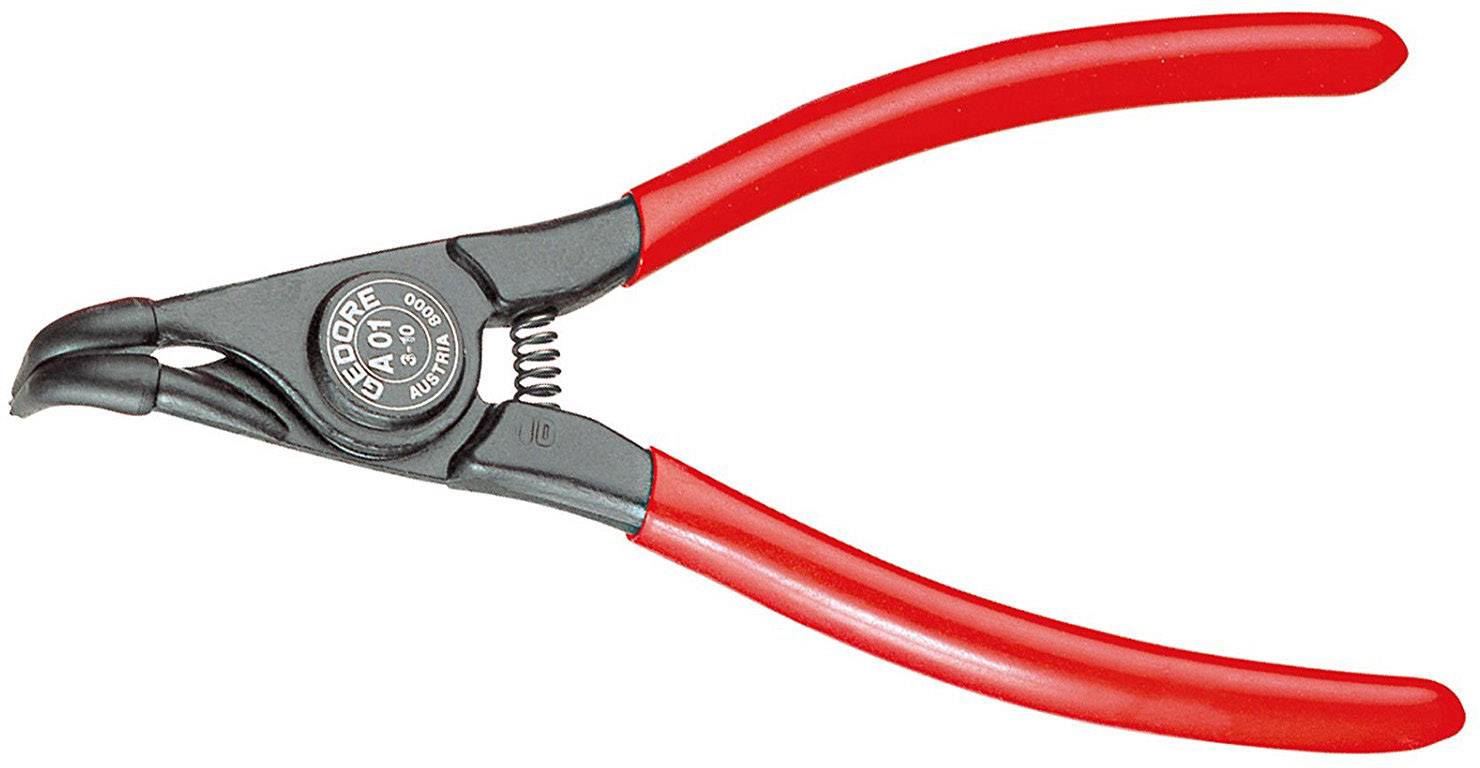

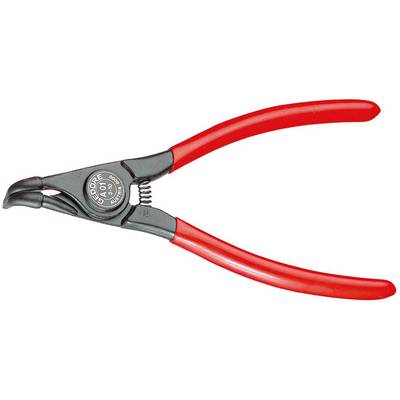

Gedore 6702510 Installation tools Suitable for Outer rings 40-100 mm Tip shape (details) 90° angle
EAN:
Part number:
Item no:
Number
Total (€ 19.32 / piece)
€ 19.32
plus VAT.
Only 8 Piece(s) available
Technical specifications
- Form B, tip diameter: 2.3 mm
- Product type
Installation tools
- Manufacturer part #
6702510
- Suitable for
Outer rings
- Suitable for shaft diameters of
40-100 mm
- Length
210 mm
- Jaw length
53 mm
- Material
Chromium-vanadium steel
- DIN standard
DIN 5254-B
- Weight
317 g
- Tip shape
90° angle
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1907609 Gedore 6702510 Installation tools Suitable for Outer rings 40-100 mm Tip shape (details) 90° angle
Information
Information 1907609 Gedore 6702510 Installation tools Suitable for Outer rings 40-100 mm Tip shape (details) 90° angle
Description
Features
- For retaining rings as per DIN 471, DIN 983
- DIN 5254 Form B
- 90° angled tips
- With opening spring
- With clamping protection
- Forged GEDORE chrome-vanadium special hardened and tempered steel
- Precision machined, oil hardened and annealed
- Black, with red dipped handles
