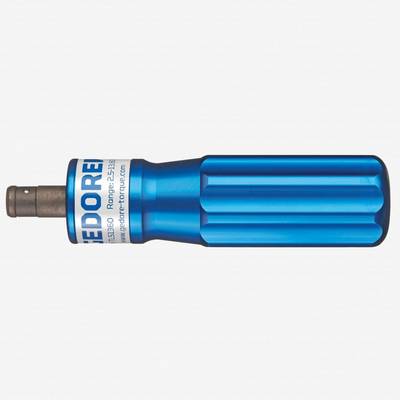

Buy Gedore 755-05 Workshop Torque screwdriver 2.8 - 13.6 Nm DIN EN ISO 6789

Image similar

Dispatches on Fri, 9 Oct

33 Piece(s)

Sales and shipping:

Piece(s)

Total (€ 147.05 / piece)

€ 147.05

plus VAT.

14-day return policy included

Technical specifications

Application:
Controlled Screw Tighten
Series mounting with constant value suit
Electronics industry, precision mechanics and industrial manufacturing
Construction:
Adjustable torque screwdriver - without scale
With 1/4" inner hexagonal holder for operating 1/4" bits to DIN 3126 - C 6.3
With adapter also suitable for 1/4" socket wrench inserts according to DIN 3124
Tripping accuracy: +/- 6 % tolerance of set value
Design according to DIN EN ISO 6789, traceable to national normal
Precision round ball coupling for controlled right and left pull
Precision mechanism glides noticeably upon reaching the set value
Automatic reset to the initial position
Lightweight design thanks to anodized aluminum handles
The fixed adjustment can be carried out at the factory or on suitable test equipment by hand.
Delivery scope
Type 755 torque screwdriver
1/4" adapter drive piece (No. 757-20
Model No. 755-05 with additional cross-grip for ease of use
Test certificate according to DIN EN ISO 6789
Supplied in sturdy cardboard

User & Safety Instructions 1908293 Gedore 755-05 Workshop Torque screwdriver 2.8 - 13.6 Nm DIN EN ISO 6789

Information 1908293 Gedore 755-05 Workshop Torque screwdriver 2.8 - 13.6 Nm DIN EN ISO 6789

Use:
Controlled screw tightening in the range 0.04 - 13.6 N
m
Serial manufacture with constant tightening value
Electronic industry, precision mechanics and industrial manufacturing Features:
Pre-set torque screwdriver without a scale
With 1/4" female hexagon drive for use with 1/4" hexagon bits as per DIN 3126 - C 6.3
With adaptor also suitable for 1/4" square drive sockets as per DIN 3124
Working accuracy: +/- 6 % tolerance of the set torque
Acc. to DIN EN ISO 6789, traceable to national standards
Precision radial ball clutch and cam design for controlled bi-directional tightening
Precision mechanism slips very noticeably through when the set torque is reached
Automatic resetting to the starting position
Lightweight construction by virtue of anodised aluminium handgrips
The pre-setting can be made at the factory or by the user on suitable torque testers
If ordering, please specify the N
m value - if a fixed factory setting is desired (price on request) Scope of delivery:
Torque screwdriver type 755
1/4" square/hexagon drive adaptor (no. 757-20)
Model 755-05 with additional removable T-bar for ease of use
Test certificate acc. to DIN EN ISO 6789
Delivered in sturdy cardboard packaging
