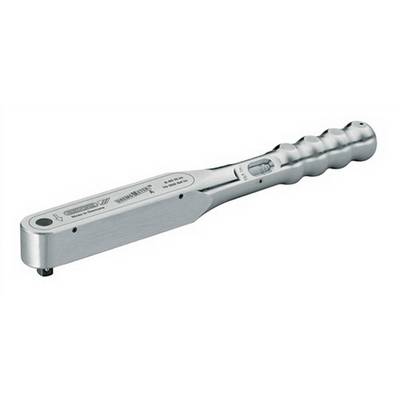

Gedore 7566-01 1210947 Torque wrench Calibrated to (DAkkS standards) Slipping 1/2" (12.5 mm) 25 - 120 Nm
EAN:
Part number:
Item no:
Number
Total (€ 373.95 / piece)
€ 373.95
plus VAT.
14-day return policy included
Technical specifications
- 7566-01 - GEDORE - Torque wrench DREMOMETER BL A+S 1/2" 25-120 Nm
- Technical advantage/function:
- Locking and securing (A+S) prevents accidental or manipulated adjustment, thus more process safety
- for the user classified according to DIN EN ISO 6789:2003 Type II Class A, with a traceable factory certificate. Calibrated for a permissible deviation of +/- 3 % and better. The specification of the standard (+/- 4 %) is easily exceeded for your safety
- , but robust (since housing made of one piece of aluminum) and insensitive, very workshop-friendly
- no value shifts and influence of the accuracy by working both-handed or operating outside the grip (as with conventional torque wrenches).
- Both the drive square as a pivot point are in an axis thus highly reliable for use, Extendable to work load of the user reduce
- extremely low wear by reducing the force of the lever mechanics
- forged lever chain from the Group's own quality forge
- highest precision even with strong continuous use
- long life and long service life
- simple operation - fast and safe torque tightening
- simple and double square for controlled right or left-handed tightening
- Use:
- Controlled screw suit in the range of 6 - 3000 N
- m
- Use in almost all industrial production areas
- Design:
- With certificate according to DIN EN ISO 6789, traceable to the national standard via the company's own DAkkS laboratory
- Automatic short-travel release with sensitive and audible signal
- Double scale with corresponding scale division (see table)
- Type B, BC, C
- with push button release Fixed threshing meter for series production, Where the same value must be set If
- factory default setting is required, please specify N
- m value when ordering (price on request)
- Product type
Torque wrench
- Features
Slipping
- Downforce
1/2" (12.5 mm)
- Torque (min.)
25 Nm
- Torque (max.)
120 Nm
- Trigger accuracy
3 %
- Graduation
5 Nm
- Length
450 mm
- DIN standard
DIN EN ISO 6789-2:2017
DAkkS standards
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1908470 Gedore 7566-01 1210947 Torque wrench Calibrated to (DAkkS standards) Slipping 1/2" (12.5 mm) 25 - 120 Nm
Information
Information 1908470 Gedore 7566-01 1210947 Torque wrench Calibrated to (DAkkS standards) Slipping 1/2" (12.5 mm) 25 - 120 Nm
Description
Features
- Technical advantage/function:
- Pre-set value locking and safety device (A+S) eliminates the possibility of unintentional or manipulated adjustment, thereby representing more process reliability of the user
- Classified to DIN EN ISO 6789:2017 Type II Class A, with a factory certificate. Working accuracy: +/- 3 % tolerance of scale set torque. The specification of the standard (+/- 4 %) is exceeded.
- Lightweight and robust (as housing is made of an aluminium alloy), very workshop-friendly
- No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches). Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load.
- Extremely low wear attributable to reduced forces in a unique lever mechanism
- Forged lever chain from our own quality forge
- Maximum precision even when subjected to extreme continuous use
- Long life cycles and tool lives
- Easy operation - fast and safe torque tightening
- Single- and double-square drive for controlled bi-directional tightening Use:
- Controlled screw tightening in the range 6 - 3000 N
- m
- For use in almost all industrial manufacturing areas Features:
- With certificate acc. to DIN EN ISO 6789, traceable via in-house DAkkS laboratory to national standards
- Automatic short-path actuation with tactile impulse and audible signal
- Dual scale with corresponding scale graduation (see table)
- Type B, BC, C with push-button release
- Pre-set DREMOMETER for serial production wherever the same value always needs to be applied
- The pre-setting can be made at the factory or by the user on suitable torque testers
- If ordering, please specify the N
- m value - if a fixed factory pre-setting is desired (price on request)
