Gedore 758-50 Torque screwdriver 100 - 500 Nm DIN EN ISO 6789
EAN:
Part number:
Item no:
Number
Total (€ 239.50 / piece)
€ 239.50
plus VAT.
14-day return policy included
Technical specifications
- Application:
- For testing and assembly work in the electrical, electronics, apparatus construction and industrial production or in quality control
- Execution:
- Indicator torque-test screwdriver - with double scale (CN
- m / ozf
- in or lbf
- in)
- with 1/4" Allen key socket for actuating 1/4" bits according to DIN 3126 - C 6.3
- with adapter also suitable for 1/4" socket wrench inserts according to DIN 3124
- Display accuracy: +/- 6 %Tolerance of the displayed value
- Execution according to DIN EN ISO 6789, Traceable to national normal
- for controlled right and left suit
- with drag indicator function in both working directions
- for locking maximum values/maximum value display
- 4 models in the range of 0.1 N
- m to 5.0 N
- m
- light construction
- by anodized aluminum handles EPA (Electrostatic Protected Area) compliant,
- for use in electrostatically sensitive applications Delivery scope:
- Torque test screwdriver type 758
- 1/4" adapter drive piece (No. 757-20)
- Models No. 758-25/-50 with additional cross-grip for easier work
- Test certificate according to DIN EN ISO 6789
- Delivery in stable cardboard
- Contents:
- 757-20
- Product type
Torque screwdriver
- Drive
1/4"
- Torque (min.)
100 Nm
- Torque (max.)
500 Nm
- Tolerance ±
6 %
- Length
250 mm
- Handle length
285 mm
- Height
64 mm
- Weight
465 g
- DIN standard
DIN EN ISO 6789
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1909575 Gedore 758-50 Torque screwdriver 100 - 500 Nm DIN EN ISO 6789
Information
Information 1909575 Gedore 758-50 Torque screwdriver 100 - 500 Nm DIN EN ISO 6789
Description
Features
- Use:
- In the torque range 0.1 - 5.0 N
- m
- For test and installation work in the electrical and electronic hardware industry, instrument-making industry and industrial manufacturing or in quality control Features:
- Dial-indicating torque and test screwdriver - with dual scale (cN
- m/ozf
- in/lbf
- in)
- With 1/4" female hexagon drive for use with 1/4" hexagon bits as per DIN 3126 - C 6.3
- With adapter also suitable for 1/4" square drive sockets as per DIN 3124
- Display accuracy: +/- 6 % tolerance of the indicated value
- Acc. to DIN EN ISO 6789, traceable to national standards
- For controlled bi-directional tightening
- With slave-pointer function
- For locking of maximum values / maximum-value display
- 4 models in the range 0.1 N
- m to 5.0 N
- m
- Lightweight construction by virtue of anodised aluminium handgrips
- EPA-conformant (Electrostatic Protected Area), for use in sensitive electrostatic applications Scope of delivery:
- Torque screwdriver type 758
- 1/4" square/hexagon drive adapter (no. 757-20)

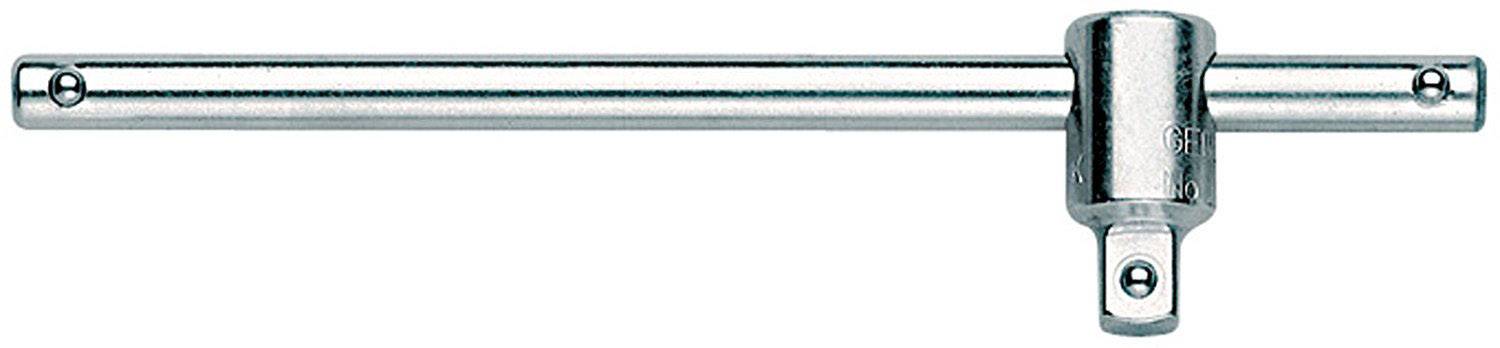

- Models 758-25/-50 with additional sliding T-bar for ease of use
- Test certificate acc. to DIN EN ISO 6789
- Delivered in sturdy cardboard packaging
