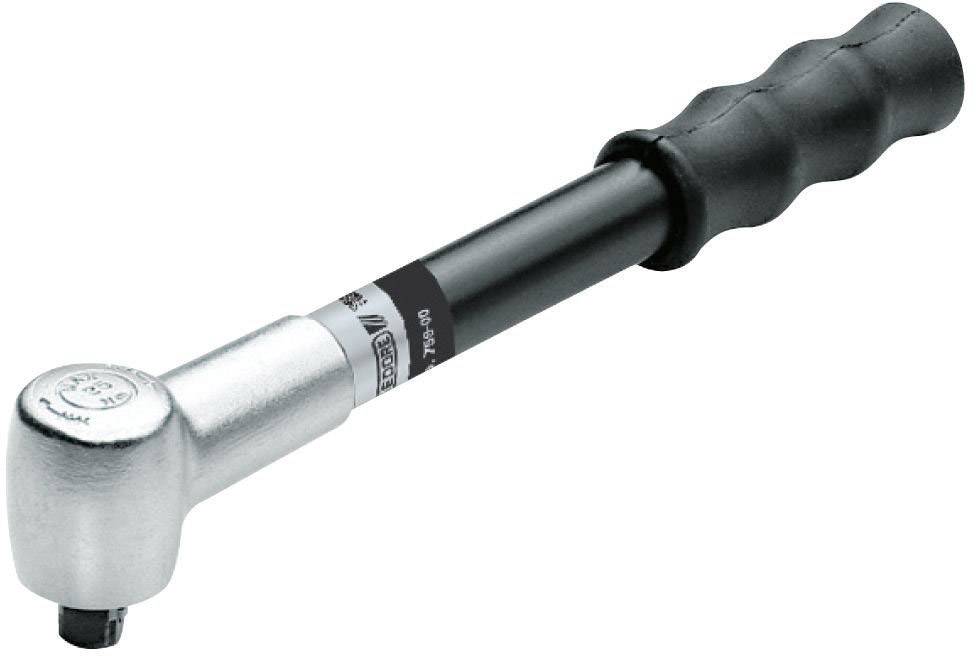

Gedore 759-00 7091900 Torque wrench 1/4" (6.3 mm) 5 - 25 Nm
EAN:
Part number:
Item no:
Number
Total (€ 293.28 / piece)
€ 293.28
plus VAT.
14 days return policy included
Technical specifications
- 759-00 - GEDORE - TSN 1/4" torque wrench, 5-25 Nm
- Application:
- Controlled screw suit
- Serial or assembly line
- extreme continuous use
- Execution:
- Fixed torque wrench - without scale
- 1/4", 3/8" or 1/2" square drive with ball lock
- with integrated ratchet function for the controlled right-handed suit
- Trigger accuracy: +/- 4 % tolerance of the set value
- Execution according to DIN EN ISO 6789, traceable to national normal
- precision mechanism glides clearly upon reaching the set value and audible CLICK through - a overtightening is not possible
- Automatic reset to the starting position
- light, However, stable and corrosion-resistant design
- very handy and non-slip rubber grip
- The fixed setting can be made in the factory or manually on suitable test equipment
- If factory-set is desired, please specify N
- m value when ordering (price on request)
- EPA (Electrostatic Protected Area) compliant,
- for use in electrostatically sensitive applications Delivery includes:
- Torque wrench type TSP SLIPPER
- adjustment tool to change the fixed value
- Test certificate according to DIN EN ISO 6789
- Delivery in sturdy cardboard
- Product type
Torque wrench
- Downforce
1/4" (6.3 mm)
- Torque (min.)
5 Nm
- Torque (max.)
25 Nm
- Length
216 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1908294 Gedore 759-00 7091900 Torque wrench 1/4" (6.3 mm) 5 - 25 Nm
Information
Information 1908294 Gedore 759-00 7091900 Torque wrench 1/4" (6.3 mm) 5 - 25 Nm
Description
Features
- Use:
- Controlled screw tightening in the range 5 - 125 N
- m
- Serial / production-line assembling
- Extremely long-term work Features:
- Pre-set production torque wrench - without scale
- 1/4", 3/8" or 1/2" square drive with ball locking device
- With integrated ratchet-function for controlled clockwise tightening
- Working accuracy: +/- 4 % tolerance of the set torque
- Acc. to DIN EN ISO 6789, traceable to national standards
- Precision mechanism slips very noticeably and audibly ("click") when the pre-set value is achieved - over-tightening is not possible
- Automatic resetting to the starting position
- Lightweight yet robust and corrosion-resistant construction design
- Very convenient non-slip rubber handgrip
- The pre-setting can be made at the factory or by the user on suitable torque testers
- If ordering, please specify the N
- m value - if a factory pre-setting is desired (price on request)
- EPA-conformant (Electrostatic Protected Area), for use in sensitive electrostatic applications Scope of delivery:
- Torque wrench type TSN SLIPPER
- Special adjusting key for changing the pre-set torque value
- Test certificate acc. to DIN EN ISO 6789
- Delivered in sturdy cardboard packaging
