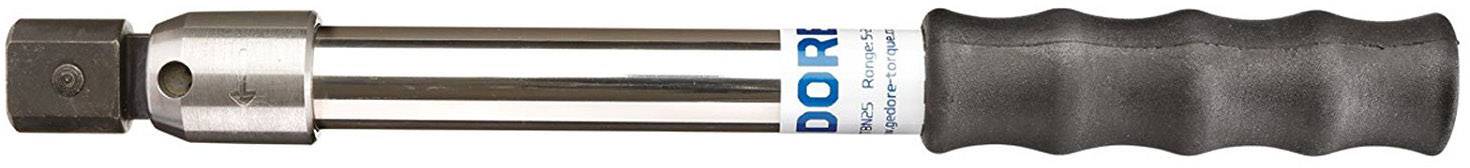

Gedore 760-35 1824694 Torque wrench Calibrated to (ISO standards) Slipping 9 x 12 mm 5 - 25 Nm
EAN:
Part number:
Item no:
Number
Total (€ 210.08 / piece)
€ 210.08
plus VAT.
14 days return policy included
Technical specifications
- 760-35 - GEDORE - Knicking torque wrench TBN 9x12 mm 5-25 Nm
- Application:
- Controlled screw suit
- Serial or assembly line
- extreme continuous use
- Execution:
- Fixed torque wrench - without scale
- with 9x12 mm inside square socket
- for right and left tightening (wrench only has to be turned by 180°!)
- Trigger accuracy: +/- 4 % Tolerance of the set value
- Execution according to DIN EN ISO 6789, traceable to national normal
- folding of the handle up to 20° when reaching the torque value, makes a overdraw unlikely
- Automatic reset to the starting position
- light, but stable and corrosion-proof construction
- very handy and slip-proof rubber grip
- No. 760-00/-01: EPA (Electrostatic Protected Area) compliant,
- for use in electrostatically sensitive applications the fixed setting can be done in the factory or manually on suitable test equipment
- If factory setting is desired, please specify N
- m value when ordering (price on request)
- Delivery scope:
- Torque wrench TBN KNICKER
- adjustment tool to change the fixed value
- Test certificate according to DIN EN ISO 6789
- Delivery in sturdy cardboard
- Product type
Torque wrench
- Features
Slipping
- Downforce
9 x 12 mm
- Torque (min.)
5 Nm
- Torque (max.)
25 Nm
- Trigger accuracy
4 %
- Length
265 mm
- DIN standard
DIN EN ISO 6789
- Weight
405 g
ISO standards
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1909583 Gedore 760-35 1824694 Torque wrench Calibrated to (ISO standards) Slipping 9 x 12 mm 5 - 25 Nm
Information
Information 1909583 Gedore 760-35 1824694 Torque wrench Calibrated to (ISO standards) Slipping 9 x 12 mm 5 - 25 Nm
Description
Features
- Use:
- Controlled screw tightening in the range 0.4 - 135 N
- m
- Serial / production-line assembling
- Extremely long-term work Features:
- Pre-set production torque wrench - without scale
- With 9x12 mm rectangular-cavity-end or 16 mm spigot-end
- For bi-directional tightening (the wrench only has to be turned by 180°!)
- Working accuracy: +/- 4 % tolerance of the set torque
- Acc. to DIN EN ISO 6789, traceable to national standards
- Breaking of the handgrip by 20° (90° also possible in the case of no. 760-00/-01) when the pre-set torque value is achieved makes over-tightening unlikely
- Automatic resetting to the starting position
- Lightweight yet robust and corrosion-resistant construction design
- Very convenient non-slip rubber handgrip
- No. 760-00/-01: EPA (Electrostatic Protected Area) compliant
- The pre-setting can be made at the factory or by the user on suitable torque testers
- If ordering, please specify the N
- m value - if a fixed factory pre-setting is desired (price on request) Scope of delivery:
- TBN breaking torque wrench
- Adjusting tool for changing the pre-set torque value
- Test certificate acc. to DIN EN ISO 6789
- Delivered in sturdy cardboard packaging
