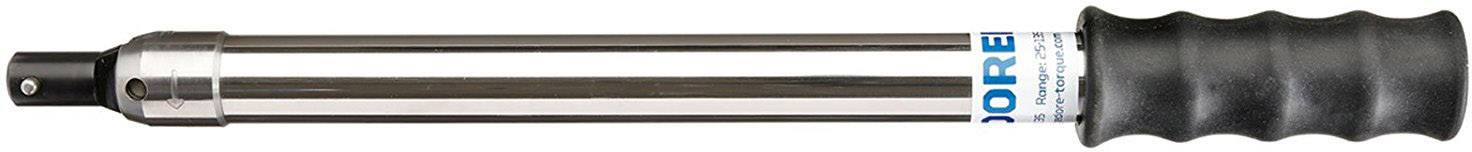

Gedore 760-50 1824724 Torque wrench Calibrated to (ISO standards) Slipping 27 - 135 Nm
EAN:
Part number:
Item no:
Number
Total (€ 234.45 / piece)
€ 234.45
plus VAT.
Only 1 Piece(s) available
Technical specifications
- 760-50 - GEDORE - Knick torque wrench TBN 16 mm 27-135 Nm
- Application:
- Controlled screw suit
- Serial or assembly line
- extreme continuous use
- Design:
- Fixed torque wrench - without scale
- with 16 mm pin for
- right and left tightening (key only has to be turned by 180°!)
- Trigger accuracy: +/- 4 % Tolerance of the set value
- Execution according to DIN EN ISO 6789, traceable to national normal
- folding of the handle up to 20° when the torque value is reached, makes overdrawing unlikely
- Automatic resetting
- to the starting position easy, However, stable and corrosion-resistant design
- very handy and non-slip rubber grip
- The fixed setting can be made in the factory or manually on suitable test equipment
- If factory-set is desired, please specify N
- m value when ordering (price on request)
- Delivery scope:
- Torque wrench TBN KNICKER
- adjustment tool to change the fixed value
- Test certificate according to DIN EN ISO 6789
- Delivery in sturdy cardboard
- Product type
Torque wrench
- Features
Slipping
- Torque (min.)
27 Nm
- Torque (max.)
135 Nm
- Trigger accuracy
4 %
- Length
408 mm
- DIN standard
DIN EN ISO 6789
ISO standards
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1909586 Gedore 760-50 1824724 Torque wrench Calibrated to (ISO standards) Slipping 27 - 135 Nm
Information
Information 1909586 Gedore 760-50 1824724 Torque wrench Calibrated to (ISO standards) Slipping 27 - 135 Nm
Description
Features
- Use:
- Controlled screw tightening in the range 0.4 - 135 N
- m
- Serial / production-line assembling
- Extremely long-term work Features:
- Pre-set production torque wrench - without scale
- With 9x12 mm rectangular-cavity-end or 16 mm spigot-end
- For bi-directional tightening (the wrench only has to be turned by 180°!)
- Working accuracy: +/- 4 % tolerance of the set torque
- Acc. to DIN EN ISO 6789, traceable to national standards
- Breaking of the handgrip by 20° (90° also possible in the case of no. 760-00/-01) when the pre-set torque value is achieved makes over-tightening unlikely
- Automatic resetting to the starting position
- Lightweight yet robust and corrosion-resistant construction design
- Very convenient non-slip rubber handgrip
- No. 760-00/-01: EPA (Electrostatic Protected Area) compliant
- The pre-setting can be made at the factory or by the user on suitable torque testers
- If ordering, please specify the N
- m value - if a fixed factory pre-setting is desired (price on request) Scope of delivery:
- TBN breaking torque wrench
- Adjusting tool for changing the pre-set torque value
- Test certificate acc. to DIN EN ISO 6789
- Delivered in sturdy cardboard packaging
