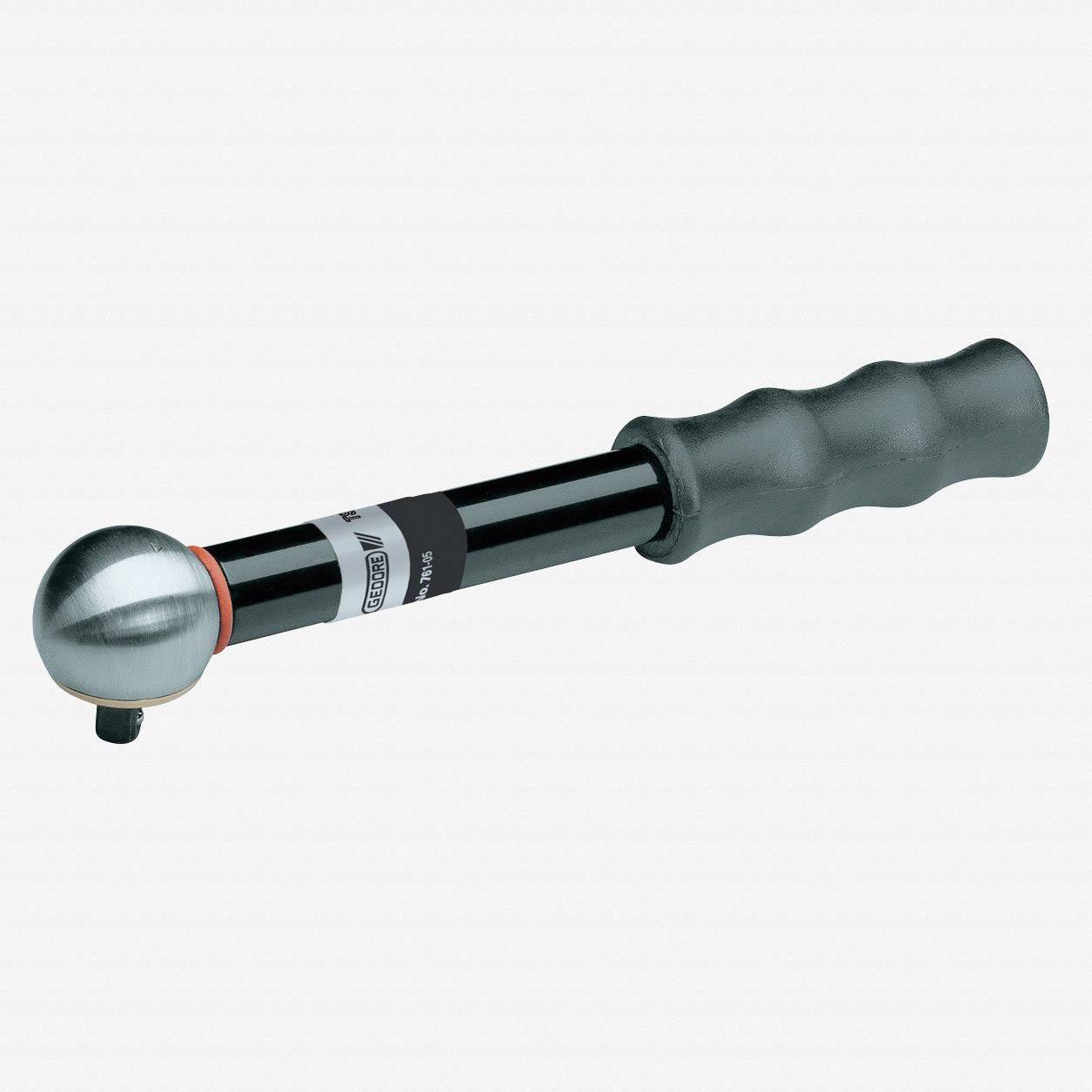

Gedore 761-05 1196650 Torque wrench 1/4" (6.3 mm) 1 - 5 Nm
EAN:
Part number:
Item no:
Number
Total (€ 231.09 / piece)
€ 231.09
plus VAT.
Technical specifications
- 761-05 - GEDORE - Torque wrench TSP SLIPPER 1/4", 1-5 Nm
- Insert:
- Controlled screw suit
- ideal for assembly work, in which small torques must be tightened in a controlled manner (e.g. Electronics industry, precision mechanics, etc.)
- Design:
- Fixed adjustable torque wrench - without scale
- 1/4" square drive with ball lock
- with integrated ratchet function for the controlled right-handed suit
- Trip accuracy: +/- 6 % Tolerance of the set value
- Execution according to DIN EN ISO 6789, Traceable to national normal
- precision mechanism glides clearly when the set value is reached and audible CLICK through - overdrawing is not possible
- Automatic resetting to the starting position
- 2 models
- in the range of 1 - 10 N
- m light, However, stable and corrosion-resistant design
- very handy and non-slip rubber grip EPA (Electrostatic Protected Area) compliant,
- for use in electrostatically sensitive applications the fixed setting can be done in the factory or manually on suitable test equipment
- If factory-fixed setting is desired, please specify N
- m value when ordering (price on request)
- Delivery scope:
- Torque wrench type TSP SLIPPER
- adjustment tool to change the fixed value
- Test certificate according to DIN EN ISO 6789
- Delivery in sturdy cardboard
- Product type
Torque wrench
- Downforce
1/4" (6.3 mm)
- Torque (min.)
1 Nm
- Torque (max.)
5 Nm
- Length
185 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1909587 Gedore 761-05 1196650 Torque wrench 1/4" (6.3 mm) 1 - 5 Nm
Information
Information 1909587 Gedore 761-05 1196650 Torque wrench 1/4" (6.3 mm) 1 - 5 Nm
Description
Features
- Use:
- Controlled screw tightening in the range 1 - 10 N
- m
- Ideal for assembly work where controlled tightening with low torque values is required (e.g. electronic hardware sector, precision mechanics etc.) Features:
- Pre-set production torque wrench - without scale
- 1/4" square drive with ball locking device
- With integrated ratchet-function for controlled clockwise tightening
- Working accuracy: +/- 6 % tolerance of the set torque
- Acc. to DIN EN ISO 6789, traceable to national standards
- Precision mechanism slips very noticeably and audibly ("click") when the pre-set value is reached - over-tightening is not possible
- Automatic resetting to the starting position
- 2 models in the range 1 N
- m to 10 N
- m
- Extremely lightweight yet robust and corrosion-resistant construction design
- Very convenient non-slip rubber handgrip
- EPA-conformant (Electrostatic Protected Area), for use in sensitive electrostatic applications
- The pre-setting can be made at the factory or by the user on suitable torque testers
- If ordering, please specify the N
- m value - if a fixed factory pre-setting is desired (price on request) Scope of delivery:
- Torque wrench type TSP SLIPPER
- Adjusting tool for changing the pre-set torque value
- Test certificate acc. to DIN EN ISO 6789
- Delivered in sturdy cardboard packaging
