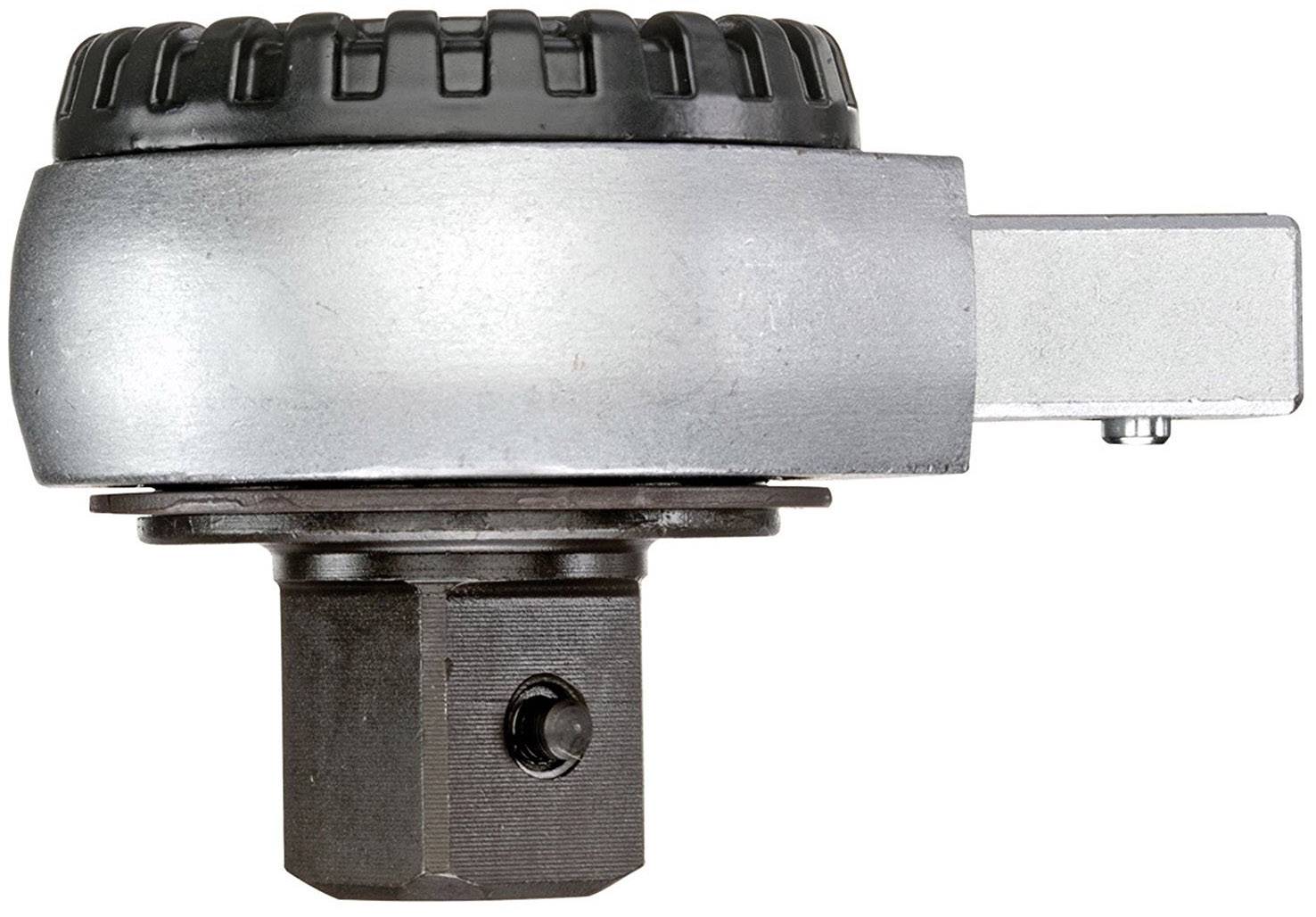

Gedore 7687660 Forward/reverse ratchet socket bit 20 mm
EAN:
Part number:
Item no:
Number
Total (€ 92.43 / piece)
€ 92.43
plus VAT.
Technical specifications
- Reversible ratchet 3/4" plug-in 7418-04-GEDORE SE 14 x 18
- To solve difficult assembly problems, easy to replace
- Forged
- Chromium-vanadium steel.
- Matt chrome-plated
- With pin-securing
- Fine tooth-system
- Return angle: 7°
- Max. Continuous load capacity connection square according to DIN EN ISO 6789:2003 or maximum load of the recording
- No. of teeth
50
- DIN standard
DIN EN ISO 6789
- Material
Chromium-vanadium steel
- Spanner size
20 mm
- Downforce
14 x 18 mm socket square
- Drive
3/4" (20 mm)
- Weight
790
- Content
1 pc(s)
- Material properties
matt chrome plating
- Product type
Forward/reverse ratchet socket bit
- Width
64 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1908452 Gedore 7687660 Forward/reverse ratchet socket bit 20 mm
Information
Information 1908452 Gedore 7687660 Forward/reverse ratchet socket bit 20 mm
Description
Features
- For accessing bolts in cramped and hard-to-reach locations, easy to change
- Forged
- Chrome-vanadium steel, matt chrome-plated
- With eject-pin for unlocking
- Fine-toothed
- Return angle 7 degrees
- Max. continuous load of ratchet according to DIN EN ISO 6789:2003 and/or maximum load of cavity
