Gedore 8000820 Puller Clamping range (details) 350 mm No. of hooks 2
EAN:
Part number:
Item no:
15 Piece(s)
Sales and shipping:
Number
Total (€ 242.86 / piece)
€
Technical specifications

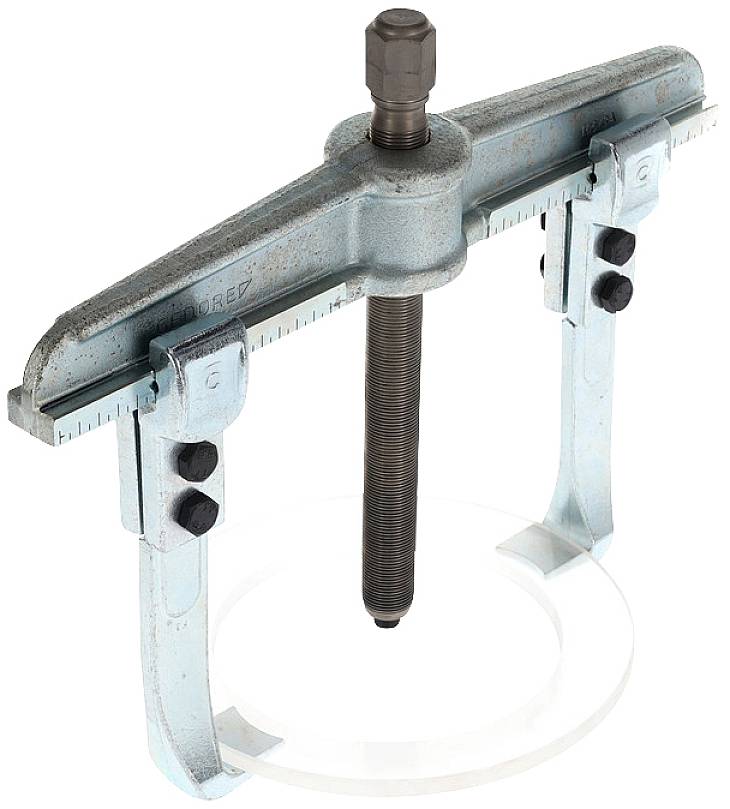

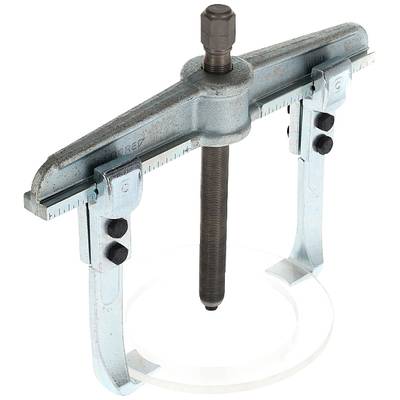

- 1.06/3A - Gedore - Universal extractor 2-arm 350x200 mm
- Max. Span 350 mm external, 125-420 mm internal
- Clamping depth 200 mm
- Proven model for a safe and fast removal of discs, wheels, ball bearings etc.
- Powerful, die-forged design
- Adjustable scale for uniform adjustment of the hook. Allows a centric and force-optimized withdrawal even at the highest withdrawal forces
- Can be used as inner puller by changing the hooks
- Nitrocarburised spindle surface, resistant to wear and corrosion
- Spindle remains free-moving and clean - grease or oil not necessary
- Cross bars can be combined with other spindle/hook designs and lengths of the Gedore puller kit
- Clamping range
350 mm
- Tension/pressure capacity
7.5 t
- Content
1 pc(s)
- Hooks
2
- Product type
Puller
- Span depth (max.)
200 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1908003 Gedore 8000820 Puller Clamping range (details) 350 mm No. of hooks 2
Information
Information 1908003 Gedore 8000820 Puller Clamping range (details) 350 mm No. of hooks 2
Description
Features
- The tried and tested model for the safe and quick removal of pulleys, wheels, ball bearings, etc.
- Strong drop forged design
- Scale for uniform adjustment of the puller legs. Allows centred pulling, with optimised application of force, even when extremely high pulling forces are required
- By reversing the legs, this tool can be used as an internal or external puller
- Extra or replacement legs increase versatility
- Upgradeable with hydraulic spindle (see table)
