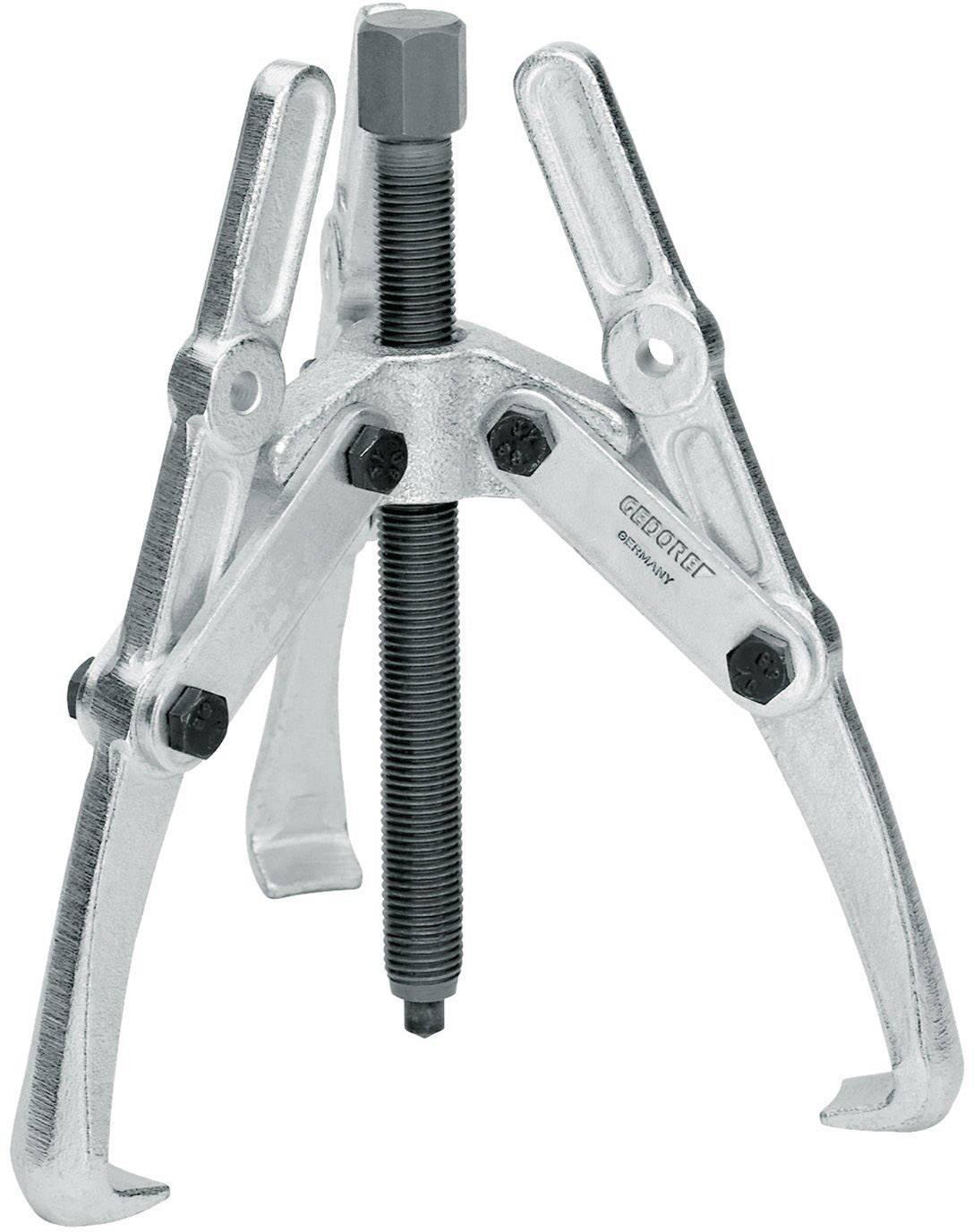

Gedore 8006510 Puller Clamping range (details) 280 mm No. of hooks 3
EAN:
Part number:
Item no:
Number
Total (€ 242.86 / piece)
€ 242.86
plus VAT.
Only 8 Piece(s) available
Technical specifications
- 1.15/4 - 3-arm 280 x 390 mm GEDORE puller
- Tried-and-tested, especially powerful design for removing of discs, wheels, ball bearings, etc.
- Technical and economic benefits through the variable clamping depth and the self-activating pressing the hook
- Particularly suitable for the pull of the v-belt pulleys and flywheels, which sit on long waves.
- Can be retrofitted with hydraulic spindle
- Clamping range
280 mm
- Tension/pressure capacity
12 t
- Content
1 pc(s)
- Hooks
3
- Product type
Puller
- Span width (max.)
280 mm
- Span depth (max.)
390 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1908166 Gedore 8006510 Puller Clamping range (details) 280 mm No. of hooks 3
Information
Information 1908166 Gedore 8006510 Puller Clamping range (details) 280 mm No. of hooks 3
Description
Features
- The reliable, extra-strong model for the removal of pulleys, wheels, ball bearings, etc.
- With technical and economical benefits due to the variable clamping reach and automatic grip of the legs
- Especially suited to removing V-belt pulley wheels and flywheels mounted on longer shafts
- Upgradeable with hydraulic spindle (see table)
