Gedore 8011350 Ball bearing puller
EAN:
Part number:
Item no:
Number
Total (€ 55.45 / piece)
€ 55.45
plus VAT.
14-day return policy included
Technical specifications
- 1.29/4-GEDORE-ball bearing puller M18 x 230
- Spindle size M 18 x 230 mm
- The pull of the ball bearing on shaft and at the same time, sitting in a housing
- The hooks are in the outer ring, depending on the number of balls evenly distributed in the ball basket used
- The Abstutzringe are provided on the bearing inner ring ball bearing set
- Now the bridge with the spindle in the centering of the shaft and the spindle under voltage, the hooks positioning

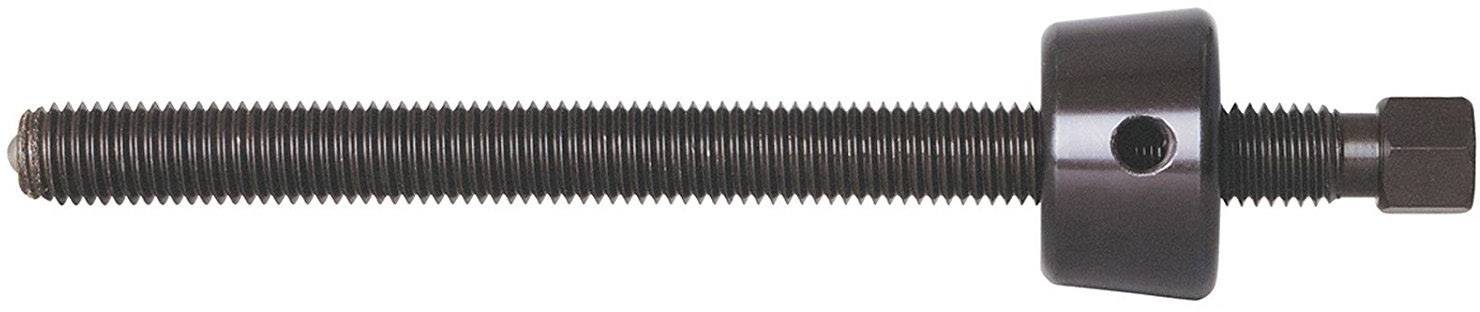

- Delivery: head and spindle
- Dim
(Ø x H) 50 mm x 30 mm
- Weight
0.9 kg
- Content
1 pc(s)
- Max. length
230 mm
- Product type
Ball bearing puller
- Height
30 mm
- (Ø)
50 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1908216 Gedore 8011350 Ball bearing puller
Information
Information 1908216 Gedore 8011350 Ball bearing puller
Description
Features
- For removing ball bearings that are both on a shaft and in a housing
- The legs selected using the table are inserted into the ball race, evenly distributed in the outer ring according to the number of balls
- The support rings supplied for the ball bearings to be removed are placed on the bearings inner races
- The head with spindle is then placed on the centering depression of the shaft and the spindle put under tension with the legs
- Delivery contains head and spindle. Please order suitable legs separately!
