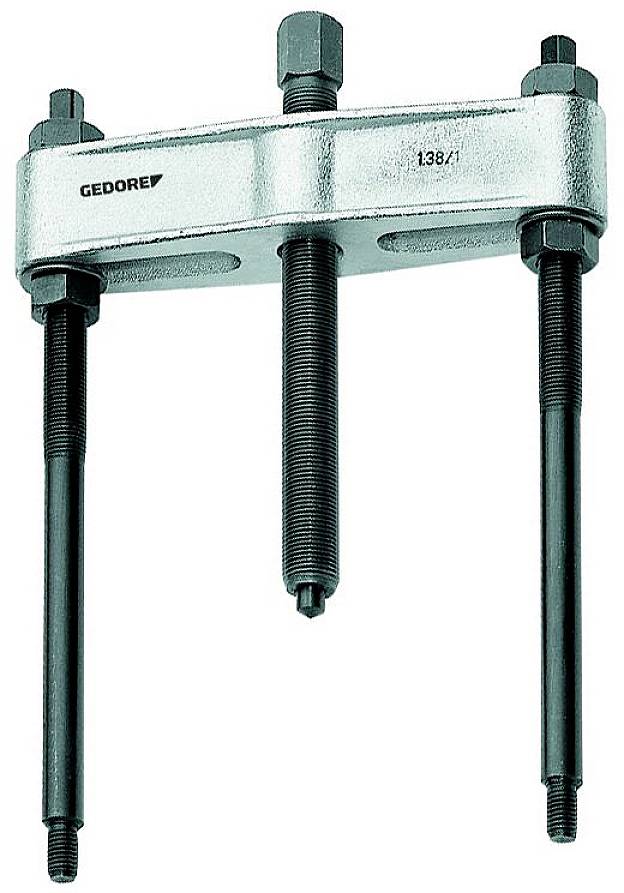

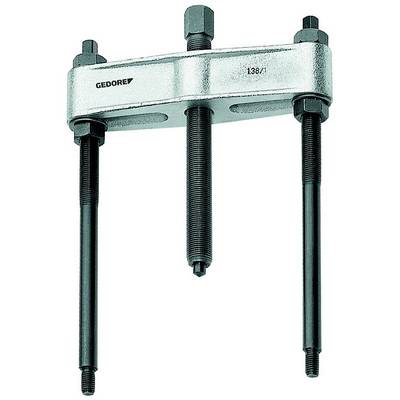

Gedore 8017980 Puller Clamping range (details) 90 - 300 mm
EAN:
Part number:
Item no:
Number
Total (€ 189.07 / piece)
€ 189.07
plus VAT.
Only 6 Piece(s) available
Technical specifications
- Design: Puller
- Connection thread external: M18x1.5 / M20x1.5
- For separation device: 1.40/3
- Key-width actuating head 27 mm
- Clamping depth can be used: 205 mm
- Spindle thread size: G 3/4 x 280
- Clamping range
90 - 300 mm
- Weight
6.5 kg
- Content
1 pc(s)
- Product type
Puller
- Span width (max.)
300 mm
- Span depth (max.)
205 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2451900 Gedore 8017980 Puller Clamping range (details) 90 - 300 mm
Description
These puller devices are used in conjunction with the separators No. 1.40
The tension bolts are screwed into the threaded holes of the cutting blades
This text is machine translated.
The tension bolts are screwed into the threaded holes of the cutting blades
