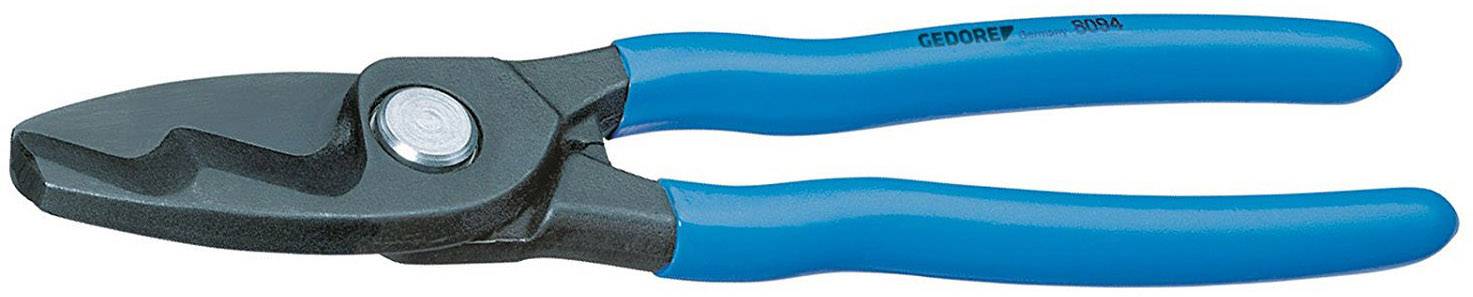

Gedore 8094 6724910 Cable cutting scissors 20 mm 70 mm²
EAN:
Part number:
Item no:
Number
Total (€ 55.45 / piece)
€ 74.78
-26 %
€ 55.45
plus VAT.
Technical specifications
- For cutting multi-wire copper and aluminum cables up to Ø 20 mm;
- When pre-cut and finished cut are used, the diameter increases to Ø 25 mm;
- The grip width remains in the area of ergonomic one-handed operation;
- Pre-cut: Cut the cable jacket with the front cutting edge;
- Finished cut: Place the cable in the rear cutting edge and cut the conductor(s);
- Blades are also induction-hardened
- Precision ground for optimum transmission and novel cutting geometry;
- Adjustable screw joint with clamp protection;
- Not suitable for steel wire or wire ropes
- Special heat-treated steel, forged, browned, with dip-molded grip protection
- Product type
Cable cutting scissors
- Manufacturer part #
6724910
- Length
200 mm
- Material
Special steel
- Wire hardness diameter (max.)
20 mm
- Wire hardness cross section (max.)
70 mm²
- Weight
329 g
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1907698 Gedore 8094 6724910 Cable cutting scissors 20 mm 70 mm²
Information
Information 1907698 Gedore 8094 6724910 Cable cutting scissors 20 mm 70 mm²
Description
Features
- For cutting multi-core copper and aluminium cables up to Ø 20 mm
- When using first and final cuts, the diameter increases to Ø 25 mm
- The handle width remains within the range of ergonomic single-hand operation
- First cut: Use the front blade to cut the cable sheath
- Final cut: Place the cable in the back blade and separate the wire(s)
- Cutting edges additionally inductively hardened
- Precision ground for optimum action, new cutting-edge geometry
- Adjustable screw joint with finger protection
- Not suitable for steel wire or hard-drawn copper wire
- Special hardened and tempered steel, forged, gun-metal finish, with dipped handle grips
