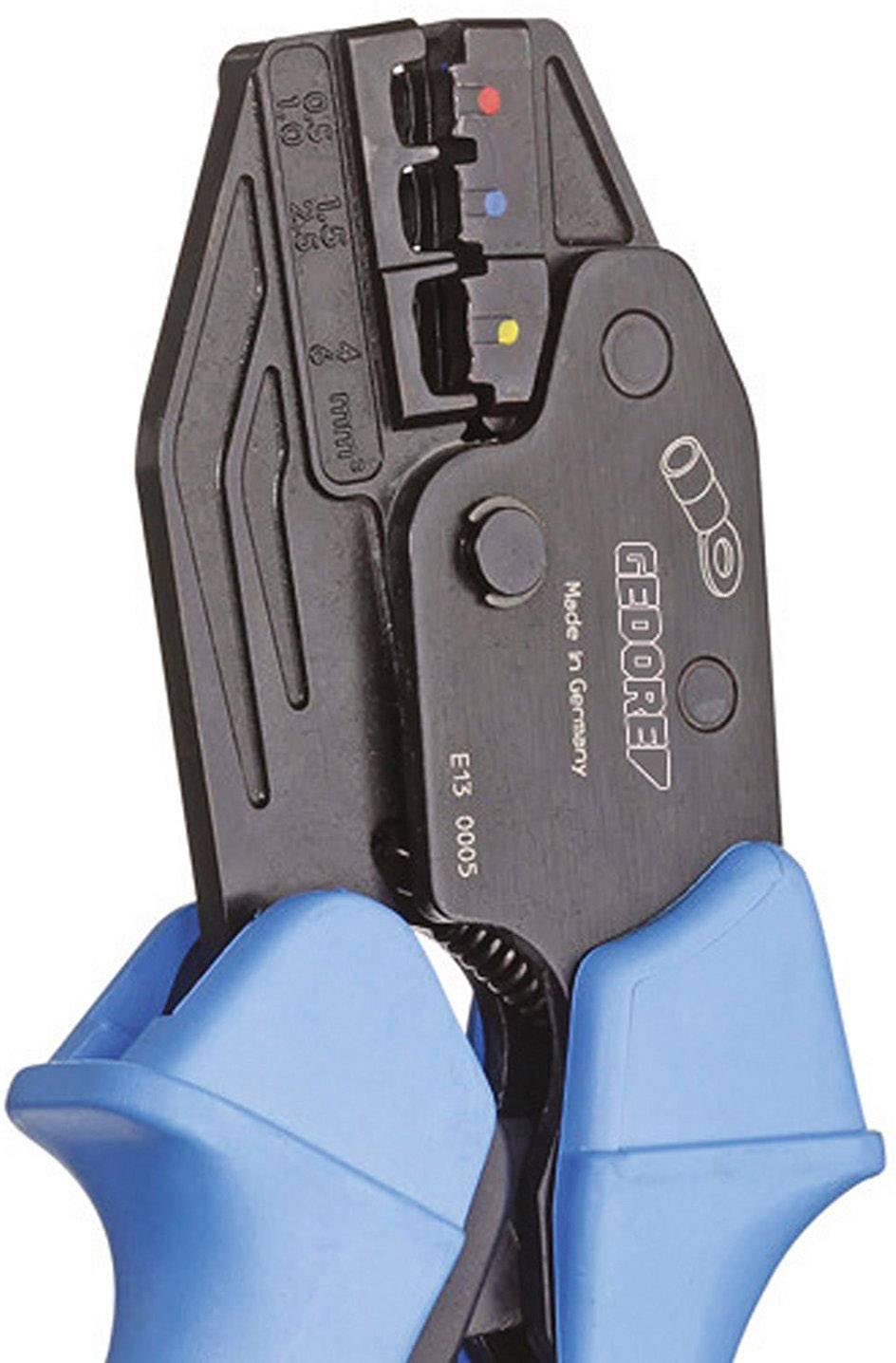

Gedore 8155 2836823 Crimper Insulated parallel splice connectors, Insulated bullet receptacles, Insulated blade terminal
EAN:
Part number:
Item no:
Number
Total (€ 82.34 / piece)
€ 82.34
plus VAT.
Only 8 Piece(s) available
Technical specifications
- For red, blue and yellow insulated connectors, such as connectors, pin connectors, male spade connectors, female spade connectors, round plugs, round tubes, butt connector and parallel connector
- Easy to use
- Releaseable lock system
- Hand sympathetic shaped grips
- GEDORE special steel, burnished.
- Applications:
- Application area: 1:0.5-1.0 mm²/20-18 AWG 2:1.5 - 2.5 mm²/16-14 AWG 3:4.0 - 6.0 mm²/12-10 AWG
- Product type
Crimper
- Manufacturer part #
2836823
- Range of uses
Insulated parallel splice connectors
Insulated bullet receptacles
Insulated blade terminals
Insulated bullet connectors
Insulated pin cable lugs
Insulated butt connectors
Insulated cable lugs
Insulated blade terminal receptacles
- Crimp area
0.5 up to 6.0 mm²
- Crimp area AWG
20 up to 10 awg
- Crimp area (min.)
0.5 mm²
- Crimp area (max.)
6.0 mm²
- Crimp area AWG (min.)
10 awg
- Crimp area AWG (max.)
20 awg
- Length
220 mm
- Material
Steel
- Material properties
burnished
- Width
80 mm
- Weight
555 g
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1907793 Gedore 8155 2836823 Crimper Insulated parallel splice connectors, Insulated bullet receptacles, Insulated blade terminal
Information
Information 1907793 Gedore 8155 2836823 Crimper Insulated parallel splice connectors, Insulated bullet receptacles, Insulated blade terminal
Description
Features
- For red, blue and yellow insulated connectors, such as cable terminals, pin cable terminals, flat plugs, flat sockets, round plugs, round sockets, push connectors and parallel connectors
- Easy to handle
- Releasable positive locking
- Kind-to-hands formed handles
- GEDORE special steel, gun-metal finish
- Field of application: 1: 0.5-1.0 mm2 / 20-18 AWG 2: 1.5-2.5 mm2 / 16-14 AWG 3: 4.0-6.0 mm2 / 12-10 AWG
