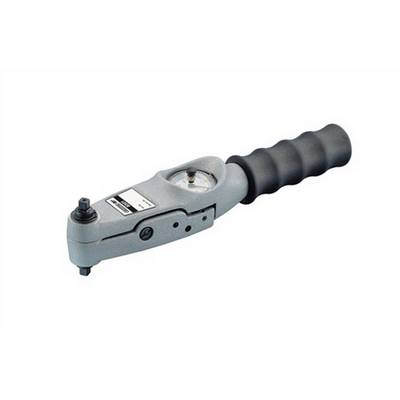

Gedore 8302-08 7651710 Torque wrench Calibrated to (ISO standards) Ratcheting 1/2" (12.5 mm) 16 - 80 Nm
EAN:
Part number:
Item no:
Number
Total (€ 500.00 / piece)
€ 500.00
plus VAT.
14-day return policy included
Technical specifications
- 8302-08 - GEDORE - Torque wrench with drag indicator Type 83 16-80 Nm
- Application:
- Controlled tightening and checking of tightening values
- Application in all industrial production areas
- Design:
- Indicating torque wrench with dial gauge and drag indicator
- 1/4", 3/8", 1/2", 3/4" or 1" double square drive with ball lock for right and left-hand suit
- Models No. 8301-04 to No. 8304-80: With integrated ratchet function
- for controlled screw tightening and torque measurements
- Display accuracy: +/- 4 % Tolerance of displayed value
- Execution according to DIN EN ISO 6789, traceable to national normal
- with double scale in N
- m and lbf
- in or lbf
- ft on double tinted, Easy-to-read dials
- built-in overload protection - mechanical stop up to max. 25 % Overload of the max. value
- Housing made of light, robust special aluminum construction - silver-gray painted
- Black, non-slip rubber grips
- Models No. 8301-04 to No. 8301-40: EPA (Electrostatic Protected Area) compliant,
- for use in electrostatic sensitive applications Model No. 8303-40 to No. 8305-20 have an audio-visual signal as standard for display
- Delivery:
- Clock torque wrench type 83
- battery (model no. 8303-40 to No. 8305-20)
- Test certificate according to DIN EN ISO 6789
- Delivery in robust, black plastic box (No. 8301-04 to 8302-20), otherwise in stable cardboard (No. 8303-40 to 8305-20)
- Product type
Torque wrench
- Features
Ratcheting
- Downforce
1/2" (12.5 mm)
- Torque (min.)
16 Nm
- Torque (max.)
80 Nm
- Trigger accuracy
4 %
- Graduation
2 Nm
- Length
435 mm
- DIN standard
DIN EN ISO 6789
- Weight
2.024 kg
- Height
86 mm
ISO standards
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1909605 Gedore 8302-08 7651710 Torque wrench Calibrated to (ISO standards) Ratcheting 1/2" (12.5 mm) 16 - 80 Nm
Information
Information 1909605 Gedore 8302-08 7651710 Torque wrench Calibrated to (ISO standards) Ratcheting 1/2" (12.5 mm) 16 - 80 Nm
Description
Features
- Use:
- Controlled tightening and verification of tightening values
- For use in all areas of industrial manufacturing and in quality control
- Working ranges of 0.8 to 2000 N
- m are covered Features:
- Dial-indicating torque wrench with dual scale and slave pointer
- 1/4", 3/8", 1/2", 3/4" or 1" double-square drive with ball locking device for controlled bi-directional tightening
- Models 8301-04 to 8304-80: With integrated ratchet-function
- For controlled screw tightening and torque measurements
- Working accuracy: +/- 4 % tolerance of the indicated torque
- Acc. to DIN EN ISO 6789, traceable to national standards
- With dual scale in N
- m and lbf
- in or lbf
- ft double-tinted clearly readable face
- Integrated overload protection - mechanical stop up to max. 25 % overload of the maximum value
- Housing made of lightweight, robust special aluminium construction - lacquered, silver-grey
- Black, non-slip rubber handgrips
- Models 8301-04 to 8301-40: EPA-conformant (Electrostatic Protected Area), for use in sensitive electrostatic applications
- Audio-visual signal is standard on models 8303-40 to 8305-20 Scope of delivery:
- Dial-measuring torque wrench type 83
- Battery (models 8303-40 to 8305-20)
- Test certificate acc. to DIN EN ISO 6789
- Delivered in a sturdy black plastic box (no. 8301-04 to 8302-20), otherwise in sturdy cardboard packaging (no. 8303-40 to 8305-20)
