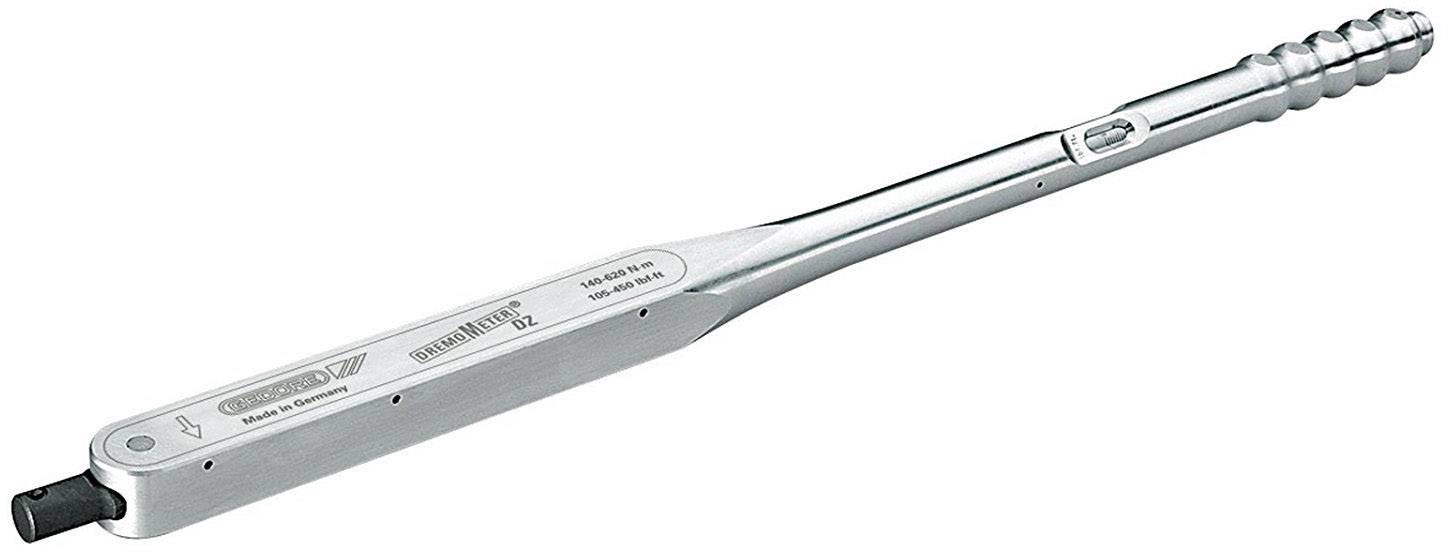

Gedore 8463-10 7703020 Torque wrench Calibrated to (DAkkS standards) For socket bits 140 - 620 Nm
EAN:
Part number:
Item no:
Number
Total (€ 1,024.37 / piece)
€ 1,024.37
plus VAT.
14-day return policy included
Technical specifications
- 8463-10 - GEDORE - torque wrench DREMOMETER DZ 22Z 140-620 Nm
- classified according to DIN EN ISO 6789:2003 Type II Class A, with a traceable factory certificate. Calibrated for a permissible deviation of +/- 3 % and better. The specification of the standard (+/- 4%) is easily exceeded for your safety
- , but robust (since housing made from one piece of aluminum) and insensitive, very workshop-friendly
- depending on the tool use can be both forward (e.g. Socket wrench) or to the side (e.g. Change over ratchet and socket wrench insert),
- operation only at the handle center - do not use an extension tube, otherwise value shifts may occur (except for DXZ model - here the DREMMETER was calibrated and adjusted with the extension tube.)
- Actuation only with push-on tools with a uniform pitch - otherwise, value shifts may occur. Note the stitch dimension on the certificate. Only use GEDORE Original accessories
- Large tool holder cross-section of the pin transfers the greatest torques
- extremely low wear due to the reduction of the leverage mechanism
- Forged lever chain from the company's own quality forge
- highest precision even in strong continuous use
- Long life and long service life
- Easy operation - Fast and safe torque tightening
- Pleasant adjustment through shapely, Captive adjustment button at the end of the handle
- with certificate according to DIN EN ISO 6789, traceable to the national standard via company-owned DAkkS laboratory
- Product type
Torque wrench
- Features
For socket bits
- Torque (min.)
140 Nm
- Torque (max.)
620 Nm
- Trigger accuracy
3 %
- Graduation
10 Nm
- Length
846 mm
- DIN standard
DIN EN ISO 6789-2:2017
- Width
45 mm
DAkkS standards
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1908507 Gedore 8463-10 7703020 Torque wrench Calibrated to (DAkkS standards) For socket bits 140 - 620 Nm
Information
Information 1908507 Gedore 8463-10 7703020 Torque wrench Calibrated to (DAkkS standards) For socket bits 140 - 620 Nm
Description
Features
- Classified to DIN EN ISO 6789:2017 Type II Class A, with a factory certificate. Working accuracy: +/- 3 % tolerance of scale set torque. The specification of the standard (+/- 4 %) is exceeded.
- Lightweight yet robust (as the housing is made of an aluminium alloy) and resilient, very workshop-friendly
- Depending on the application, access is possible from the front (e.g. open-end fitting) or side (e.g. reversible ratchet and socket)
- Force to be applied in the middle of the handgrip only - do not use an extension tube as otherwise, inaccuracies can evolve (except for model DXZ where the DREMOMETER has been calibrated and adjusted using the extension tube)
- Operation only with end fittings with standardised depth gauges, otherwise inaccuracies can arise. Keep the depth gauges on the certificate in mind. Only use original GEDORE accessories.
- Large drive cross-section transfers maximum torques
- Extremely low wear attributable to reduced forces in the lever mechanism
- Forged lever chain from our own quality forge
- Maximum precision even when subjected to extreme continuous use
- Long life cycles and tool lives
- Easy operation - fast and safe torque tightening
- Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle
- With certificate acc. to DIN EN ISO 6789, traceable via in-house DAkkS laboratory to national standards
