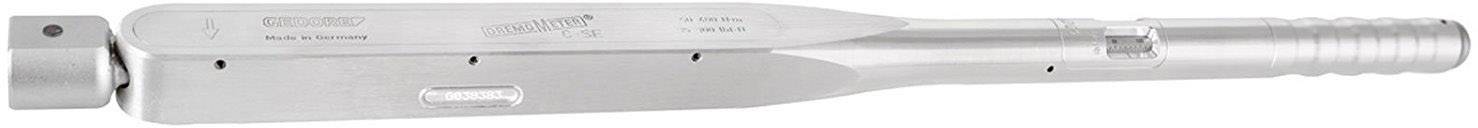

Gedore 8482-01 7714220 Torque wrench 14 x 18 mm socket square 80 - 400 Nm
EAN:
Part number:
Item no:
Number
Total (€ 587.39 / piece)
€ 587.39
plus VAT.
14-day return policy included
Technical specifications
- 8482-01 - GEDORE - torque wrench DREMOMETER C-SE 14x18 80-400 Nm
- classified according to DIN EN ISO 6789:2003 Type II Class A, with a traceable factory certificate. Calibrated for a permissible deviation of +/- 3 % and better. The specification of the standard (+/- 4%) is exceeded
- for your safety easily, however robust (since housing made from one piece of aluminum) and insensitive, very workshop-friendly
- tool holder offers extensive accessory program
- depending on the tool application can be both forward (e.g. Open-end wrenches) or to the side (e.g. Change-over ratchet and socket wrench insert)
- , operation only at the handle center - do not use an extension tube, otherwise values may be shifted
- . Operation only with plug-in tools - otherwise, value shifts may occur. Note the stitch dimension on the certificate. Only GEDORE Original accessories use
- extremely low wear due to the reduction of the leverage mechanism
- forged lever chain from the Group's own quality forge
- highest precision even in heavy use long
- life and long service life
- simple operation - fast and safe torque tightening
- pleasant setting through shapely, captive adjustment button at the end of the handle
- with certificate according to DIN EN ISO 6789, Traceable to the National Standard via company-owned DAkkS laboratory
- Product type
Torque wrench
- Downforce
14 x 18 mm socket square
- Torque (min.)
80 Nm
- Torque (max.)
400 Nm
- Graduation
5 Nm
- Length
653 mm
- Width
35 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1908511 Gedore 8482-01 7714220 Torque wrench 14 x 18 mm socket square 80 - 400 Nm
Information
Information 1908511 Gedore 8482-01 7714220 Torque wrench 14 x 18 mm socket square 80 - 400 Nm
Description
Features
- Classified to DIN EN ISO 6789:2017 Type II Class A, with a factory certificate. Working accuracy: +/- 3% tolerance of scale set torque. The specification of the standard (+/- 4%) is exceeded.
- Lightweight yet robust (as the housing is made of an aluminium alloy) and resilient, very workshop-friendly
- Drive offers extensive range of accessories
- Depending on the application, access is possible from the front (e.g. rectangular open-end fitting) or side (e.g. reversible ratchet and socket)
- Force to be applied in the middle of the handgrip only - do not use an extension tube as otherwise, inaccuracies can arise
- Operation only with end fittings otherwise inaccuracies can arise. Keep the depth gauges on the certificate in mind. Only use original GEDORE accessories.
- Extremely low wear attributable to reduced forces in the lever mechanism
- Forged lever chain from our own quality forge
- Maximum precision even when subjected to extreme continuous use
- Long life cycles and tool lives
- Easy operation - fast and safe torque tightening
- Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle
- With certificate acc. to DIN EN ISO 6789, traceable via in-house DAkkS laboratory to national standards
