Gedore ADS 40 F 3108538 Torque wrench Calibrated to (ISO standards) Ratcheting Square, solid, 10 mm (3/8") 8 - 40 Nm
EAN:
Part number:
Item no:
Number
Total (€ 360.50 / piece)
€ 360.50
plus VAT.
Technical specifications
- Drive type/drive: Double square
- Tightening direction: Left and right
- Material: Aluminum housing, steel pipe handle bar
- Scale type: dual
- Product type
Torque wrench
- Features
Ratcheting
- Downforce
Square, solid, 10 mm (3/8")
- Torque (min.)
8 Nm
- Torque (max.)
40 Nm
- Trigger accuracy
0.04 %
- Length
120 mm
- DIN standard
DIN EN ISO 6789
- Weight
0.52 kg
ISO standards
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2451271 Gedore ADS 40 F 3108538 Torque wrench Calibrated to (ISO standards) Ratcheting Square, solid, 10 mm (3/8") 8 - 40 Nm
Description
Application:
Checked tightness and check tightening values
Used in all industrial production areas
Working ranges from 0.8 - 200 N.·m / 7 lbf·in - 160 lbf·ft are covered
Construction:

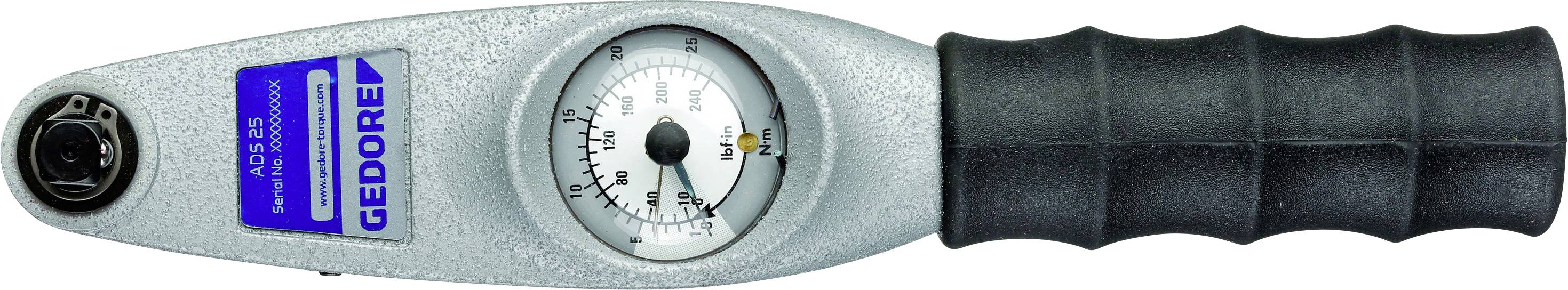

Indicator torque wrench with dial gauge and drag indicator
1/4", 3/8", or 1/2" double square drive with ball lock for controlled right and left suit
Models No. Ads 4 to No. Ads 40: With integrated ratchet function
For controlled screw tightening and torque measurements
Display accuracy: +/- 4% tolerance of the displayed value
Design according to DIN EN ISO 6789, traceable to national standard
With double scale in N.·m and lbf·in or lbf·ft on double-tinted, easy-to-read dials
Built-in overload protection - mechanical stop up to max. 25 % Overload of max. value
Housing made of light, robust special aluminum construction - painted silver-gray
Black, non-slip rubber grips
Models No. Ads 4 to No. Ads 40: EPA (Electrostatic Protected Area) compliant, for use in electrostatically sensitive applications
Test certificate according to DIN EN ISO 6789
