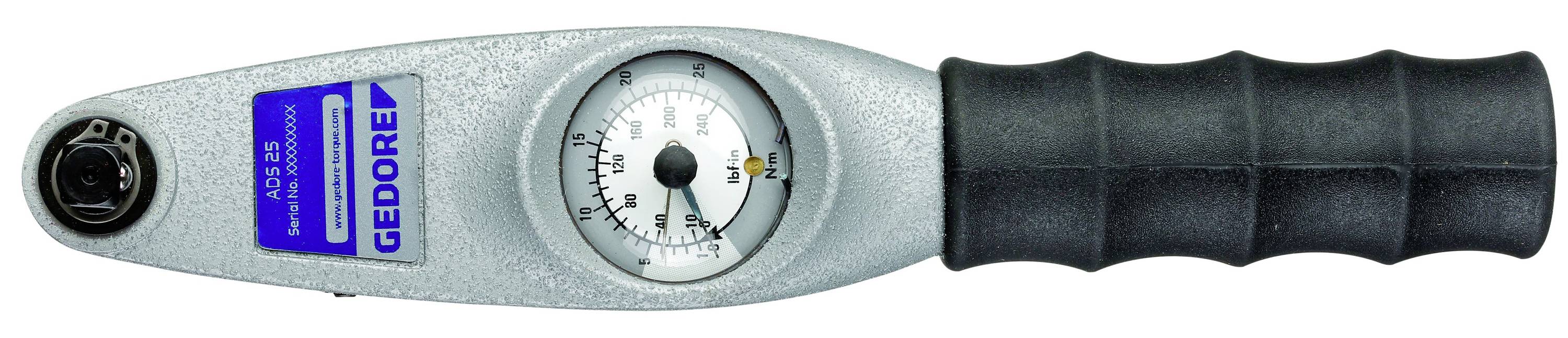

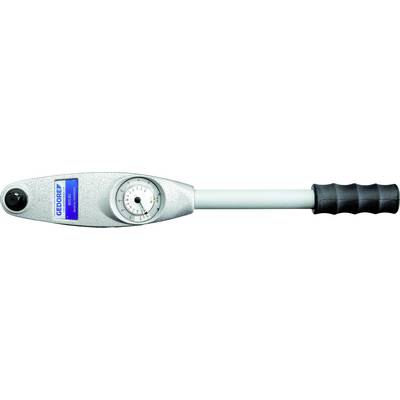

Gedore ADS 40 S 3108511 Torque wrench Calibrated to (ISO standards) Ratcheting 3/8" (10 mm) 8 - 40 Nm
EAN:
Part number:
Item no:
Number
Total (€ 461.34 / piece)
€ 461.34
plus VAT.
14-day return policy included
Technical specifications
- Drive type/drive: Double square
- Tightening direction: Left and right
- Material: Aluminum housing, steel pipe handle bar
- Scale type: dual
- Product type
Torque wrench
- Features
Ratcheting
- Downforce
3/8" (10 mm)
- Torque (min.)
8 Nm
- Torque (max.)
40 Nm
- Trigger accuracy
0.04 %
- Length
120 mm
- DIN standard
DIN EN ISO 6789
- Weight
0.52 kg
ISO standards
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2451269 Gedore ADS 40 S 3108511 Torque wrench Calibrated to (ISO standards) Ratcheting 3/8" (10 mm) 8 - 40 Nm
Description
Application:
Checked tightness and check tightening values
Used in all industrial production areas
Working ranges from 0.8 - 2000 N.·m / 7 lbf·in - 1500 lbf·ft are covered
Construction:
Indicator torque wrench with dial gauge and drag indicator
1/4", 3/8", 1/2", 3/4" or 1" double square drive with ball lock for controlled right and left suit
Models No. Ads 4 to No. Ads 40: With integrated ratchet function
For controlled screw tightening and torque measurements
Display accuracy: +/- 4% tolerance of the displayed value
Design according to DIN EN ISO 6789, traceable to national standard
With double scale in N.·m and lbf·in or lbf·ft on double-tinted, easy-to-read dials
Built-in overload protection - mechanical stop up to max. 25 % Overload of max. value
Housing made of light, robust special aluminum construction - painted silver-gray
Black, non-slip rubber grips
Models No. Ads 4 to No. Ads 40: EPA (Electrostatic Protected Area) compliant, for use in electrostatically sensitive applications
With audio-visual signal
Test certificate according to DIN EN ISO 6789
This text is machine translated.
Checked tightness and check tightening values
Used in all industrial production areas
Working ranges from 0.8 - 2000 N.·m / 7 lbf·in - 1500 lbf·ft are covered
Construction:
Indicator torque wrench with dial gauge and drag indicator
1/4", 3/8", 1/2", 3/4" or 1" double square drive with ball lock for controlled right and left suit
Models No. Ads 4 to No. Ads 40: With integrated ratchet function
For controlled screw tightening and torque measurements
Display accuracy: +/- 4% tolerance of the displayed value
Design according to DIN EN ISO 6789, traceable to national standard
With double scale in N.·m and lbf·in or lbf·ft on double-tinted, easy-to-read dials
Built-in overload protection - mechanical stop up to max. 25 % Overload of max. value
Housing made of light, robust special aluminum construction - painted silver-gray
Black, non-slip rubber grips
Models No. Ads 4 to No. Ads 40: EPA (Electrostatic Protected Area) compliant, for use in electrostatically sensitive applications
With audio-visual signal
Test certificate according to DIN EN ISO 6789
This text is machine translated.
