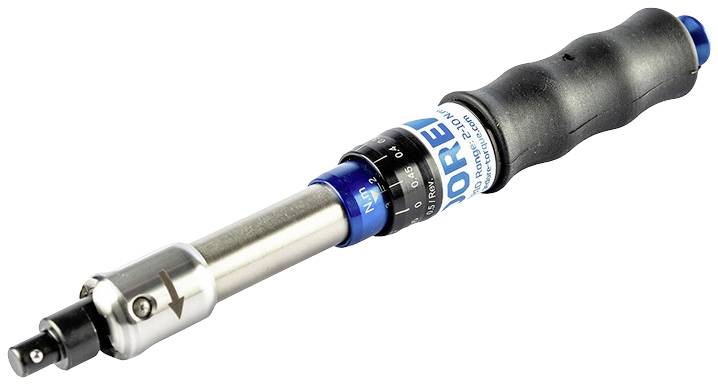

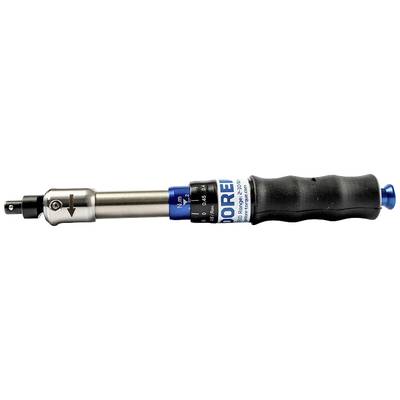

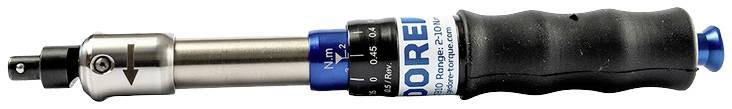

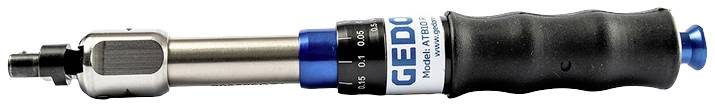

Gedore ATB 10 ATB 10 Torque wrench 5/16" (8 mm) 2 - 10 Nm
EAN:
Part number:
Item no:
Highlights & Details
Kink torque wrench With scale 2-10 Nm
- Type ATB 2.5 to ATB 10 with 8 mm hook-on pin
- Type ATB 25 to ATB 100 with 16 mm pin attachment Incl. Ratchet
- With micrometer scale that allows the desired value to be set easily and safely.
Technical specifications
- Product type
Torque wrench
- Downforce
5/16" (8 mm)
- Torque (min.)
2 Nm
- Torque (max.)
10 Nm
- Trigger accuracy
4 %
- Length
220 mm
- Weight
0.3 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3220616 Gedore ATB 10 ATB 10 Torque wrench 5/16" (8 mm) 2 - 10 Nm
Description
Type ATB 2.5 to ATB 10 with 8 mm hook-on pin. Type ATB 25 to ATB 100 with 16 mm push-on pin including hook-in ratchet. With micrometer scale that allows the desired value to be set easily and safely. With adjustment lock to prevent unintended adjustment of the torque value. Trigger accuracy: +/- 4% tolerance of set value (ATB 2.5; ATB 5; ATB 10 +/- 6% tolerance). If the hand grip does not bend down to 20° when the torque value is reached, this makes it unlikely that it will be over. Classified according to DIN EN ISO 6789 Type II Class A
This text is machine translated.
This text is machine translated.
Features
- With adjustment lock to prevent unintended adjustment of the torque value
- Trigger accuracy: +/- 4% tolerance of set value (ATB 2.5; ATB 5; ATB 10 +/- 6% tolerance)
- If the hand grip does not bend down to 20° when the torque value is reached, this makes it unlikely that it will be over
- Classified according to DIN EN ISO 6789 Type II Class A
Scope of delivery
- Kink torque wrench With scale 2-10 Nm
