Gedore CH 5 3124053 Torque tester 1/4" (6.3 mm)
EAN:
Part number:
Item no:
Number
Total (€ 3,957.14 / piece)
€ 3,957.14
plus VAT.
Technical specifications
- Resolution: 0.0001
- Actuation direction: Right
- Material: Aluminum housing
- Interface: USB
- Product type
Torque tester
- Downforce
1/4" (6.3 mm)
- Torque (min.)
0.5 Nm
- Torque (max.)
5 Nm
- Trigger accuracy
0.01 %
- Length
200 mm
- Weight
0.5 kg
- Width
110 mm
- Height
50 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2452016 Gedore CH 5 3124053 Torque tester 1/4" (6.3 mm)
Description

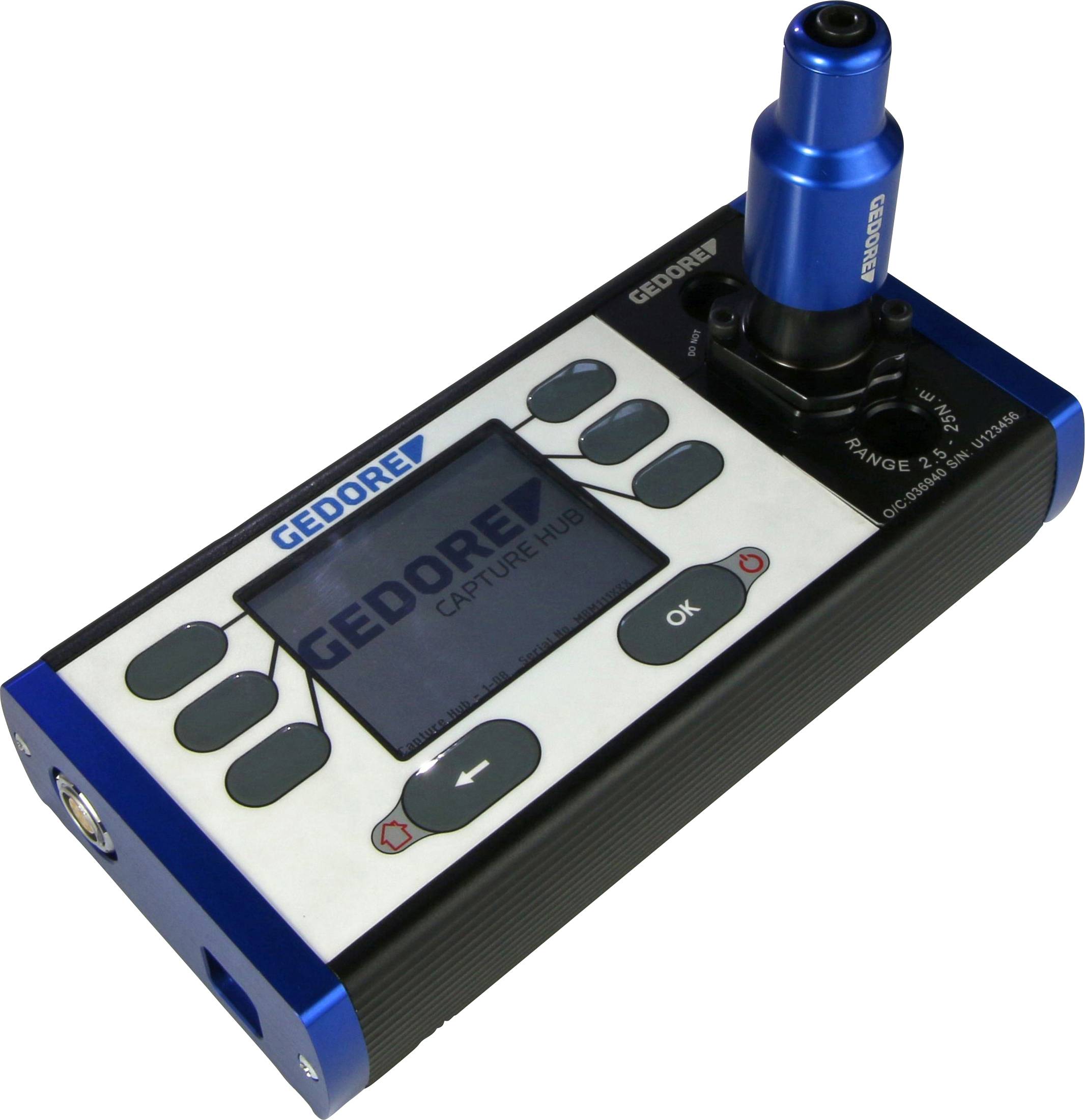

Digital torque tester for testing torque wrenches and torque screwdrivers

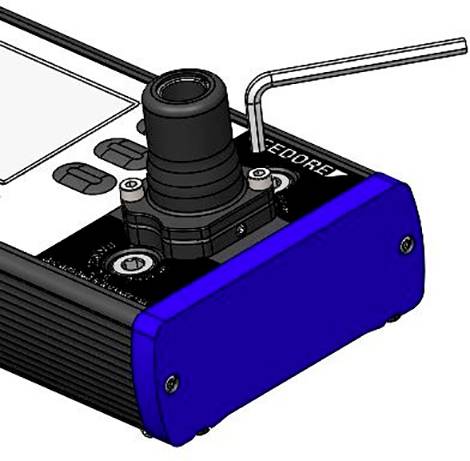

Light and robust thanks to aluminum base housing, horizontal and vertical mounting possible
4 models in the range of 0.1 - 25 N.·m
With 1/4" square attachment (CH25 with 3/8")
Measurement tolerance +/- 1% for all readings
4 measurement modes: Floating value display (track), break point detection (first peak), peak value measurement (peak), screwdriver test
Incl. screw-case simulator attachment for testing screwdrivers
Switchable units N.·m, CN·m, lbf·ft, lbf·in, ozf·in
50 test sequences can be programd
2000 measured values can be stored
Clear and high-contrast TFT display
Can be extended by an additional capture sensor (connection socket available)
Powerful lithium-ion battery for working independant of mains power
Data output and mains operation via USB connection
Optional: PC evaluation software "Capture Manager" (2908778)
Delivery scope
Capture Hub
Screw-fall simulator
USB cable
Power supply with Euro plug
User manual
Proof certificate
Sturdy plastic case with insert
