Gedore DVI-28Z 2653273 Torque wrench For socket bits 2800 Nm (max)
EAN:
Part number:
Item no:
Number
Total (€ 1,466.39 / piece)
€ 1,466.39
plus VAT.
Technical specifications

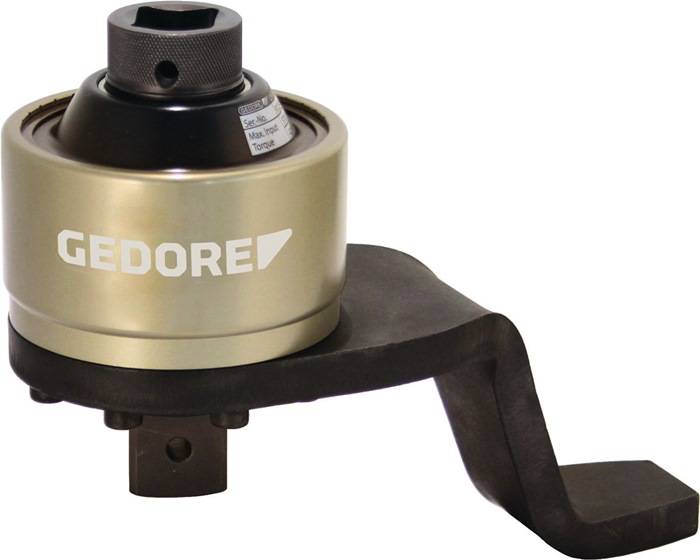

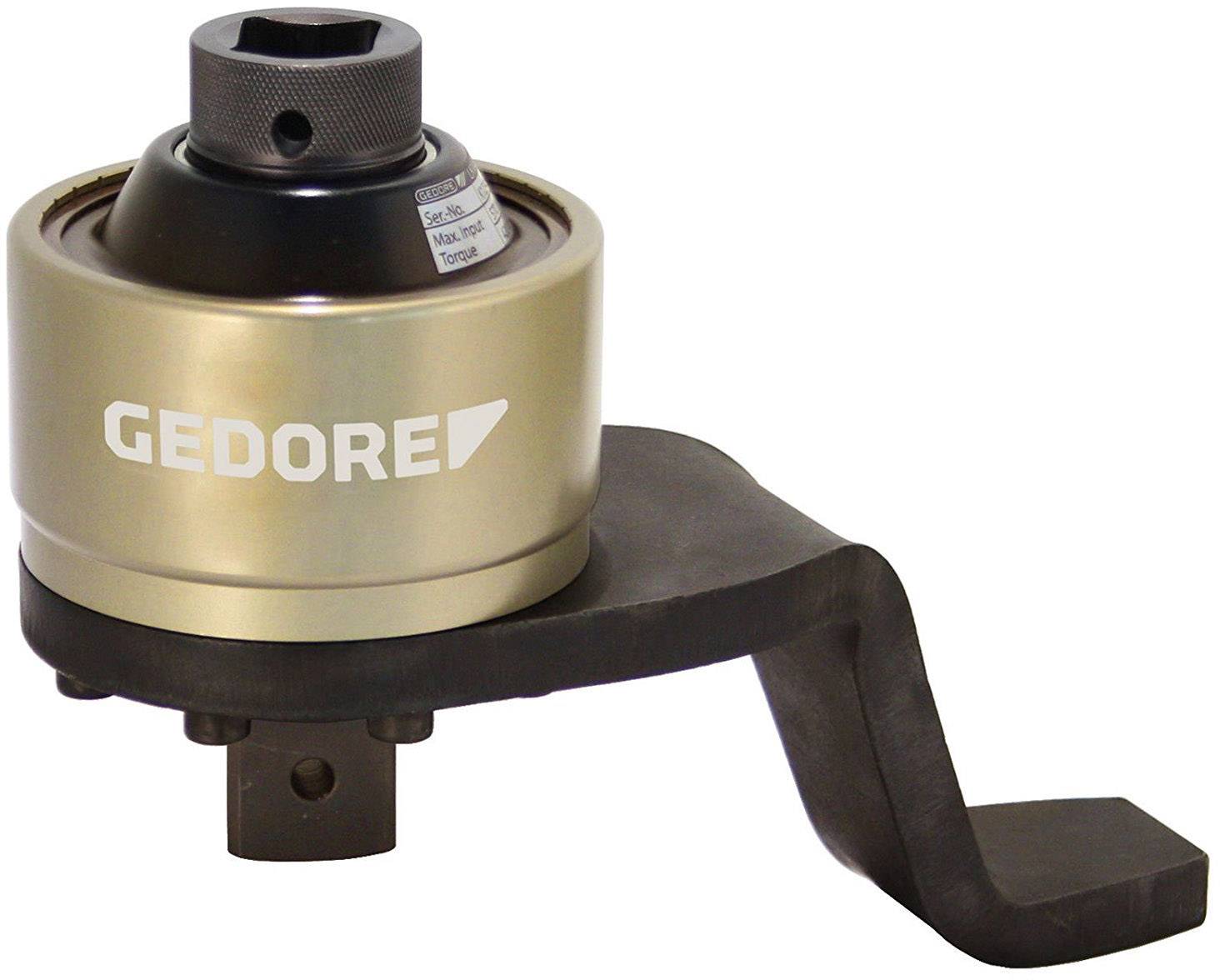

- DVI-28Z - GEDORE - torque multiplier DREMOPLUS ALU 2800 Nm
- particularly suitable for:
- Industry, construction sites, commercial and automotive workshops, agricultural technology, construction machines
- bridge, ship, aircraft, railway, refineries
- machine and plant engineering, maintenance
- design:
- Mechanical, hand-operated torque multiplier for the controlled screw suit and for loosening screw connections
- with single-stage planetary gear
- Housing from high-performance aluminum
- Models
- with 1:4 ratio, 1:5.5 guaranteed accuracy: Better than +/- 3 % tolerance
- to operate in conjunction with a torque wrench
- 2 models with maximum load in the range of max. 2000 N
- m to 2800 N
- m
- Model -Z: With offset reaction arm Z-shape made of chrome-vanadium steel
- Model -L: With straight reaction arm L-shape, with adjustable reaction square, made of light metal
- Output square with bore for power screwdriver inserts with locking pin and ring
- Delivery:
- Torque-versatile DREMOPLUS ALU
- with model-dependant, firmly integrated, reaction arm in Z-shape or L-form
- Delivery in sturdy transport case with foam insert
- Factory test certificate and setting table
- Technical detailed information is available on request
- Product type
Torque wrench
- Features
For socket bits
- Torque (max.)
2800 Nm
- Trigger accuracy
3 %
- Length
230 mm
- Weight
6.1 kg
- Width
106 mm
Manufacturer's standards (with certificate)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1908769 Gedore DVI-28Z 2653273 Torque wrench For socket bits 2800 Nm (max)
Information
Information 1908769 Gedore DVI-28Z 2653273 Torque wrench For socket bits 2800 Nm (max)
Description
Features
- Particularly suitable for:
- Industry, construction sites, car and truck garages, agricultural technology, construction machinery
- Bridge, aircraft and railway construction, shipbuilding, refineries
- Machinery and plant engineering, maintenance Features:
- Mechanical hand torque multiplier for controlled screw tightening and unloosening screw connections
- With a single-stage planet gear
- High-performance aluminium housing
- Multiplication at the ratio of 1:4, 1:5.5
- Guaranteed accuracy: Better than +/- 3 % tolerance
- For operation in combination with a torque wrench
- 2 models for maximum load in the range between max. 2000 N
- m and 2800 N
- m
- Z model: with Z-form, offset reaction arm of chrome-vanadium steel
- L model: with L-form straight reaction arm - with adjustable reaction square - of lightweight metal
- Output square with drill hole for impact sockets with safety pin and ring Scope of delivery:
- Torque Multiplier DREMOPLUS ALU
- With firmly integrated reaction arm of an Z- or L-form depending on model
- Delivery in sturdy shipping case with foam insert
- Factory test certificate and setting table
- Detailed technical information is available on request
