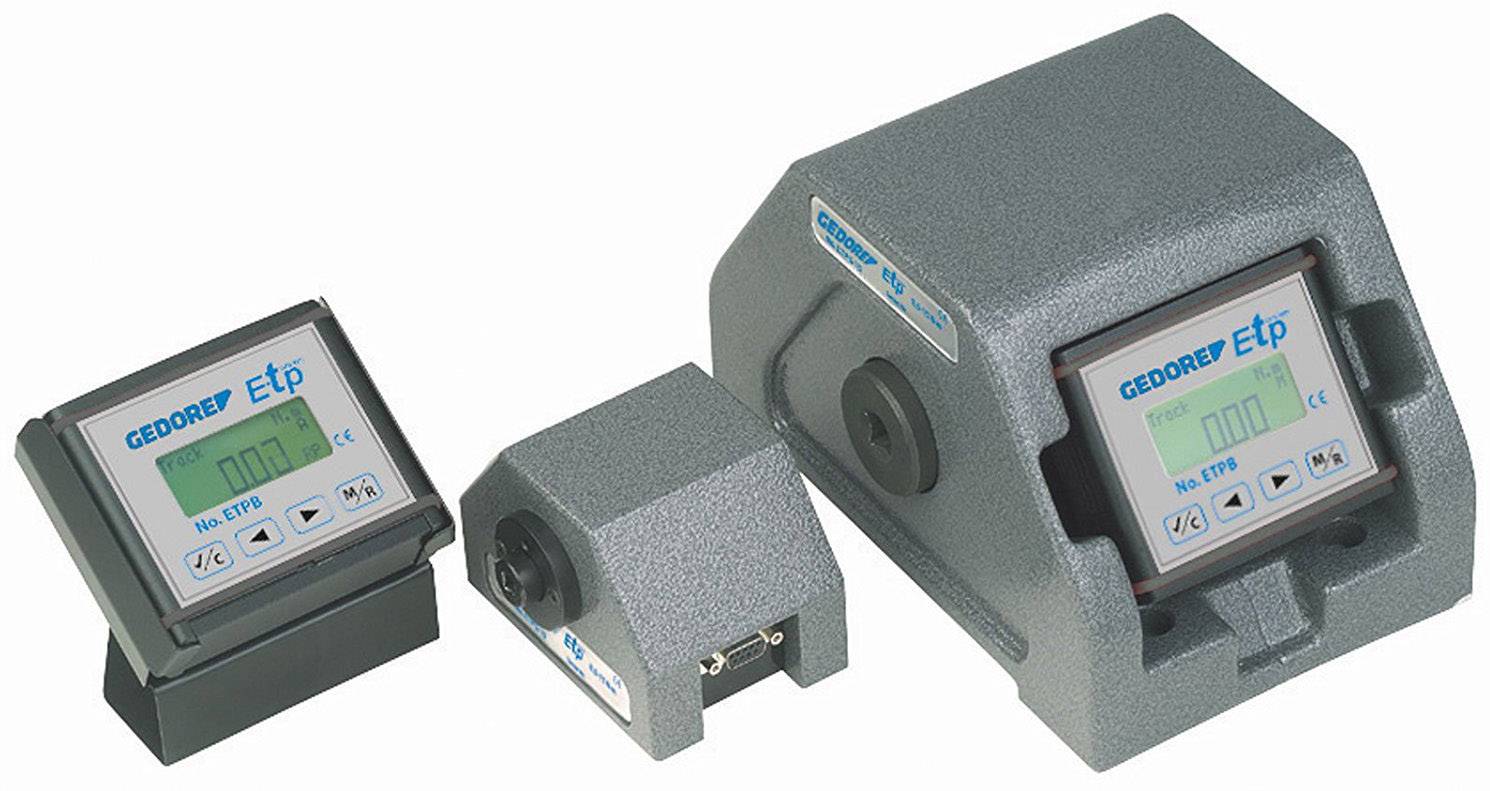

Gedore ETP 500 2795728 Tester Calibrated to (DAkkS standards)
EAN:
Part number:
Item no:
Number
Total (€ 3,903.36 / piece)
€ 3,903.36
plus VAT.
14-day return policy included
Technical specifications
- For testing, adjusting and certifying right and left-hand torque wrenches
- vertical or horizontal testing according to DIN EN ISO 6789
- Electronic test device with integrated measuring electronics
- stable basic casing made of aluminum casting (except No. ETP3150) with separate or removable operating display
- serial interface RS232 for PC
- traceable to national normal
- no. ETP 15 with overload protection and tool for manual resetting after unwanted overload
- Reading accuracy Torque +/- 1 %, +/- 1 digit from the reading
- Factory certificate according to VDI 2646
- Optional certificate according to DAkkS-DKD-R 3-8
- large LC graphic display
- large measuring range in N
- m, can be switched to CN
- m, lbf
- ft or lbf
- in (dependant)
- power supply with Euro plug
- (UK, US, OFF-adapter on request) Delivery scope: Operating display, display holder incl. cable, software incl. PC connection cable
- Product type
Tester
- Torque (min.)
20 Nm
- Torque (max.)
4000 Nm
- Trigger accuracy
1 %
- Length
245 mm
- DIN standard
DIN EN ISO 6789
- Weight
11.27 kg
- Width
159 mm
- Height
148 mm
DAkkS standards
- Factory colour
Clear
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1908376 Gedore ETP 500 2795728 Tester Calibrated to (DAkkS standards)
Information
Information 1908376 Gedore ETP 500 2795728 Tester Calibrated to (DAkkS standards)
Description
Features
- For testing, and verifying clockwise and anti-clockwise torque wrenches
- 5 models in the range of 0.5 to 3150 N
- m
- Vertical and horizontal testing according to DIN EN ISO 6789
- Electronic torque tester integrated with measurement electronics
- Robust housing from aluminium cast (except ETP 3150) with separate or detachable operating display
- Serial interface RS232 for PC
- Traceable to national standards
- ETP 15 with integrated overload protection and tool for manual resetting after unintended overload
- Torque reading precision +/- 1 %, +/- 1 digit from reading figure
- Factory certificate based on VDI 2646
- Optional certificate as per DAkkS-DKD-R 3-8
- A large LC graphic display
- Wide measuring range in N
- m, can be switched to cN
- m, lbf
- ft or lbf
- in (model dependant)
- Power supply unit with EURO plug (UK, US, AUS-adaptor on request)
- Accessories: Operating display, display holder incl. cable, software incl. connection cable for PC
